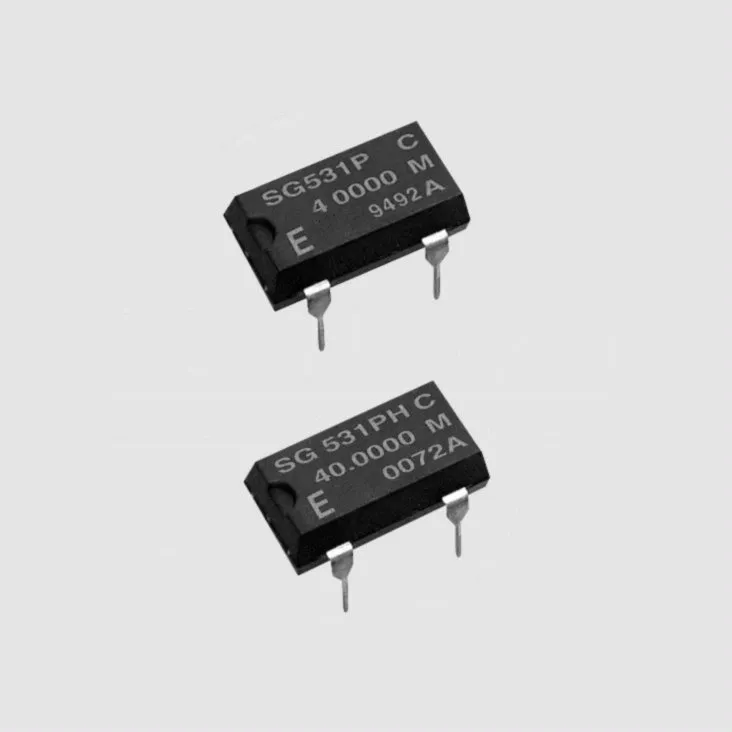

Oscillator 40MHz DIL8 CMOS
Varenummer:
86-082
Varekode:
QOS040D8
Vægt:
0 g
Lagerstatus:
Ikke på lager
| Features |
| • Suitable for CMOS/TTL or CMOS • Cylindrical AT-cut crystal unit built-in, thus assuring high reliability • Use of CMOS OC enable reduction of current consumption • Output with "stand-by" function |
 |
| Technical Specifications |
| ||
| � | SG-531P | SG-531PH |
| Frequency Range [MHz]: | 1,8432...24 | 30...48 |
| Frequency Stability [ppm]: | �100 | �100 |
| Operating Voltage [VDD]: | 5�0,5 | 5�0,5 |
| Max. Supply Voltage [VDD-GND]: | -0,3...+7 | -0,5...+7 |
| Output Voltage | � | � |
| VOH1) [V], Min.: | VDD-0,4. | VDD -0,4min. |
| VOL2) [V], Max.: | 0,4max. | 0,4max. |
| Output Current | � | � |
| IOH1) [mA]: | -0,4 | -4 |
| IOL2) [mA]: | 16 | 4 |
| Temperature Range [°C]: | -20...+70 | -20...+70 |
| Temperature Range [°C]: | -55...+125 | -55...+100 |
| Rise Time/Fall Time [ns]: | 8 | 7 |
| Aging, Max. [ppm/Year]: | 5 | 5 |
| Soldering Temperature, Max.: | �260°C/10s | �260°C/10s |
| Shock Resistance [ppm]: | �20 | �20 |
| Suitable for: | CMOS, TTL | CMOS |
| 1) VOH, IOH ="1"-Level, 2) VOL, IOL = "0"-Level | ||
| ||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.epson-electronics.de |
|
Stregkode:
86082
Intern reference:
86082
Varekode:
QOS040D8
