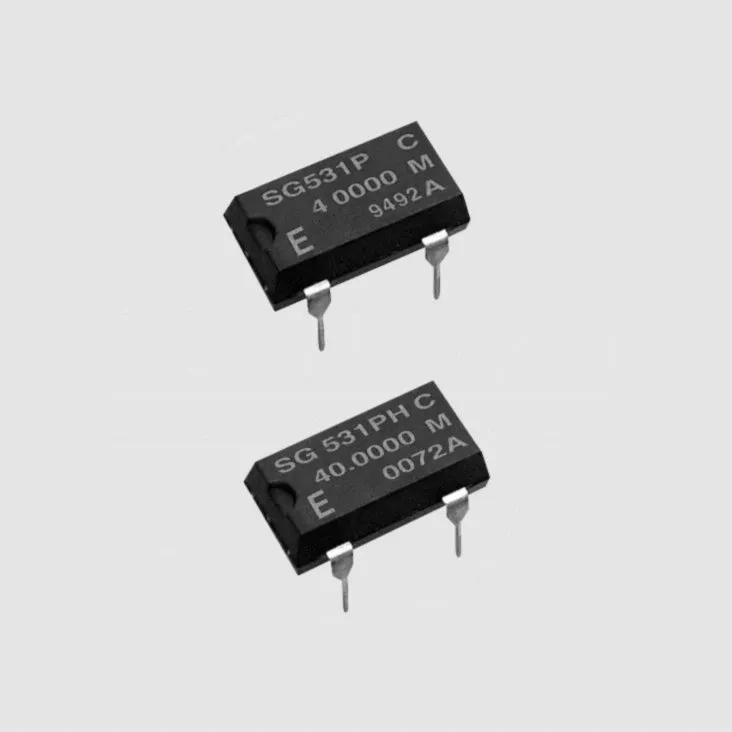

Oscillator 4MHz DIL8 CMOS/TTL
Varenummer:
86-076
Varekode:
QOS004D8
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
D9323
EPSON Crystal Oscillators
Series: SG-531P
In Plastic Housing, CMOS/TTL
Frequency: 1,8432...16MHz
Housing: DIP/DIL8
EPSON Crystal Oscillators
Series: SG-531P
In Plastic Housing, CMOS/TTL
Frequency: 1,8432...16MHz
Housing: DIP/DIL8
| Features |
| • Suitable for CMOS/TTL • Cylindrical AT-cut crystal unit built-in, thus assuring high reliability • Use of CMOS OC enable reduction of current consumption • Output with "stand-by" function |
 |
| Technical Specifications |
| |
| Frequency Range: | 1,8432...16MHz |
| Frequency Stability: | ±100ppm |
| Operating Voltage: | 5±0,5VDD |
| Max. Supply Voltage: | -0,3...+7VDD-GND |
| Output Voltage | |
| VOH1), Min.: | VDD-0,4.V |
| VOL2) , Max.: | 0,4V |
| Output Current | |
| IOH1): | -0,4V |
| IOL2): | 16mA |
| Temperature Range: | -20...+70°C |
| Temperature Range: | -55...+125°C |
| Rise Time/Fall Time: | 8ns |
| Aging, Max.: | 5ppm/Year |
| Soldering Temperature, Max.: | £260°C/10s |
| Shock Resistance: | ±20ppm |
| 1) VOH, IOH ="1"-Level, 2) VOL, IOL = "0"-Level | |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.epson-electronics.de |
|
