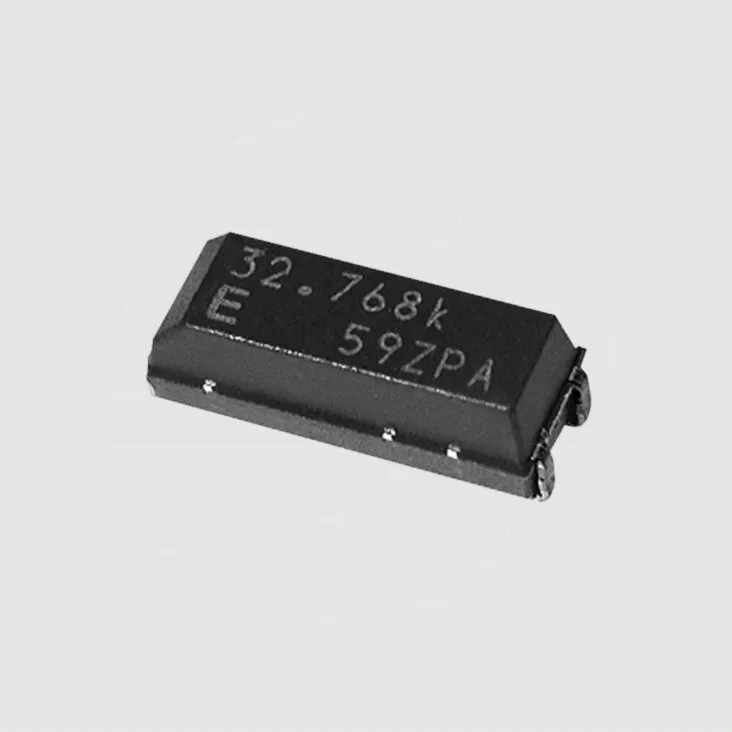

SMD Clock Crystal 32,768kHz 20ppm
Varenummer:
86-051
Varekode:
QK032-SMD
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
D9151
EPSON SMD Clock Crystals
Series: MC405, MC306
Frequency: 32,768kHz
EPSON SMD Clock Crystals
Series: MC405, MC306
Frequency: 32,768kHz
| Technical Specifications |
 | |
| Frequency: | 32.768kHz |
| Frequency Tolerance (TU = 25°C): | ±20ppm |
| Temperature Coefficient, Max.: | -0,04ppm/°C2 |
| Operating Temperature: | -40...+85°C |
| Storage Temperature: | -55...+125°C |
| Insulation Resistance, Min.: | 500MW |
| Drive Level, Max.: | 1,0µW |
| Load Capacitance, Typ.: | 12,5pF |
| Shunt Capacitance, Typ.: | 0,9pF |
| Series Resistance, Max.: | 50kW |
| Aging (TU = 25°C), Max.: | ±3ppm/Year |
| Shock Resistance, Max.: | ±5ppm |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.epson-electronics.de |
|
Stregkode:
86051
Intern reference:
86051
Varekode:
QK032-SMD
