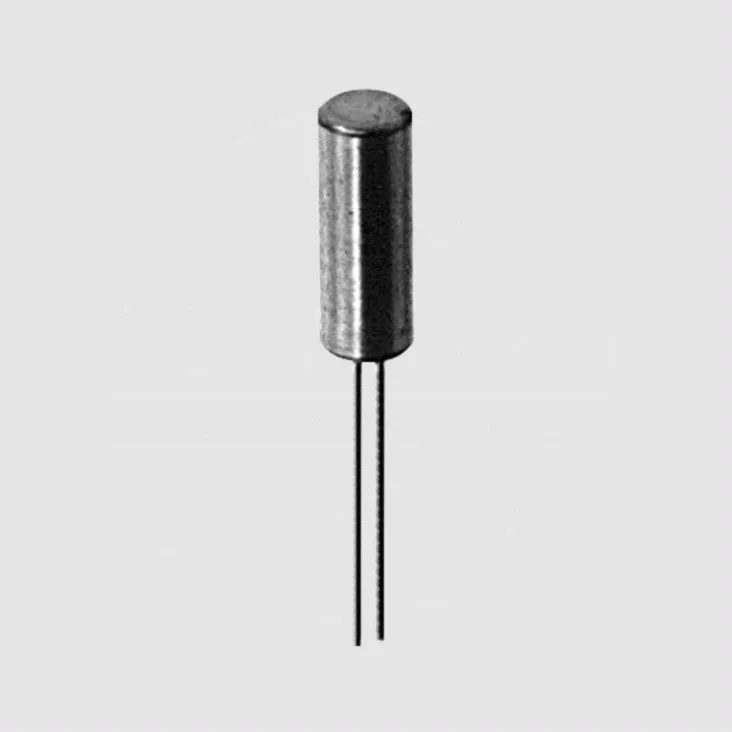

Clock Crystal 32,768kHz 2x6mm 15ppm
Varenummer:
86-049
Varekode:
QK032L6
Vægt:
0 g
Lagerstatus:
Lager: 20 stk.
Gruppe:
D9147
EPSON Clock Crystals
Series: C-002RX, C-001R
Frequency: 32,768kHz
EPSON Clock Crystals
Series: C-002RX, C-001R
Frequency: 32,768kHz
| Technical Specifications |
 | |
| Frequency: | 32.768kHz |
| Frequency Tolerance (TU = 25°C) | |
| QK032L6: | ±15ppm |
| QK032: | ±10ppm |
| Temperature Coefficient, Max.: | -0,04ppm/°C2 |
| Operating Temperature: | -10...+60°C |
| Storage Temperaure: | -20...+70°C |
| Insulation Resistance, Min.: | 500MW |
| Drive Level, Max.: | 1,0µW |
| Aging (TU = +25°C), Max.: | ±3ppm/Year |
| Heat Resistance Soldering: | 280°C, 5s |
| Soldering Condition, Max.: | ±5ppm |
| Shunt Capacitance, Max. | |
| QK032L6: | 0,85pF |
| QK032: | 0,9pF |
| Load Capacitance | |
| QK032L6: | 12,5pF |
| QK032: | 10pF |
| Series Resistance, Max. | |
| QK032L6: | 50kW |
| QK032: | 35kW |
| |
| Dimensions |
| Part Nr. | L1Max. | L2 | D1 Max. | D2 | B |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| QK032L6 | 6,0 | 4,0 (Max.) | Ø 2,0 | Ø0,2 | 0,7 |
| QK032 | 8,0 | 9,0 (Min.) | Ø 3,0 | Ø0,3 | 1,1 |
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.epson-electronics.de |
|
