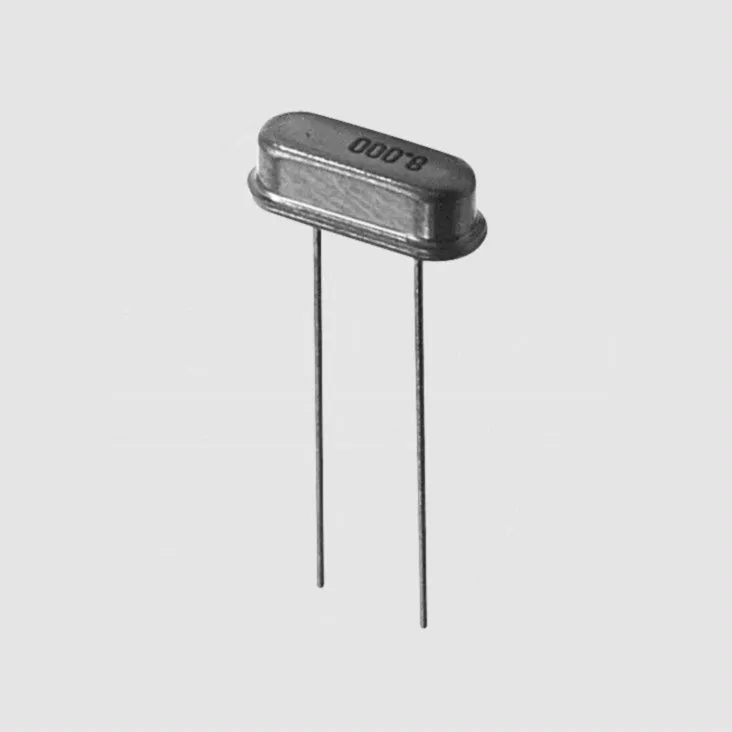

Miniature Crystal 8.000.000Hz

Varenummer:
86-029
Varekode:
QMIM008
Vægt:
0 g
Lagerstatus:
Lager: 11 stk.

kr 7,35 7.3500000000000005 DKK kr 7,35 Inklusiv moms

kr 7,35 Inklusiv moms

Anmod os om en pris

v/10
Kr. 6,56
v/25
Kr. 3,94
v/100
Kr. 2,62

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28990/image_1920?unique=8e16e81 https://elektroniklavpris.odoo.com/web/image/product.template/28990/image_1920?unique=8e16e81
Gruppe: D9113
ABUNDANCE Miniature Quartz Crystals
Series: HC49/U-S
In Metal Housing
Frequency: 3,579...20MHz
Technical Specifications
Temperature Range:
-10...+60°C
Frequency Tolerance (25°C):
±50ppm
Shunt Capacitance, Max.:
7pF
Drive Level:
1,0mW
Insulation Resistance (100V DC):
>500MW
Frequency Stability in Operating Temperature:
±50ppm
Frequency Range (Wave):
Fundamental
Aging:
±5ppm/Year
Part Nr.
Frequency
C
RESR
 [Hz]
[pF]
W
QMIM003.5793.579.545
16
150
QMIM003.6863.686.000
16
150
QMIM0044.000.000
30
150
QMIM004.0964.096.000
30
150
QMIM004.1944.194.304
32
150
QMIM004.4334.433.619
16
150
QMIM004.9154.915.200
16
150
QMIM0055.000.000
30
150
QMIM0066.000.000
30
150
QMIM006.1446.144.000
16
100
QMIM007.3727.372.800
32
90
QMIM0088.000.000
30
90
QMIM009.8309.830.400
30
80
QMIM01010.000.000
30
60
QMIM011.05911.059.200
30
60
QMIM01212.000.000
30
60
QMIM012.28812.228.000
30
60
QMIM01515.000.000
30
40
QMIM01616.000.000
30
40
QMIM02020.000.000
30
40
C = Load Capacitance, RESR = Resistance of Series Resonance, Max.
Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer
Abundance
http://www.aeccrystal.com
