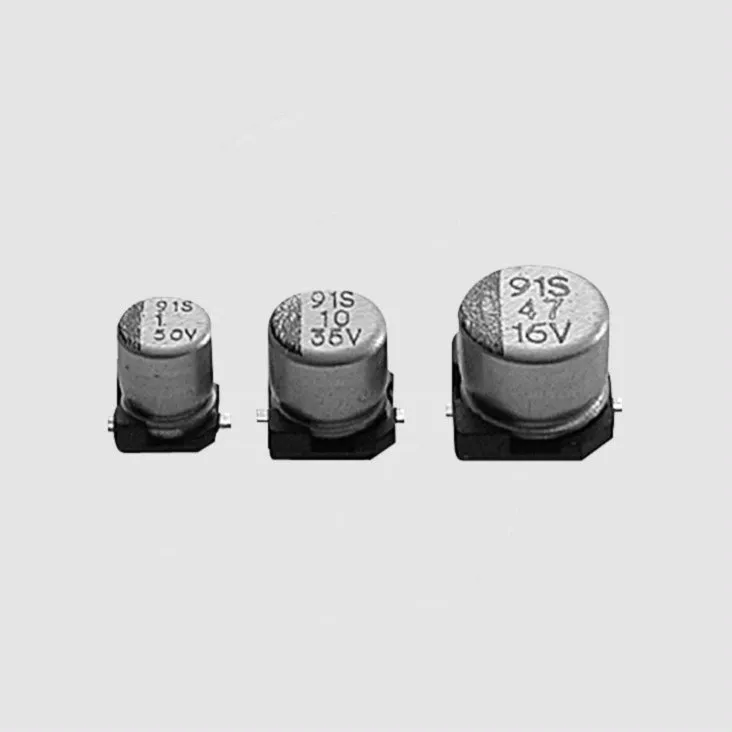

SMD El-Capacitor 10uF/63V 6,3x5,4mm

Varenummer:
85-926
Varekode:
CSMD0010/63
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 5,91
v/25
Kr. 4,14
v/100
Kr. 2,36
v/1000
Kr. 1,19

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28890/image_1920?unique=0248f6c https://elektroniklavpris.odoo.com/web/image/product.template/28890/image_1920?unique=0248f6c
Gruppe: C6711
KJ SMD Electrolytic Capacitors
Series: SS
Rated Voltage: 10...100V DC
Tolerance: 20%
Temperature Range: -40...+85°C
Technical Specifications
Life Expectancy (at 85°C):
2000h
Part Nr.
C
UN
tand
IR
Housing
 [µF]
[V DC]
 [mA]
[mm]
CSMD0001/501
50
0,12
10
4x5,4
CSMD0001/1001
100
0,10
10
4x5,4
CSMD0002.2/502,2
50
0,12
15
4x5,4
CSMD0002.2/1002,2
100
0,10
20
6,3x5,4
CSMD0004.7/354,7
35
0,12
20
4x5,4
CSMD0004.7/504,7
50
0,12
23
5x5,4
CSMD0004.7/634,7
63
0,10
30
6,3x5,4
CSMD0004.7/1004,7
100
0,10
50
6,3x7,7
CSMD0010/3510
35
0,12
30
5x5,4
CSMD0010/5010
50
0,12
34
6,3x5,4
CSMD0010/6310
63
0,10
34
6,3x5,4
CSMD0022/1622
16
0,16
39
5x5,4
CSMD0022/3522
35
0,12
54
6,3x5,4
CSMD0022/5022
50
0,12
45
6,3x5,4
CSMD0047/1647
16
0,16
68
6,3x5,4
CSMD0047/3547
35
0,12
20
6,3x5,4
CSMD0047/5047
50
0,12
130
10x10,5
CSMD0100/16100
16
0,16
86
6,3x5,4
CSMD0100/25100
25
0,14
145
6,3x7,7
CSMD0100/50100
50
0,12
200
8x10,5
CSMD0100/63100
63
0,10
60
10x10,5
CSMD0220/16220
16
0,16
160
6,3x7,7
CSMD0220/35220
35
0,12
270
10x10,5
CSMD0220/50220
50
0,12
400
10x13,5
CSMD0470/10470
10
0,20
300
8x10,5
CSMD0470/16470
16
0,16
330
10x10,5
CSMD0470/25470
25
0,14
400
10x10,5
CSMD0470/35470
35
0,12
530
10x13,5
CSMD1000/161000
16
0,16
490
10x10,5
CSMD1000/251000
25
0,14
820
12x13,5
CSMD2200/162200
16
0,16
1000
12,5x16
CSMD2200/252200
25
0,14
1250
16x16,5
CSMD4700/104700
10
0,20
1450
16x16,5
C = Rated Capacitance, UN = DC Voltage Rating, tan d = Dissipation Factor (120Hz), IR = Rated Alternating Current (85°C, 120Hz), Housing = Diameter to Length
Dimensions
Housing
D
L
A
B
C
E
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
4x5,44,0
5,4
1,8
4,3
4,3
1,0
5x5,45,0
5,4
2,1
5,3
5,3
1,3
6,3x5,46,3
5,4
2,4
6,6
6,6
2,2
6,3x7,76,3
7,7
2,4
6,6
6,6
2,2
8x10,58,0
10,5
2,9
8,3
8,3
3,1
10x10,510,0
10,5
3,2
10,3
10,3
4,4
10x13,510,0
10,5
3,2
10,3
10,3
4,4
12x13,512,0
13,5
4,7
13,0
13,0
4,4
12,5x1612,5
16,0
4,7
13,0
13,0
4,4
16x16,516,0
16,5
5,5
17,0
17,0
6,7
Terms of Delivery
Minimum order quantity: 1 PKU = 25 pieces, on tape segment without leader tape
Housing
Form of delivery
4x5,4mm2000 taped
5/6,3x5,4mm1000 taped
6,3x7,7mm1000 taped
8/10x10,5mm500 taped
10x13,5mm300 taped
12x13,5mm200 taped
12,5x16mm200 taped
16x16,5mm125 taped
Manufacturer
KJ
http://www.kjhkelec.com
