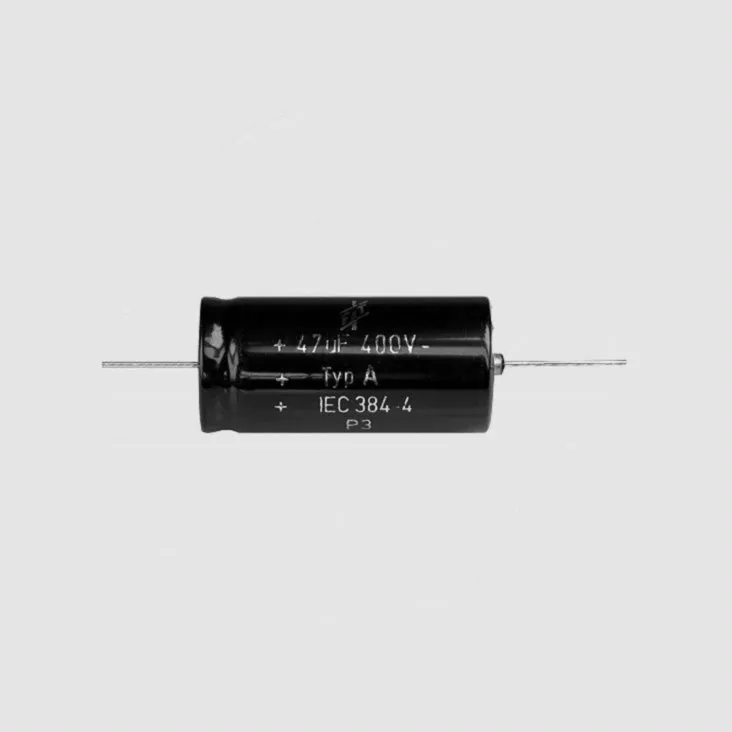

El-Capacitor 47uF/450V 21x36mm
Varenummer:
85-896
Varekode:
CAX00047/450
Vægt:
20 g
Lagerstatus:
Lager: 6 stk.
Gruppe:
C6629
F&T Electrolytic Capacitors
Series: A
Axial
Style: Bulk
Rated Voltage: 450V DC
Tolerance: 20%
Temperature Range: -40...+85°C
F&T Electrolytic Capacitors
Series: A
Axial
Style: Bulk
Rated Voltage: 450V DC
Tolerance: 20%
Temperature Range: -40...+85°C
| Features |
| • Polarized • High ripple current • Max. Reverse Voltage: 2V |
 |
| Technical Specifications |
| Part Nr. | C | tand | RESR | Z | D | L | d |
| CAX_ | [µF] | [%] | W | W | [mm] | [mm] | [mm] |
| 00004.7/450 | 4,7 | 6 | 15 | 10 | 10 | 30 | 0,8 |
| 00010/450 | 10 | 6 | 10,5 | 7 | 12 | 30 | 0,8 |
| 00022/450 | 22 | 6 | 6,75 | 4,5 | 16 | 30 | 0,8 |
| 00047/450 | 47 | 6 | 1,95 | 1,3 | 21 | 36 | 0,8 |
| C = Rated Capacitance, UN = DC Voltage Rating, tan d = Dissipation Factor (100Hz, 20°C), RESR = ESR (100Hz, 20°C), Z = Impedance (10kHz, 20°C) | |||||||
| |||||||
| Norms |
| IEC 384-2 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces 22µF...47µF: 1 PKU = 10 pieces Form of delivery: Bulk |
|
| Manufacturer |
 |
| http://www.ftcap.de |
|
Stregkode:
85896
Intern reference:
85896
Varekode:
CAX00047/450
