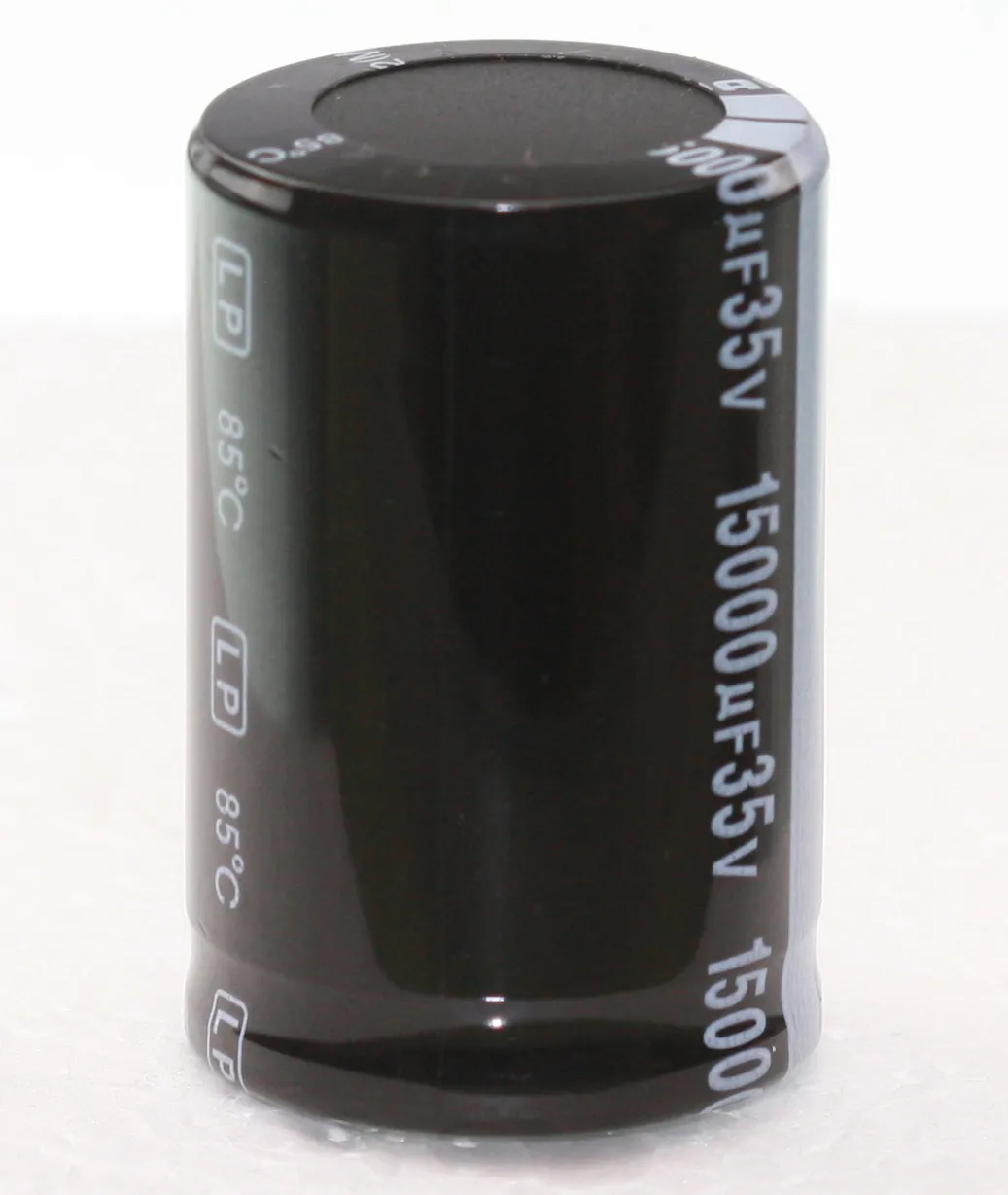

El-Capacitor 15000µF/35V-P10 30x45
Varenummer:
85-842
Varekode:
CS15000/35-P10
Vægt:
40 g
Lagerstatus:
Ikke på lager
Gruppe: C6415
JAMICON Electrolytic Capacitors
CLPW15000/35
Series: LPW
Snap-In
Style: Bulk
Rated Voltage: 35...400V DC
Tolerance: 20%
Temperature Range: -40/-25...+85°C
| Technical Specifications |
 |
|||||||||
| Operating Temperature Range | 35V, 50V: | -40...+85°C | 250V, 400V: | -25...+85°C | Leakage Current (Peak Value after 5min.): | IL£0,03xCxUN or 3mA | |||
|
|||||||||
| Part Nr. | C | UN | tand | IR | Z | D | L | [µF] | [V=] | [A] | [V/A] | [mm] | [mm] | CLPW47/400 | 47 | 400 | 0,25 | 0,43 | 8 | 22 | 25 | CLPW100/400 | 100 | 400 | 0,25 | 0,68 | 8 | 22 | 30 | CLPW220/400 | 220 | 400 | 0,25 | 1,27 | 8 | 22 | 45 | CLPW330/250 | 330 | 250 | 0,20 | 1,42 | 6 | 30 | 25 | CLPW470/400 | 470 | 400 | 0,25 | 2,19 | 8 | 35 | 45 | CLPW2200/50 | 2200 | 50 | 0,30 | 1,92 | 4 | 22 | 25 | CLPW3300/50 | 3300 | 50 | 0,30 | 2,51 | 4 | 22 | 35 | CLPW4700/35 | 4700 | 35 | 0,35 | 2,41 | 4 | 22 | 30 | CLPW4700/50 | 4700 | 50 | 0,30 | 2,89 | 4 | 22 | 40 | CLPW6800/35 | 6800 | 35 | 0,35 | 2,98 | 4 | 22 | 40 | CLPW10000/50 | 10000 | 50 | 0,30 | 3,72 | 4 | 30 | 45 | CLPW15000/35 | 15000 | 35 | 0,35 | 4,08 | 4 | 30 | 45 | ||||||||||
| C = Capacitance, UN = DC Voltage Rating, tan d = Dissipation Factor (120Hz, 25°C), IR = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (120Hz, -25...+25°C) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.jamicon.com.tw |
|
Stregkode:
85842
Intern reference:
85842
Varekode:
CS15000/35-P10
