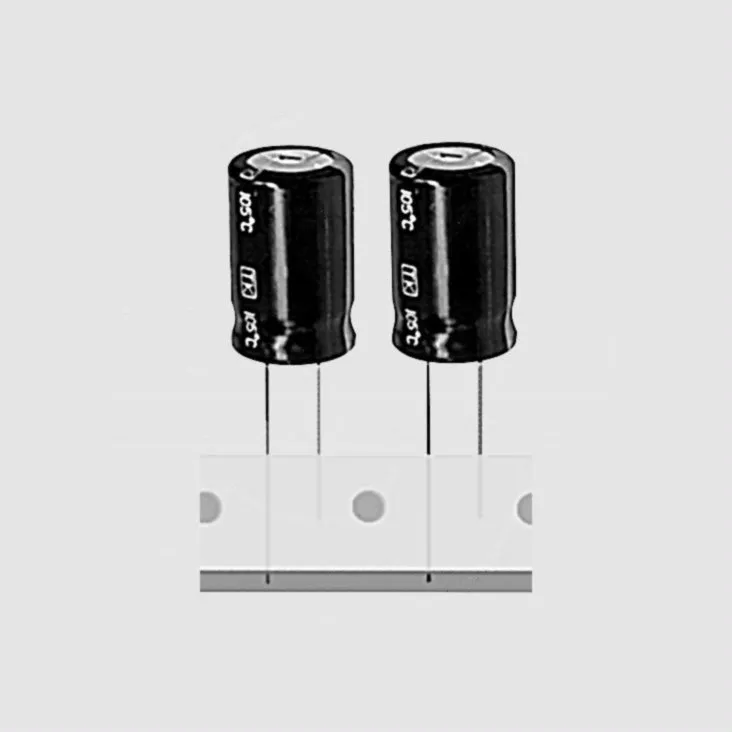

El-Capacitor 100µF/35V 6,3x11 P5 Taped
Varenummer:
85-772
Varekode:
CSHT0100/35-P5
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C6381
JAMICON, CAPXON Electrolytic Capacitors
Series: TK/KM
Radial
Style: Taped
Rated Voltage: 35V DC
Tolerance: 20%
Temperature Range: -40...+105°C
| Technical Specifications |
| Part Nr. | C | IR | D | L | P/PG | c | [µF] | [mA] | [mm] | [mm] | [mm] | [mm] | CSHT0047/35 | 47 | 85 | 5 | 11 | 2,5/5,0 | 0,5 | CSHT0100/35 | 100 | 150 | 8 | 11 | 3,5/5,0 | 0,6 | CSHT0220/35 | 220 | 240 | 10 | 13 | 5,0/5,0 | 0,6 | CSHT0220/35-3.5 | 220 | 260 | 8 | 11 | 3,5/5,0 | 0,6 | CSHT0470/35 | 470 | 430 | 10 | 16 | 5,0/5,0 | 0,6 | ||||||||
| C = Rated Capacitance, IR = Ripple Current (105°C, 120Hz), P/PG = Pitch/Pitch on Tape | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • General information please see introduction text "C6380 to C6384" before product group C6380. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces Form of delivery: Taped |
|
| Manufacturer |
  |
| http://www.jamicon.com.tw http://www.capxongroup.com |
|
Stregkode:
85772
Intern reference:
85772
Varekode:
CSHT0100/35-P5
