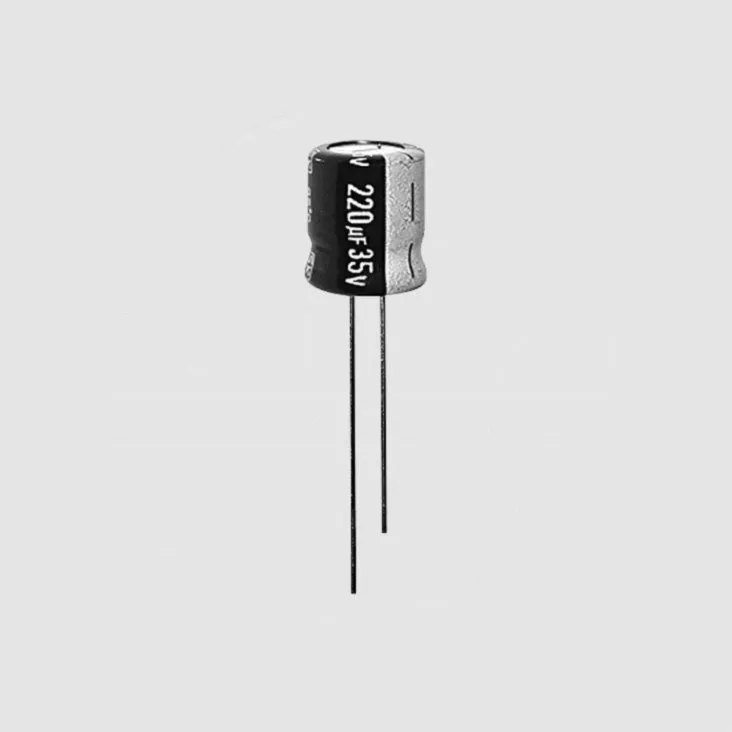

El-Capacitor 220µF/35V-P5 10x13
Varenummer:
85-720
Varekode:
CS0220/35-P5
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C6355
JAMICON, CAPXON Electrolytic Capacitors
Series: SK/GR
Radial
Style: Bulk
Rated Voltage: 35V DC
Tolerance: 20%
Temperature Range: -40...+85°C
| Technical Specifications |
 |
|||||||||
| Rated Voltage: | 35V DC | Capacitance Tolerance: | ±20% | Temperature Range: | -40...+85°C | Leakage Current: | IL£0,01xCxUN or 4µA | ||
|
|||||||||
| Part Nr. | C | IR | D | L | RM | d | [µF] | [mA] | [mm] | [mm] | [mm] | [mm] | CS0047/35 | 47 | 150 | 6,3 | 11 | 2,5 | 0,5 | CS0100/35 | 100 | 240 | 8 | 11 | 3,5 | 0,6 | CS0220/35 | 220 | 390 | 10 | 13 | 5,0 | 0,6 | CS0470/35 | 470 | 710 | 10 | 16 | 5,0 | 0,6 | CS1000/35 | 1000 | 1130 | 13 | 21 | 5,0 | 0,6 | CS1000/35-7.5 | 1000 | 1100 | 16 | 25 | 7,5 | 0,8 | CS2200/35 | 2200 | 1830 | 16 | 32 | 7,5 | 0,8 | CS4700/35 | 4700 | 1600 | 18 | 35 | 7,5 | 0,8 | ||||||||
| C = Rated Capacitance, IR = Ripple Current (85°C, 120Hz), P = Pitch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • Taped 35V capacitors for temperature ranges up to 105°C available in this catalogue from product group C6381. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces Form of delivery: Bulk |
|
| Manufacturer |
  |
| http://www.jamicon.com.tw http://www.capxongroup.com |
|
Stregkode:
85720
Intern reference:
85720
Varekode:
CS0220/35-P5
