• Stable temperature and frequency characteristics
• Low leakage current, low dissipation factor
• High resistance to shock and vibration
• Flame retardant plastic case UL94V-0 |
 |
| • Telecommunications, measuring and control engineering, automotive electronics, DC/DC converters |
|
|
| |
|
Technology: |
Ta-MnO2 |
Rated Voltage: |
See Table |
Capacitance Tolerance: |
±10% |
Temperature Range: |
-55...+85°C |
With Voltage Reduction: |
+85...+125°C |
Climatic Category: |
55/125/56 |
Service Life: |
>500000h |
|
| |
|
|
|
|
|
|
|
Part Nr. |
C |
UN |
U125 |
RESR |
ILK |
IAC |
Chip |
B45197A-_ |
|
|
|
|
|
|
Size |
|
[μF] |
[V] |
[V] |
[mW] |
[μA] |
[A] |
|
100D |
100 |
10 |
6,3 |
100 |
10 |
1,22 |
D |
220E |
220 |
10 |
6,3 |
100 |
22 |
1,28 |
E |
330E |
330 |
10 |
6,3 |
100 |
33 |
1,28 |
E |
033D |
33 |
16 |
10 |
200 |
5,3 |
0,87 |
D |
047D |
47 |
16 |
10 |
175 |
7,5 |
0,93 |
D |
100E |
100 |
16 |
10 |
100 |
16 |
1,28 |
E |
068E |
68 |
20 |
13 |
200 |
14 |
0,91 |
E |
004,7C |
4,7 |
25 |
16 |
525 |
1,2 |
0,46 |
C |
022D |
22 |
25 |
16 |
230 |
5,5 |
0,81 |
D |
010D |
10 |
35 |
23 |
260 |
3,5 |
0,76 |
D |
022E |
22 |
35 |
23 |
260 |
7,7 |
0,80 |
E |
| C = Capacitance, UN = Rated Voltage DC 35 to +85°C, U125 = Decreased Rated Voltage DC to 125°C, RESR = Equivalent Series Resistance (20°C, 100 kHz), ILK=Leakage Current (20°C, UN, 5Min), IAC = Alternating Current (20°C, 100kHz) |
|
| |
|
|
|
|
|
|
|
Chip |
L±0,3 |
W±0,3 |
H±0,3 |
L2typ. |
W2±0,1 |
H2typ. |
P±0,3 |
|
|
|
|
[mm] |
|
|
|
C |
6,0 |
3,2 |
2,5 |
5,8 |
2,2 |
1,5 |
1,3 |
D |
7,3 |
4,3 |
2,8 |
7,1 |
2,4 |
1,6 |
1,3 |
E |
7,3 |
4,3 |
4,1 |
7,1 |
2,4 |
1,6 |
1,3 |
|

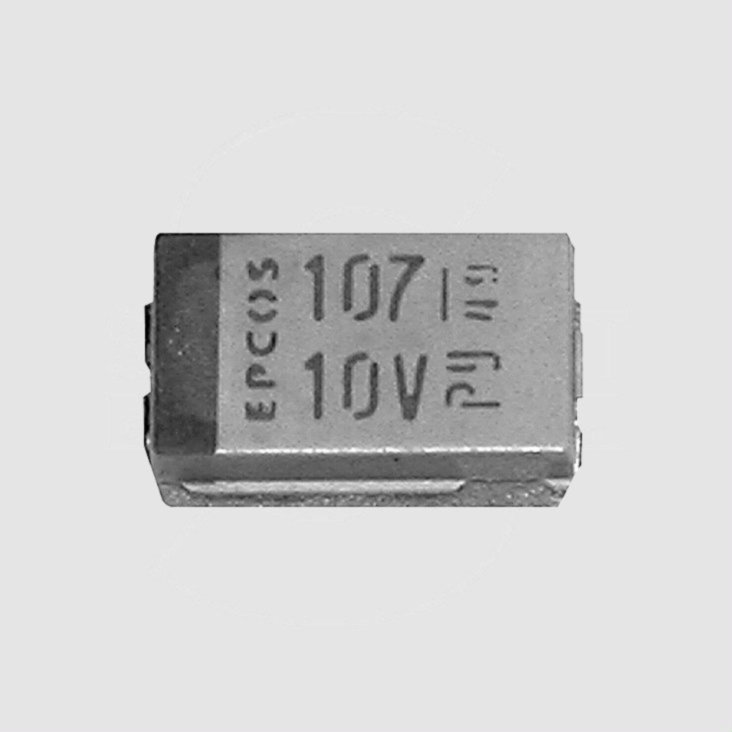

| Labelling |
| Manufacturer, polarity bar (positive pole marking), capacitance, date code, rated voltage |
|
|
