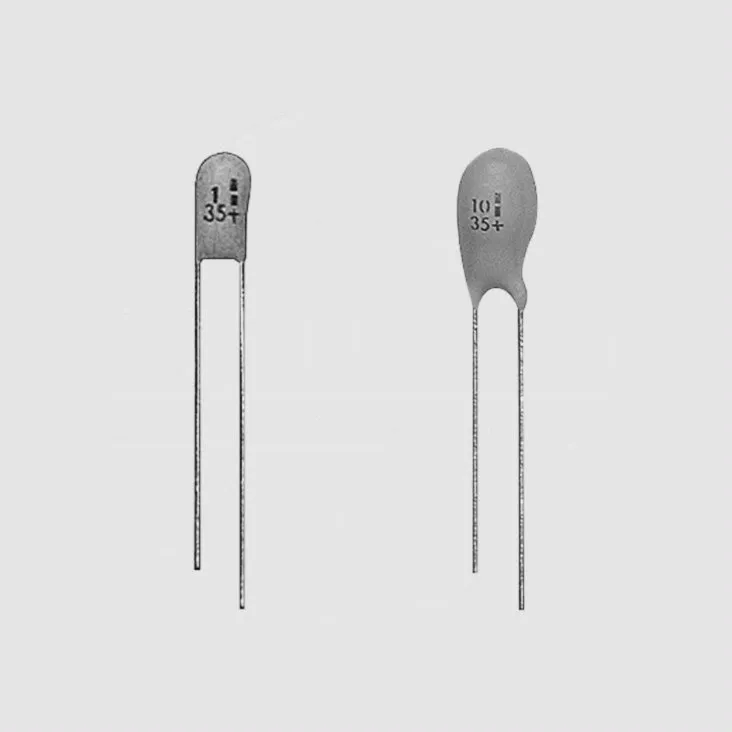

Tantalum Capacitor 0,47uF 35V P2,54

Varenummer:
85-652
Varekode:
CTLF000,47GM1
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 2,50
v/100
Kr. 1,25
v/1000
Kr. 1,00

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28620/image_1920?unique=8b93c9a https://elektroniklavpris.odoo.com/web/image/product.template/28620/image_1920?unique=8b93c9a
Features
• Tantalum solid capacitors with yellow epoxy marked by laser
• Flame-retardant material
• Radial leads
Technical Specifications

Rated Voltage: 35V DC
Temperature Range: -55...+85°C1)
1) Up to 125°C with decreased voltage, see table


Part Nr. C U125 IL P DMax. HMax.
  [µF] [V DC] [µA] [mm] [mm] [mm]
CTL000.47G 0,47 20 0,165 2,54 4,5 7,0
CTL001G 1,0 20 0,35 2,54 4,5 7,0
CTL001.5G 1,5 20 0,5 2,54 4,5 7,0
CTL002.2G 2,2 20 0,5 2,54 5,0 8,0
CTL003.3G 3,3 20 0,5 2,54 5,0 8,0
CTL004.7G 4,7 20 0,5 2,54 5,5 9,5
CTL010G 10 20 0,5 2,54 6,5 11,0
CTL022G 22 20 0,5 5,08 8,5 13,0
C = Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = DC Leakage at 25°C, P = Pitch
Norms
IEC384-15-3, IECQ QC300201/US0003, SJ/T10856-96
Labelling
Capacitance, polarity stripe, voltage, polarity

Stregkode: 85652
Intern reference: 85652
Varekode: CTLF000,47GM1
