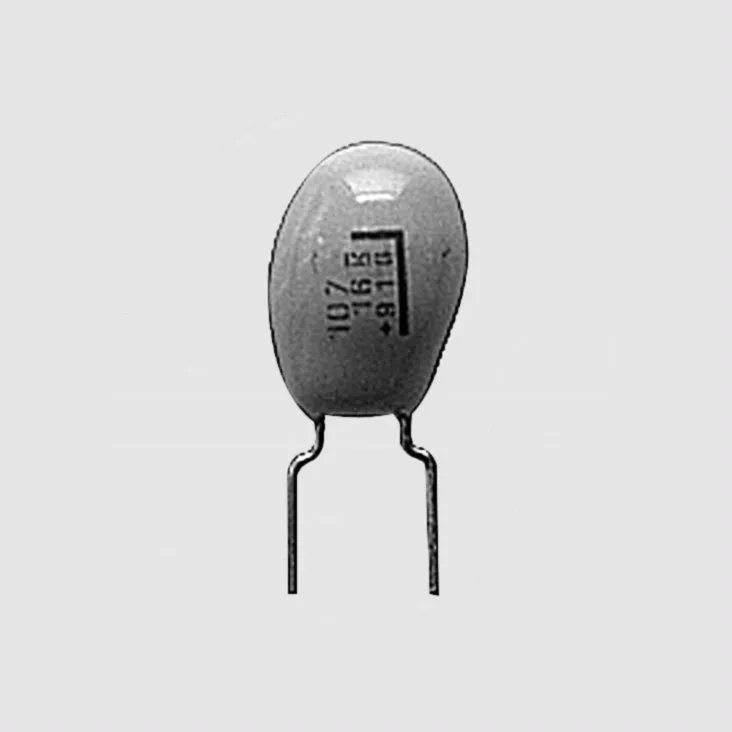

Tantalum Capacitor 22uF 35V P5,08
Varenummer:
85-640
Varekode:
CTUF022GM2
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C6137
KEMET Tantalum Solid Capacitors
Series: T350, T356
Style: Bulk
Rated Voltage: 35V DC
Tolerance: 20%
Pitch: 2,54/5,08mm
| Features |
| • Tantalum solid capacitors with orange coloured epoxy • Self-extinguishing • Self-insulating cases which are resistant to shock and vibration • Radial leads |
 |
| Technical Specifications |
|
|||||||||
| Rated Voltage: | 35V DC | Surge Voltage: | 1,3xUN | Capacitance Tolerance: | ±20% | Temperature Range: | -55°C...+85°C1) | ||
| 1) Up to 125°C with decreased voltage, see table |
|||||||||
|
|||||||||
| Part Nr. | C | U125 | IL | tan d | P | D | H | [µF] | [V DC] | [µA] | [%] | [mm] | [mm] | [mm] | CTUF000.1G | 0,1 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 | CTUF000.22G | 0,22 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 | CTUF000.33G | 0,33 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 | CTUF000.68G | 0,68 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 | CTUF001G | 1,0 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 | CTUF001.5G | 1,5 | 23 | 0,5 | 5 | 2,54 | 4,5 | 7,6 | CTUF002.2G | 2,2 | 23 | 0,6 | 5 | 2,54 | 5,0 | 8,4 | CTUF003.3G | 3,3 | 23 | 0,9 | 5 | 2,54 | 5,0 | 8,6 | CTUF004.7G | 4,7 | 23 | 1,3 | 5 | 2,54 | 5,5 | 8,9 | CTUF006.8G | 6,8 | 23 | 1,9 | 5 | 2,54 | 6,0 | 9,9 | CTUF010G | 10,0 | 23 | 2,8 | 6 | 2,54 | 6,3 | 10,2 | CTUF022G | 22,0 | 23 | 6,2 | 6 | 5,08 | 8,9 | 15,5 | |||||||||
| C= Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = Leakage at 25°C, tan d = Max. Dissipation Factor at 25°C and 120Hz, P = Pitch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • For taped tantalum capacitors please see product group C6140. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces 22µF: 1 PKU = 10 pieces Form of delivery: Bulk |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
