Tantalum Capacitor 4,7uF 35V P2,54

Varenummer:
85-637
Varekode:
CTUF004,7GM1
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 5,68 5.68 DKK kr 5,68 Inklusiv moms

kr 5,68 Inklusiv moms

Anmod os om en pris

v/10
Kr. 5,95
v/25
Kr. 4,75
v/100
Kr. 3,55
v/1000
Kr. 2,50

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28605/image_1920?unique=8b93c9a https://elektroniklavpris.odoo.com/web/image/product.template/28605/image_1920?unique=8b93c9a

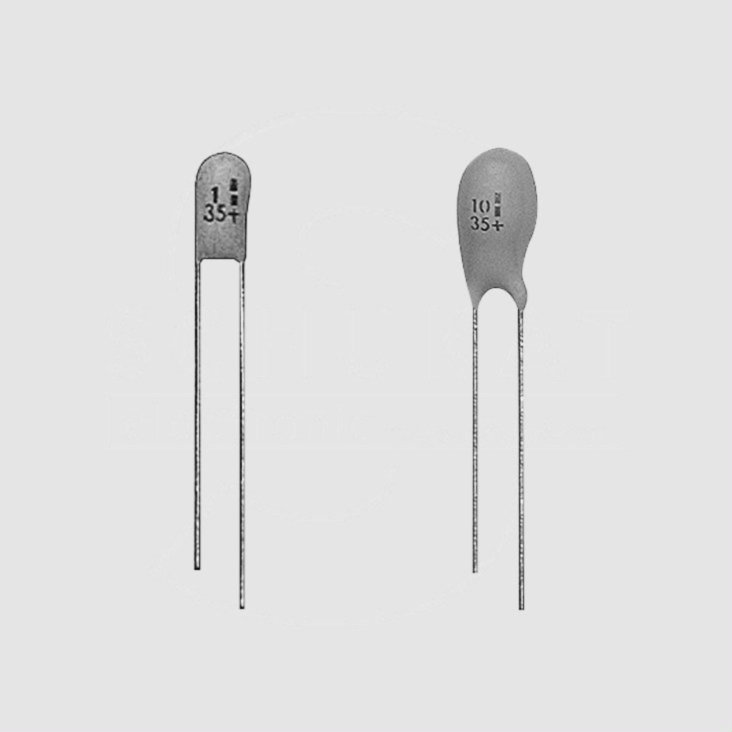

Features

• Tantalum solid capacitors with orange coloured epoxy
• Self-extinguishing
• Self-insulating cases which are resistant to shock and vibration
• Radial leads
Technical Specifications

    Surge Voltage: 1,3xUN Capacitance Tolerance: ±20% Temperature Range: -55°C...+85°C1)
1) Up to 125°C with decreased voltage, see table
                  Part Nr. C UN U125 IL tan d RM D H _-GURT [μF] [V=] [V=] [μA] [%] [mm] [mm] [mm] CTUF002,2D 2,2 16 10 0,5 5 2,54 4,5 7,1 CTUF003,3D 3,3 16 10 0,5 5 2,54 4,5 7,1 CTUF004,7D 4,7 16 10 0,6 5 2,54 4,5 7,6 CTUF010D 10,0 16 10 1,3 6 2,54 5,5 8,9 CTUF022D 22,0 16 10 2,6 6 2,54 6,0 9,9 CTUF002,2F 2,2 25 16 0,5 5 2,54 4,5 7,6 CTUF004,7F 4,7 25 16 0,9 5 2,54 5,0 8,4 CTUF010F 10,0 25 16 2,0 6 2,54 5,5 8,9 CTUF022F 22,0 25 16 4,4 6 2,54 7,6 11,9 CTUF001G 1,0 35 23 0,5 3 2,54 4,5 7,1 CTUF002,2G 2,2 35 23 0,6 5 2,54 5,0 8,4 CTUF004,7G 4,7 35 23 1,3 5 2,54 5,5 8,9 CTUF010G 10,0 35 23 2,8 6 2,54 6,3 10,2
C= Capacitance, UN = DC Voltage Rating, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = Leakage at 25°C, tan d = Max. Dissipation Factor at 25°C and 120Hz, P = Pitch
        Tape Segment1) Reel   (= Minimum Order Quantity) For Orders of   [Pieces] [Pieces] CTUF002,2D-GURT 100 1500 CTUF003,3D-GURT 100 2500 CTUF004,7D-GURT 100 1500 CTUF010D-GURT 100 2000 CTUF022D-GURT 100 2500 CTUF002,2F-GURT 100 1500 CTUF004,7F-GURT 100 1500 CTUF010F-GURT 100 1000 CTUF022F-GURT 100 800 CTUF001G-GURT 100 2500 CTUF002,2G-GURT 100 1500 CTUF004,7G-GURT 100 1000 CTUF010G-GURT 100 1500
1) = Tape Segment without Leader Tape and Reel


Manufacturer
Kemet
http://www.kemet.com
