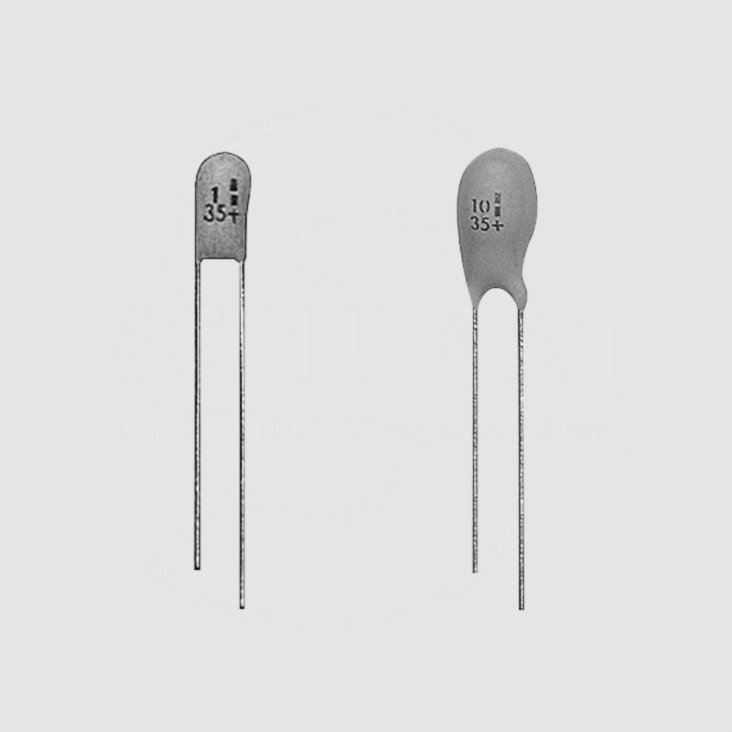

Tantalum Capacitor 1uF 35V P2,54
Varenummer:
85-633
Varekode:
CTUF001GM1
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C6140
KEMET Tantalum Solid Capacitors
Series: T350
Style: Taped
Rated Voltage: 16...35V DC
Tolerance: 20%
Pitch: 2,54mm
Features
| • Tantalum solid capacitors with orange coloured epoxy • Self-extinguishing • Self-insulating cases which are resistant to shock and vibration • Radial leads |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 35V DC |
| Surge Voltage: | 1,3xUN |
| Capacitance Tolerance: | ±20% |
| Temperature Range: | -55°C...+85°C1) |
| 1) Up to 125°C with decreased voltage, see table |
|
|
|
| Part Nr. | C | U125 | IL | tan d | P | D | H |
| [µF] | [V DC] | [µA] | [%] | [mm] | [mm] | [mm] | |
| CTUF000.1G | 0,1 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 |
| CTUF000.22G | 0,22 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 |
| CTUF000.33G | 0,33 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 |
| CTUF000.68G | 0,68 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 |
| CTUF001G | 1,0 | 23 | 0,5 | 3 | 2,54 | 4,5 | 7,1 |
| CTUF001.5G | 1,5 | 23 | 0,5 | 5 | 2,54 | 4,5 | 7,6 |
| CTUF002.2G | 2,2 | 23 | 0,6 | 5 | 2,54 | 5,0 | 8,4 |
| CTUF003.3G | 3,3 | 23 | 0,9 | 5 | 2,54 | 5,0 | 8,6 |
| CTUF004.7G | 4,7 | 23 | 1,3 | 5 | 2,54 | 5,5 | 8,9 |
| CTUF006.8G | 6,8 | 23 | 1,9 | 5 | 2,54 | 6,0 | 9,9 |
| CTUF010G | 10,0 | 23 | 2,8 | 6 | 2,54 | 6,3 | 10,2 |
| CTUF022G | 22,0 | 23 | 6,2 | 6 | 5,08 | 8,9 | 15,5 |
| C= Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = Leakage at 25°C, tan d = Max. Dissipation Factor at 25°C and 120Hz, P = Pitch | |||||||
