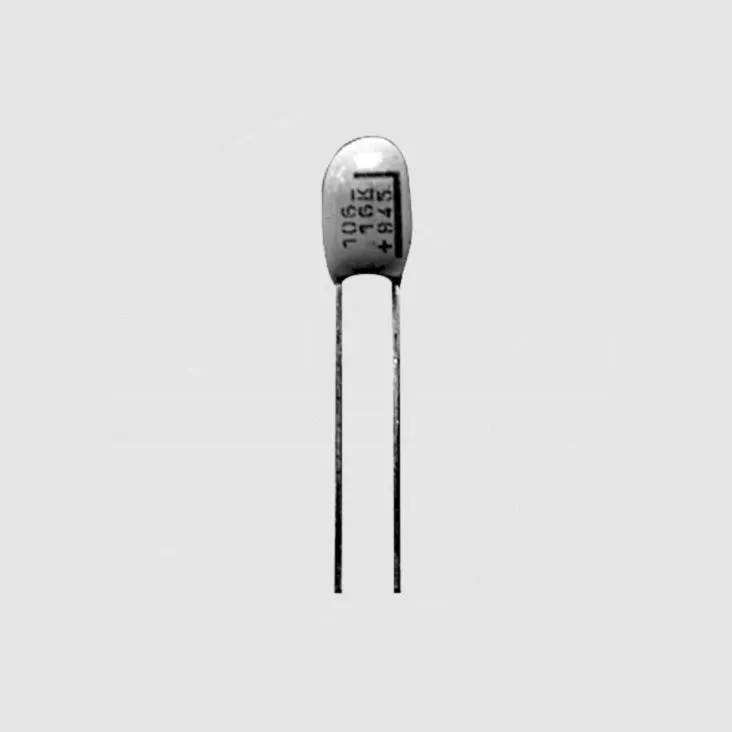

Tantalum Capacitor 1,5uF 25V P2,54
Varenummer:
85-620
Varekode:
CTUF001,5FM1
Vægt:
0 g
Lagerstatus:
Ikke på lager
Features
| • Tantalum solid capacitors with orange coloured epoxy • Self-extinguishing • Self-insulating cases which are resistant to shock and vibration • Radial leads |
 |
| Technical Specifications |
|
|
| Rated Voltage: | 25V DC |
| Surge Voltage: | 1,3xUN |
| Capacitance Tolerance: | ±20% |
| Temperature Range: | -55°C...+85°C1) |
| 1) Up to 125°C with decreased voltage, see table |
|
|
|
| Part Nr. | C | U125 | IL | tan d | P | D | H |
| [µF] | [V DC] | [µA] | [%] | [mm] | [mm] | [mm] | |
| CTUF001.5F | 1,5 | 16 | 0,5 | 5 | 2,54 | 4,5 | 7,1 |
| CTUF002.2F | 2,2 | 16 | 0,5 | 5 | 2,54 | 4,5 | 7,6 |
| CTUF004.7F | 4,7 | 16 | 0,9 | 5 | 2,54 | 5,0 | 8,4 |
| CTUF010F | 10 | 16 | 2,0 | 6 | 2,54 | 5,5 | 8,9 |
| CTUF022F | 22 | 16 | 4,4 | 6 | 2,54 | 7,6 | 11,9 |
| CTUF033F | 33 | 16 | 6,6 | 6 | 5,08 | 8,4 | 12,7 |
| CTUF047F | 47 | 16 | 9,4 | 6 | 5,08 | 8,9 | 15,5 |
| C = Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = Leakage at 25°C, tan d = Max. Dissipation Factor at 25°C and 120Hz, P = Pitch | |||||||
|
|||||||
Stregkode:
85620
Intern reference:
85620
Varekode:
CTUF001,5FM1
