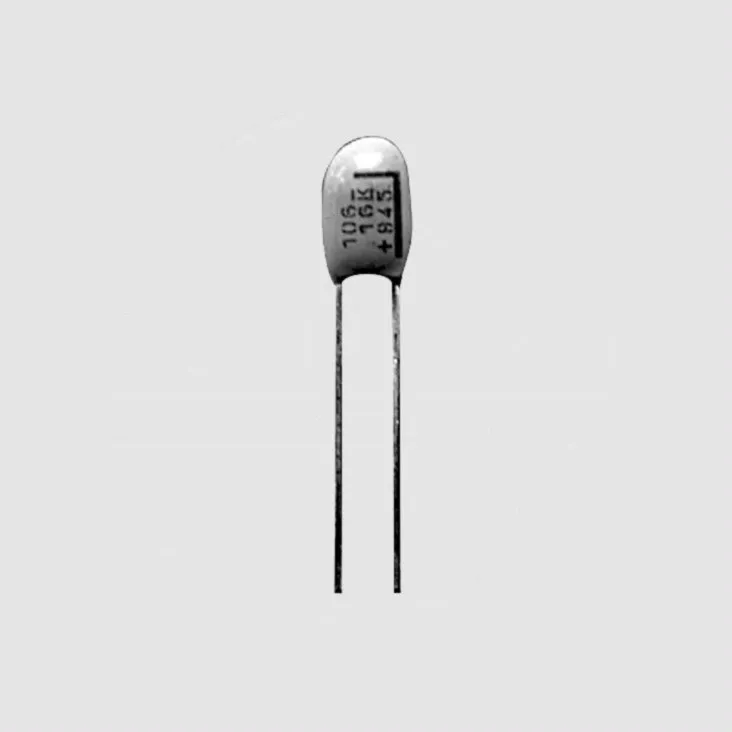

Tantalum Capacitor 10uF 10V P2,54
Varenummer:
85-609
Varekode:
CTUF010CM1
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C6133
KEMET Tantalum Solid Capacitors
Series: T350, T356
Style: Bulk
Rated Voltage: 6,3/10/16V DC
Tolerance: 20%
Pitch: 2,54/5,08mm
| Features |
| • Tantalum solid capacitors, epoxy-coated • Self-extinguishing • Self-insulating cases which are resistant to shock and vibration • Radial leads |
 |
| Technical Specifications |
|
|||||||||||||||
| Rated Voltage: | CTUF_B: | 6,3V DC | CTUF_C: | 10V DC | CTUF_D: | 16V DC | Surge Voltage: | 1,3xUN | Capacitance Tolerance: | ±20% | Temperature Range: | -55°C...+85°C1) | |||
| 1) Up to 125°C with Decreased Voltage, See Table |
|||||||||||||||
|
|||||||||||||||
| Part Nr. | C | U125 | IL | tan d | P | D | H | [µF] | [V DC] | [µA] | [%] | [mm] | [mm] | [mm] | CTUF002.2D | 2,2 | 10 | 0,5 | 5 | 2,54 | 4,5 | 7,1 | CTUF003.3D | 3,3 | 10 | 0,5 | 5 | 2,54 | 4,5 | 7,1 | CTUF004.7C | 4,7 | 6,3 | 0,5 | 5 | 2,54 | 4,5 | 7,1 | CTUF004.7D | 4,7 | 10 | 0,6 | 5 | 2,54 | 4,5 | 7,6 | CTUF006.8D | 6,8 | 10 | 0,9 | 5 | 2,54 | 5,0 | 8,4 | CTUF010C | 10,0 | 6,3 | 0,8 | 6 | 2,54 | 5,0 | 8,6 | CTUF010D | 10 | 10 | 1,3 | 6 | 2,54 | 5,5 | 8,9 | CTUF022D | 22 | 10 | 2,6 | 6 | 2,54 | 6,0 | 9,9 | CTUF033C | 33,0 | 6,3 | 2,6 | 6 | 2,54 | 6,0 | 9,9 | CTUF047B | 47 | 4,0 | 2,3 | 6 | 2,54 | 6,0 | 9,9 | CTUF047D | 47 | 10 | 5,6 | 6 | 5,08 | 8,4 | 14,0 | CTUF100D | 100 | 10 | 10,0 | 8 | 5,08 | 8,9 | 18,1 | |||||||||
| C= Capacitance, U125 = Decreased DC Voltage at Operating Temperature up to 125°C, IL = Leakage at 25°C, tan d = Max. Dissipation Factor at 25°C and 120Hz, P = Pitch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • For taped tantalum capacitors please see product group C6140. |
|
| Labelling |
| Capacitance (EIA code), manufacturer trademark, polarity stripe, voltage, polarity |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 25 pieces 47µF...100µF: 1 PKU = 10 pieces Form of delivery: Bulk |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
