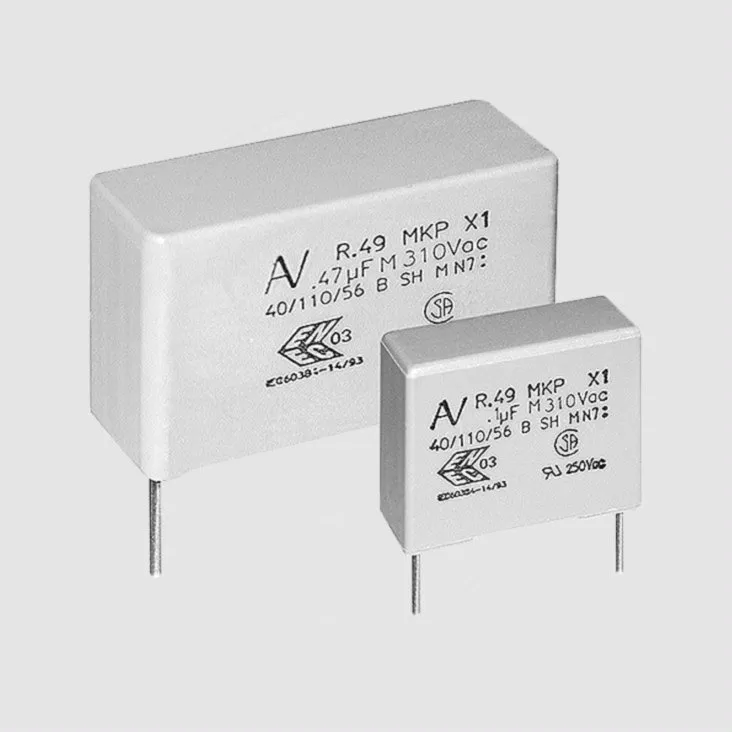

MKP Capacitor 10nF X1 310V P15

Varenummer:
85-592
Varekode:
C49NF010-15
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/2000
Kr. 1,11

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28561/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28561/image_1920?unique=14ab7d4
Gruppe: C5821
KEMET/ARCOTRONICS MKP Metallized Film Capacitors
Series: R.49
Wound Technology, Class X1
Style: Bulk
Rated Voltage: 310V AC
Tolerance: 20%
Pitch: 10...27,5mm
Features
• Dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
• Tinned wire leads
• Box material is solvent resistant and flame retardant (UL94V-0)
• Low attenuation
• Low dissipation factor (tan d)
• High pulse strength (du/dt)
• High insulation resistance
• No impregnation
Technical Specifications
Rated Voltage (50/60 Hz):
310V AC
Capacitance Tolerance:
±20%
Temperature Range:
-40...+110°C
Climatic Category (IEC60068-1):
40/110/56
Insulation Resistance
C£330nF:
³1x105MW
C>330nF:
>3x104s
Dissipation Factor Tan d (1kHz, ±25°C):
£10x10-4
Part Nr.
CN
du/dt
B
H
L
P
Ø
 [nF]
[V/µS]
[mm]
[mm]
[mm]
[mm]
[mm]
C49NF010-1010
600
5,0
11,0
13,0
10,0
0,6
C49NF010-1510
500
5,0
11,0
18,0
15,0
0,6
C49NF015-1015
600
5,0
11,0
13,0
10,0
0,6
C49NF015-1515
500
5,0
11,0
18,0
15,0
0,6
C49NF022-1022
600
6,0
12,0
13,0
10,0
0,6
C49NF022-1522
500
5,0
11,0
18,0
15,0
0,6
C49NF033-1033
600
6,0
12,0
13,0
10,0
0,6
C49NF033-1533
500
5,0
11,0
18,0
15,0
0,6
C49NF047-1547
500
6,0
12,0
18,0
15,0
0,6
C49NF068-1568
500
6,0
12,0
18,0
15,0
0,6
C49NF100-15100
500
7,5
13,5
18,0
15,0
0,6
C49NF220-22220
400
8,5
17
26,5
22,5
0,8
C49NF330-22330
400
10
18,5
26,5
22,5
0,8
C49NF680-27680
200
13
22
32
27,5
0,8
CN = Rated Capacity, du/dt = Pulse Strength, Max. at 390V DC
Labelling
Manufacturer logo, series, rated capacitance, tolerance, rated voltage, class, dielectric code, climatic category, flammability category, manufacturing date code, approvals, manufacturers code
Approvals
According to EN132400 (IEC60384-14 / 2:1993 and A1:1995; IEC60065)
CSA and UL 1414 up to 1 µA(250V AC); UL 1283 for 310V AC
03
Terms of Delivery
Minimum order quantity: 1 PKU = 50 pieces
Form of delivery: Bulk
Articles in bold print in stock, other articles available on request, delivery time approx. 12 weeks:
C49NF010-10, C49NF015-10: 2600 pieces upwards
C49NF010-15, C49NF015-15, C49NF033-15, C49NF068-15: 2000 pieces upwards
C49NF330-22: 1188 pieces upwards
C49NF680-27: 960 pieces upwards
Manufacturer

http://www.kemet.com
