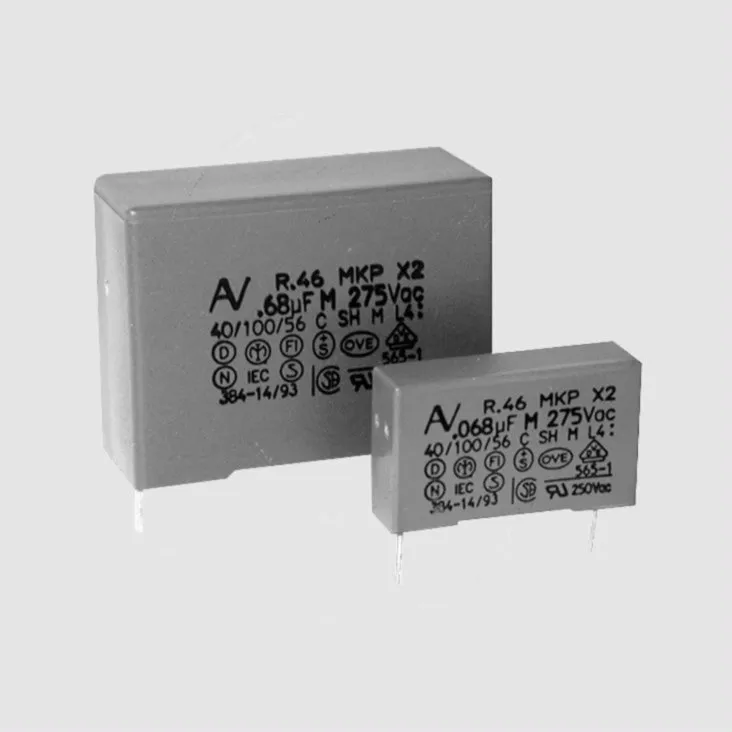

MKP Capacitor 2,2uF X2 275V P27,5

Varenummer:
85-580
Varekode:
C46UF002,2
Vægt:
20 g
Lagerstatus:
Ikke på lager

kr 15,56 15.56 DKK kr 15,56 Inklusiv moms

kr 15,56 Inklusiv moms

Anmod os om en pris

v/10
Kr. 12,96
v/25
Kr. 11,96
v/100
Kr. 9,22
v/1000
Kr. 6,29

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28549/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28549/image_1920?unique=14ab7d4
Features
• Dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
• Box material is solvent resistant and flame retardant (UL94V-0)
• Low attenuation
• Low dissipation factor (tan d)
• High pulse strength (du/dt)
• High insulation resistance
• No impregnation
Technical Specifications
Rated Voltage (50/60Hz):
 275V AC
Capacitance Tolerance:
 ±20%
Temperature Range:
 -40...+110°C
Climatic Category (IEC60068-1):
 40/100/56
Insulation Resistance
C�330nF:
 ³1x105MW (typ.: 5x105MW)*
C³330nF:
 ³30000s (typ.: 150000s)*
Dissipation Factor Tan d (1kHz, ±25°C):
 �10x10-4 (typ.: �6x10-4)
* = Typical Values
Part Nr.
 CN
 du/dt
 B
 H
 L
 P
 Ø
  [nF]
 [V/μS]
 [mm]
 [mm]
 [mm]
 [mm]
 [mm]
C46NF010 10
 400
 5
 11
 18
 15
 0,6
C46NF015 15
 400
 5
 11
 18
 15
 0,6
C46NF022 22
 400
 5
 11
 18
 15
 0,6
C46NF033 33
 400
 5
 11
 18
 15
 0,6
C46NF047 47
 400
 5
 11
 18
 15
 0,6
C46NF068 68
 400
 5
 11
 18
 15
 0,6
C46NF100 100
 400
 6
 12
 18
 15
 0,6
C46NF150-15 150
 400
 7,5
 13,5
 18
 15
 0,6
C46NF150-22 150
 200
 6
 15
 26,5
 22,5
 0,8
C46NF220 220
 200
 6
 15
 26,5
 22,5
 0,8
C46NF330 330
 200
 7
 16
 26,5
 22,5
 0,8
C46NF470 470
 200
 10
 18,5
 26,5
 22,5
 0,8
C46NF680 680
 150
 10
 20
 32,0
 27,5
 0,8
C46UF001 1000
 150
 11
 20
 32,0
 27,5
 0,8
C46UF002,2 2200
 150
 14,0
 28,0
 32,0
 27,5
 0,8
C46UF003,3 3300
 150
 18,0
 33,0
 32,0
 27,5
 0,8
C46UF004,7 4700
 150
 22,0
 37,0
 32,0
 27,5
 0,8
C46UF0010 10000
 100
 30
 45
 41,5
 37,5
 1,0
CN = Rated Voltage, du/dt = Pulse Strength, Max. at 390V DC
Labelling
Manufacturer logo, series, rated capacitance, tolerance, rated voltage, class, climatic category, manufacturing date code, approvals
Approvals
According to EN132400 (CCEE IEC60384-14 / 2:1993 and A1:1995; IEC60065)
CSA and UL 1414 up to 1μA; UL 1283 for 310V AC
03
Additional Products
P10, P37,5 and capacitance tolerance ±10% available on request.
Manufacturer

http://www.arcotronics.com
