MKP Capacitor 10nF X2 275V P15

Varenummer:
85-566
Varekode:
C46NF010
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 2,57 2.57 DKK kr 2,57 Inklusiv moms

kr 2,57 Inklusiv moms

Anmod os om en pris

v/10
Kr. 2,52
v/25
Kr. 2,06
v/100
Kr. 1,38
v/1000
Kr. 0,83

Denne kombination eksistere ikke.

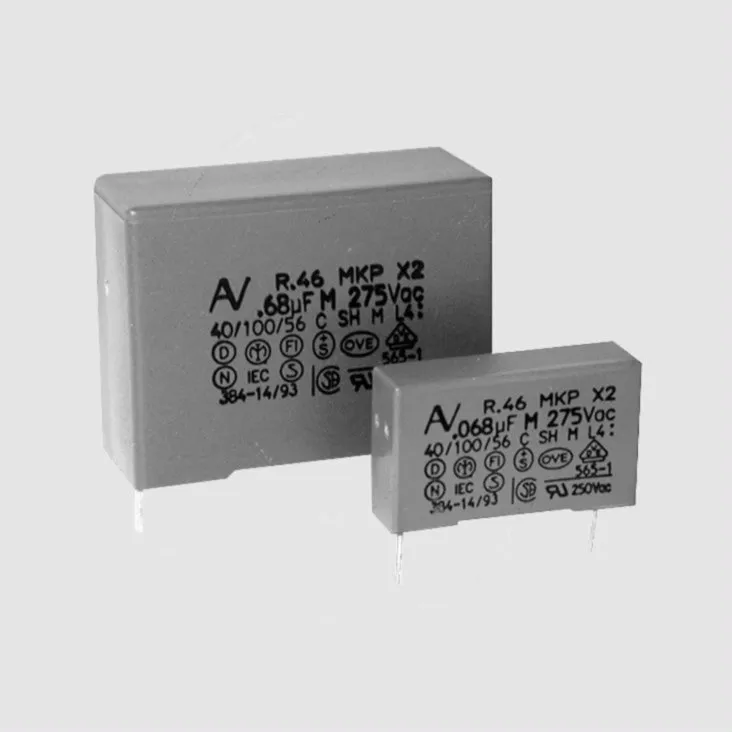

https://elektroniklavpris.odoo.com/web/image/product.template/28535/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28535/image_1920?unique=14ab7d4
Gruppe: C5813
KEMET/ARCOTRONICS MKP Metallized Film Capacitors
Series: R.46
Wound Technology, Class X2
Style: Bulk
Rated Voltage: 275/300V AC
Tolerance: 20%
Pitch: 15...37,5mm
Features
• Dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
• Box material is solvent resistant and flame retardant (UL94V-0), no impregnation
• Low attenuation
• Low dissipation factor (tan d)
• High pulse strength (du/dt)
• High insulation resistance
Technical Specifications
Rated Voltage (50/60Hz):
275V AC
C463NF470:
300V AC
Capacitance Tolerance:
±20%
Temperature Range:
-40...+110°C
Climatic Category (IEC60068-1):
40/100/56
Insulation Resistance
C£330nF:
³1x105MW (5x105MW*)
C³330nF:
³30000s (150000s*)
Dissipation Factor Tan d (1kHz, ±25°C):
£10x10-4 (£6x10-4*)
* = Typical Values

Part Nr.
CN
du/dt
B
H
L
P
Ø
 [nF]
[V/µS]
[mm]
[mm]
[mm]
[mm]
[mm]
C46NF01010
400
5
11
18
15
0,6
C46NF01515
400
5
11
18
15
0,6
C46NF02222
400
5
11
18
15
0,6
C46NF03333
400
5
11
18
15
0,6
C46NF04747
400
5
11
18
15
0,6
C46NF06868
400
5
11
18
15
0,6
C46NF100100
400
6
12
18
15
0,6
C46NF150-15150
400
7,5
13,5
18
15
0,6
C46NF150-22150
200
6
15
26,5
22,5
0,8
C46NF220220
200
6
15
26,5
22,5
0,8
C46NF330330
200
7
16
26,5
22,5
0,8
C46NF470470
200
10
18,5
26,5
22,5
0,8
C463NF470470
200
10
18,5
26,5
22,5
0,8
C46NF680680
150
10
20
32,0
27,5
0,8
C46UF0011000
150
11
20
32,0
27,5
0,8
C46UF002.22200
150
14,0
28,0
32,0
27,5
0,8
C46UF003.33300
150
18,0
33,0
32,0
27,5
0,8
C46UF004.74700
150
22,0
37,0
32,0
27,5
0,8
C46UF001010000
100
30
45
41,5
37,5
1,0
CN = Rated Capacitance, du/dt = Pulse Strength, Max. at 390V DC
Labelling
Manufacturer logo, series, rated capacitance, tolerance, rated voltage, class, climatic category, manufacturing date code, approvals
Approvals
According to EN132400 (CCEE IEC60384-14 / 2:1993 and A1:1995; IEC60065)
CSA and UL 1414 up to 1µA; UL 1283 for 310V AC
03
Additional Products
P10, P37,5 and capacitance tolerance ±10% available on request.
Terms of Delivery
Minimum order quantity:
10nF...330nF: 1 PKU = 50 pieces
470nF...2,2µF: 1 PKU = 25 pieces
3,3µF...10µF: 1 PKU = 10 pieces
Form of delivery: Bulk
Manufacturer

http://www.kemet.com
