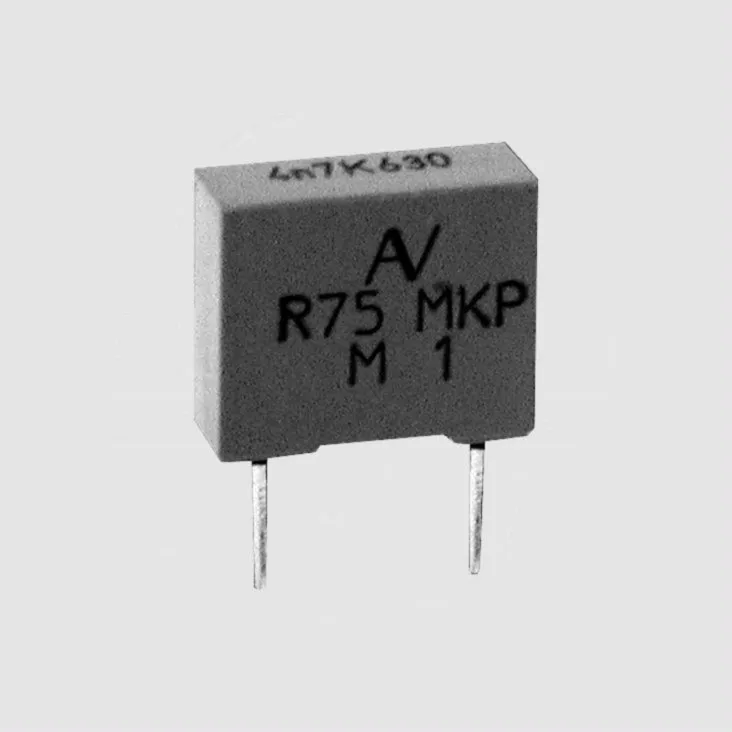

• Polypropylene film. Aluminium layer plates deposited by evaporation under vacuum, tinned wire leads
• Box material is solvent resistant and flame retardant according to UL94V-0
• Low attenuation
• S-Type in Multilayertechnology
|
 |
|
|
|
Rated Voltage (UN):
|
See Table
|
Test Voltage (2s; 25±5°C):
|
1,6xUN
|
Capacitance Tolerance (1 kHz):
|
±10%
|
Temperature Range:
|
-55...+105°C
|
Climatic Category (IEC60068-1):
|
55/100/56
|
Insulation Resistance
|
C�30nF:
|
³1x105MW(5x105MW*)
|
C³330nF:
|
³30000s(150000s*)
|
* = Typical Value
|
|
|
|
|
|
|
|
Part Nr.
|
CN
|
UN
|
Ueff
|
du/dt
|
K0
|
| |
[nF]
|
[V =]
|
[V AC]
|
[V/μs]
|
[V2/μs]
|
| C75NF001,0-630 |
1,0
|
630
|
250
|
600
|
760 E3
|
| C75NF002,2-630 |
2,2
|
630
|
250
|
600
|
760 E3
|
| C75NF003,3-630 |
3,3
|
630
|
250
|
600
|
760 E3
|
| C75NF004,7-630 |
4,7
|
630
|
250
|
600
|
760 E3
|
| C75NF004,7-630S |
4,7
|
630
|
250
|
600
|
760 E3
|
| C75NF006,8-630 |
6,8
|
630
|
250
|
600
|
760 E3
|
| C75NF010-630 |
10
|
630
|
250
|
600
|
760 E3
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage, du/dt = Pulse Strength, Max., K0 = Pulse Characteristic
|
|
Dissipation Factor Tan d (25 ±5°C)
|
|
|
|
|
|
kHz
|
C�100nF
|
100nFC�1μF
|
1μFC�4,7μF
|
C>4,7μF
|
| 1 |
�4x10-4
|
�6x10-4
|
�6x10-4
|
�10x10-4
|
| 10 |
�6x10-4
|
�8x10-4
|
-
|
-
|
| 100 |
�25x10-4
|
-
|
-
|
-
|
|
|
|
|
|
|
|
Part Nr.
|
B
|
H
|
L
|
P
|
Ø
|
| |
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| C75NF001,0-630 |
4
|
9
|
10,5
|
7,5
|
0,6
|
| C75NF002,2-630 |
4
|
9
|
10,5
|
7,5
|
0,6
|
| C75NF003,3-630 |
4
|
9
|
10,5
|
7,5
|
0,6
|
| C75NF004,7-630 |
4
|
9
|
10,5
|
7,5
|
0,6
|
| C75NF004,7-630S |
4
|
9
|
10
|
7,5
|
0,6
|
| C75NF006,8-630 |
4
|
9
|
10,5
|
7,5
|
0,6
|
| C75NF010-630 |
5
|
11
|
10,5
|
7,5
|
0,6
|
|
| Norms |
IEC60384-16
Quality assurance:EN ISO9001, QS 9000
|
|
| Labelling |
Manufacturer logo, series, dielectric code (MKP), rated capacitance, tolerance, DC rated voltage, manufacturing date code
|
|
|
