  6. SMD MKT Capacitor 2,2uF 10% 100V 5040

SMD MKT Capacitor 2,2uF 10% 100V 5040

Varenummer:
85-546
Varekode:
LDE002,2UF-100
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/100
Kr. 6,21
v/1000
Kr. 4,15

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28515/image_1920?unique=0248f6c https://elektroniklavpris.odoo.com/web/image/product.template/28515/image_1920?unique=0248f6c
Features
• Dielectric: polypropylene
• Aluminium layer plated deposited by evaporation under vacuum, tinned wire leads
• Stacked technology
• Low attenuation, low ESR
• High pulse rating
Technical Specifications
Rated Voltage (UN)::
 See Table
Test Voltage (2s, 25±5°C):
1,4xVN
Capacitance Tolerance:
 See Table
Pulse Rise Time (du/dt):
 100V/μs
Temperature Range:
 -55...+125°C1)
Climatic Category (IEC 60068-1):
 55/125/56
Insulation Resistance
C�0,33μF:
 ³1GW
C>0,33μF:
 ³400s
Dissipation Factor Tan d (1kHz):
 �80x10-4
1) For Temperatures of 105°C a Decreasing Factor of 1,25% per °C
Part Nr.
 CN
 UN
 Tol.
 L
 W
 HMax.
  [nF]
 [V=]
 [%]
 [mm]
 [mm]
 [mm]
LDE100NF-63 100
 63
 5
 3,2±0,3
 2,5±0,3
 2,1
LDE100NF-100 100
 100
 10
 4,5±0,5
 3,2±0,5
 2,3
LDE220NF-63 220
 63
 10
 4,5±0,5
 3,2±0,5
 2,3
LDE330NF-63 330
 63
 10
 5,7±0,5
 5,1±0,5
 1,8
LDE001UF-63 1000
 63
 10
 7,1±0,5
 6,1±0,5
 3,0
LDE002,2UF-100 2200
 100
 10
 12,7±0,6
 10,2±0,8
 3,6
CN = Rated Capacitance, UN = Rated Voltage DC, Tol. = Capacitance Tolerance

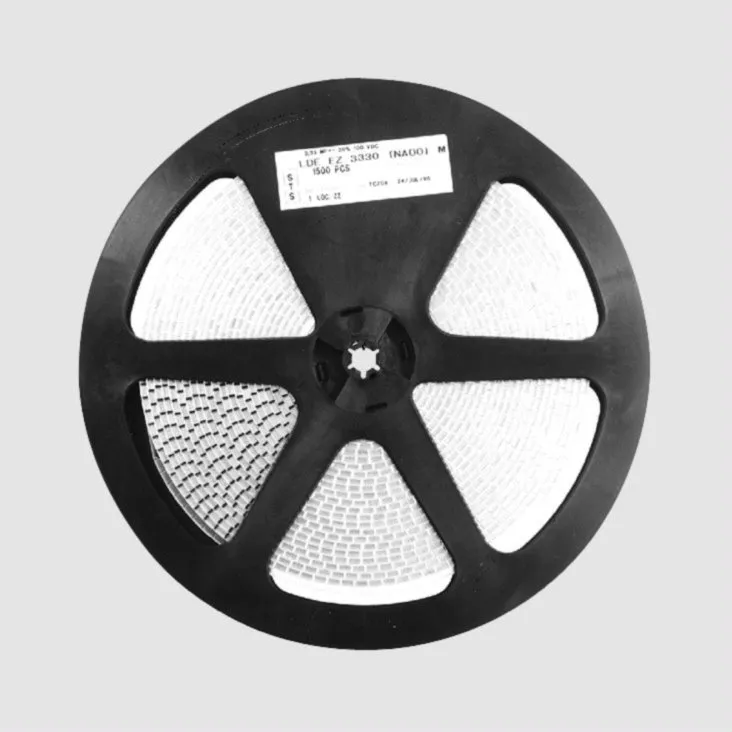

  Tape Segment1)
 Reel2)
  (= Minimum Order Quantity)
 For Orders of
  [Pieces]
 [Pieces]
LDE100NF-63 100
 2250
LDE100NF-100 100
 3000
LDE220NF-63 100
 3000
LDE330NF-63 100
 3000
LDE001UF-63 100
 2250
LDE002,2UF-100 25
 3000
1) = Tape Segment without Leader Tape and Reel, 2) = Film Reel, Ø 330 mm
Manufacturer

http://www.arcotronics.com
