SMD MKT Capacitor 220nF 10% 63V 1812
Varenummer:
85-542
Varekode:
LDE220NF-63
Vægt:
0 g
Lagerstatus:
Lager: 100 stk.
Gruppe:
C5621
KEMET/ARCOTRONICS SMD MKT Film Capacitors
Series: LDE
Stacked Technology, High Pulse Rating
Style: Taped
Rated Voltage: 63/100V DC
Tolerance: 5%, 10%
KEMET/ARCOTRONICS SMD MKT Film Capacitors
Series: LDE
Stacked Technology, High Pulse Rating
Style: Taped
Rated Voltage: 63/100V DC
Tolerance: 5%, 10%
| Features |
| • Dielectric: polypropylene • Aluminium layer plated deposited by evaporation under vacuum, tinned wire leads • Stacked technology • Low attenuation, low ESR • High pulse rating |
 |
| Technical Specifications |
| |
| Rated Voltage (UN): | See Table |
| Test Voltage (2s, 25±5°C): | 1,4xVN |
| Capacitance Tolerance: | See Table |
| Pulse Rise Time (du/dt): | 100V/µs |
| Temperature Range: | -55...+125°C1) |
| Climatic Category (IEC 60068-1): | 55/125/56 |
| Insulation Resistance | |
| C£0,33µF: | ³1GW |
| C>0,33µF: | ³400s |
| Dissipation Factor Tan d (1kHz): | £80x10-4 |
| 1) For Temperatures of 105°C a Decreasing Factor of 1,25% per °C | |
| |
| Part Nr. | CN | UN | Tol. | L | W | HMax. |
| [nF] | [V DC] | [%] | [mm] | [mm] | [mm] | |
| LDE100NF-63 | 100 | 63 | 5 | 3,2±0,3 | 2,5±0,3 | 2,1 |
| LDE100NF-100 | 100 | 100 | 10 | 4,5±0,5 | 3,2±0,5 | 2,3 |
| LDE220NF-63 | 220 | 63 | 10 | 4,5±0,5 | 3,2±0,5 | 2,3 |
| LDE330NF-63 | 330 | 63 | 10 | 5,7±0,5 | 5,1±0,5 | 1,8 |
| LDE001UF-63 | 1000 | 63 | 10 | 7,1±0,5 | 6,1±0,5 | 3,0 |
| CN = Rated Capacitance, UN = Rated Voltage DC, Tol. = Capacitance Tolerance | ||||||
| ||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = See table with "Tape Segment" |
|
| Tape Segment1) | Reel2) | |
| (= Minimum Order Quantity) | For Orders of | |
| [Pieces] | [Pieces] | |
| LDE100NF-63 | 100 | 2250 |
| LDE100NF-100 | 100 | 3000 |
| LDE220NF-63 | 100 | 3000 |
| LDE330NF-63 | 100 | 3000 |
| LDE001UF-63 | 100 | 2250 |

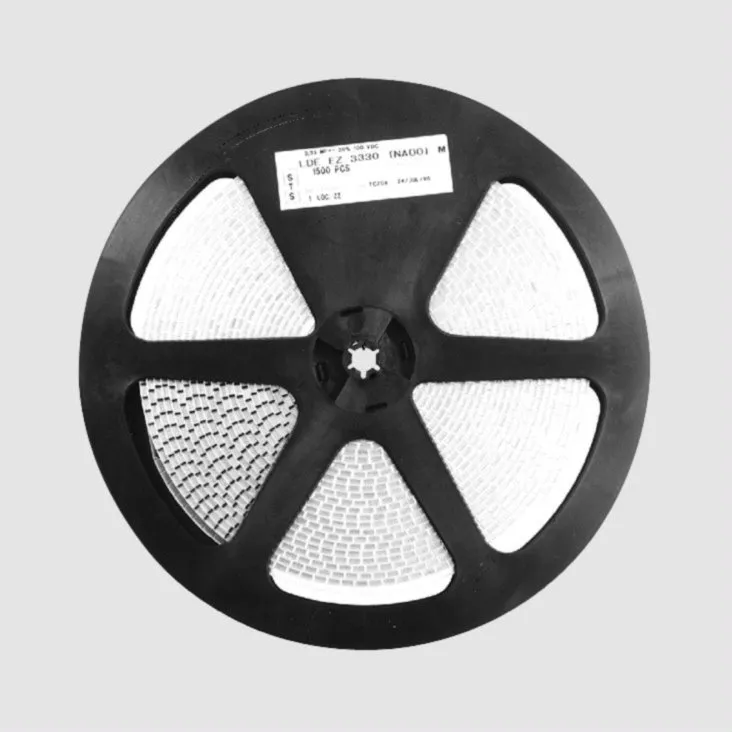

| 1) = Tape Segment without Leader Tape and Reel, 2) = Film Reel, Ø 330 mm | ||
| ||
| Manufacturer |
 |
| http://www.kemet.com |
|
