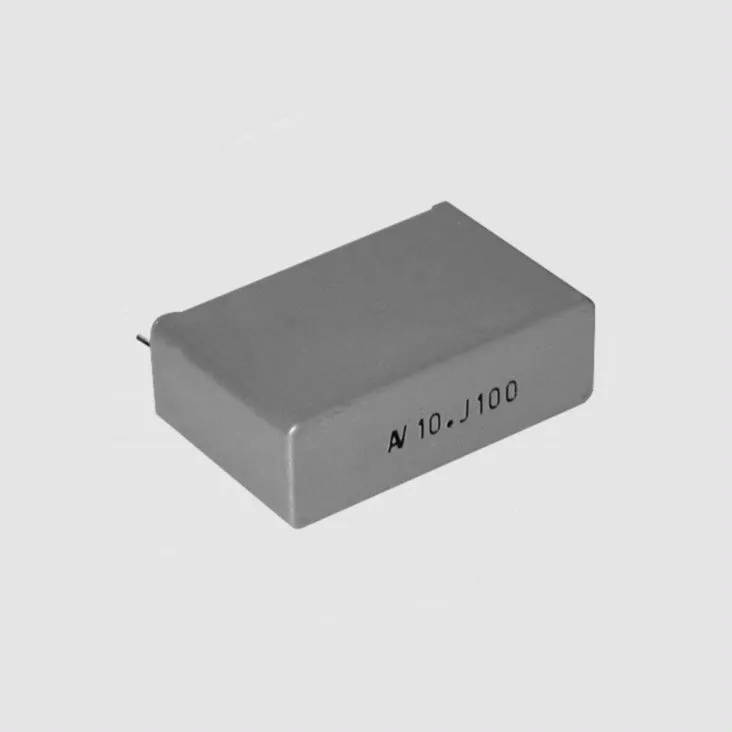

MKT Capacitor 22uF 63V 10% P27,5
Varenummer:
85-530
Varekode:
C22V63R27
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
C5572
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.60
Wound Technology
Style: Bulk
Rated Voltage: 63...400V DC
Tolerance: 10%
Pitch: 22,5/27,5mm
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.60
Wound Technology
Style: Bulk
Rated Voltage: 63...400V DC
Tolerance: 10%
Pitch: 22,5/27,5mm
| Features |
| • Dielectric polyester film. Aluminium layer plates deposited by evaporation under vacuum • Tinned wire leads • Box material is solvent resistant and flame retardant according to UL94V-0 • Low attentuation |
 |
| Application |
| Blocking, filter, time stability, coupling, decoupling, by-passing, interference suppression in low voltage applications. |
|
| Technical Specifications |
| |
| Rated Voltage (UN): | See Table |
| Test Voltage (2s; 25±5°C): | 1,6xUN |
| Capacitance Tolerance (1kHz): | ±10% |
| Temperature Range: | -55...+105°C |
| Climatic Category | |
| IEC 60068-1: | 55/100/56 |
| Insulation Resistance | |
| UN£100V | |
| C£0,33µF: | ³3,75GW |
| C>0,33µF: | ³1250s |
| UN>100V | |
| C£0,33µF: | ³30GW |
| C>0,33µF: | ³10000s |
| Reliability (MIL HDB 217) (40°C, 0,5xUN): | 5x10-9/h = 5fit1) |
| 1) 1fit = 1x10-9 Failure Components/Hour | |
| |
| Part Nr. | CN | UN | du/dt | B | H | L | P |
| [µF] | [V DC] | [V/µs] | [mm] | [mm] | [mm] | [mm] | |
| C1.0V400R27 | 1,0 | 400 | 8,5 | 9,0 | 17,0 | 32,0 | 27,5 |
| C2.2V250R27 | 2,2 | 250 | 2 | 7,0 | 16,0 | 26,5 | 27,5 |
| C3.3V100R22 | 3,3 | 100 | 1,5 | 7,0 | 16,0 | 26,5 | 22,5 |
| C4.7V63R22 | 4,7 | 63 | 1,5 | 9,0 | 17,0 | 32,0 | 22,5 |
| C4.7V100R27 | 4,7 | 100 | 1,5 | 9,0 | 17,0 | 32,0 | 27,5 |
| C6.8V100R27 | 6,8 | 100 | 1,5 | 11,0 | 20,0 | 32,0 | 27,5 |
| C10V100R27 | 10,0 | 100 | 1,5 | 11,0 | 20,0 | 32,0 | 27,5 |
| C22V63R27 | 22,0 | 63 | 1,0 | 13,0 | 22,0 | 32,0 | 27,5 |
| |||||||
| Dissipation Factor Tan d (25 ±5°C) |
| |||
| Measured at | |||
| 1kHz | 10kHz | ||
| C£1,0µF | 100x10-4 | 150x10-4 | |
| C>1,0µF | 100x10-4 | - | |
| CN = Rated Capacitance, UN = Rated Voltage DC, du/dt = Maximum Pulse Rise Time referring to UN and Pitch | |||
| |||
| Labelling |
| Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated form according to IEC62) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Form of delivery: Bulk Articles in bold print in stock, other articles available on request, delivery time approx. 13 weeks. |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
