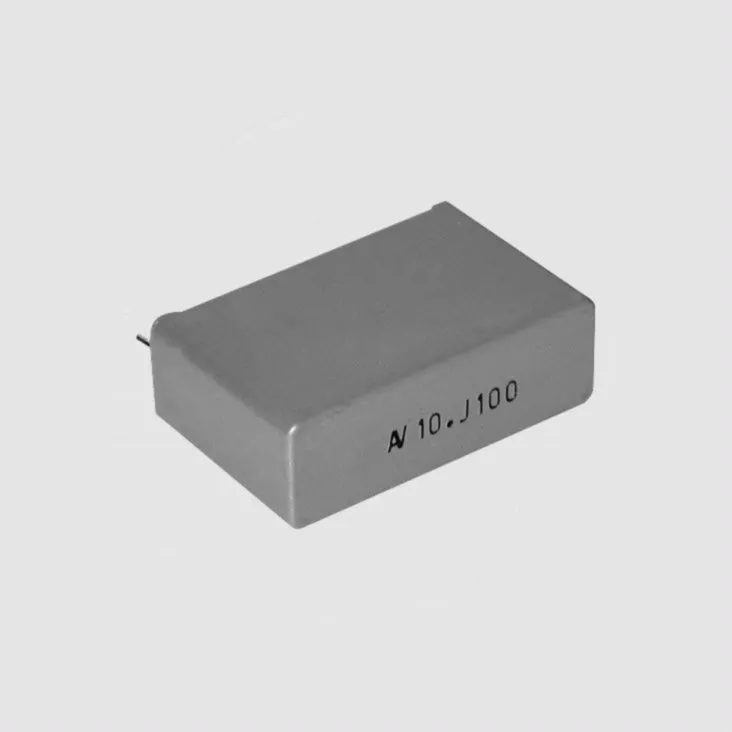

• Dielectric polyester film. Aluminium layer plates deposited by evaporation under vacuum
• Tinned wire leads
• Box material is solvent resistant and flame retardant according to UL94V-0
• Low attentuation
|
 |
Blocking, filter, time stability, coupling, decoupling, by-passing, interference suppression in low voltage applications.
|
|
|
|
|
Rated Voltage (UN):
|
See Table
|
Test Voltage (2s; 25±5°C):
|
1,6xUN
|
Capacitance Tolerance (1kHz):
|
±10%
|
Temperature Range:
|
-55...+105°C
|
Climatic Category
|
IEC 60068-1:
|
55/100/56
|
Insulation Resistance
|
UN�100V
|
C�0,33μF:
|
³3,75GW
|
C>0,33μF:
|
³1250s
|
UN>100V
|
C�0,33μF:
|
³30GW
|
C>0,33μF:
|
³10000s
|
Reliability (MIL HDB 217) (40°C, 0,5xUN):
|
5x10-9/h = 5fit1)
|
1) 1fit = 1x10-9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
|
Part Nr.
|
CN
|
UN
|
du/dt
|
B
|
H
|
L
|
P
|
| |
[μF]
|
[V=]
|
[V/μs]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| C1,0V400R27 |
1,0
|
400
|
8,5
|
9,0
|
17,0
|
32,0
|
27,5
|
| C2,2V250R27 |
2,2
|
250
|
2
|
7,0
|
16,0
|
26,5
|
27,5
|
| C3,3V100R22 |
3,3
|
100
|
1,5
|
7,0
|
16,0
|
26,5
|
22,5
|
| C4,7V63R22 |
4,7
|
63
|
1,5
|
9,0
|
17,0
|
32,0
|
22,5
|
| C4,7V100R27 |
4,7
|
100
|
1,5
|
9,0
|
17,0
|
32,0
|
27,5
|
| C6,8V100R27 |
6,8
|
100
|
1,5
|
11,0
|
20,0
|
32,0
|
27,5
|
| C10V100R27 |
10,0
|
100
|
1,5
|
11,0
|
20,0
|
32,0
|
27,5
|
| C22V63R27 |
22,0
|
63
|
1,0
|
13,0
|
22,0
|
32,0
|
27,5
|
|
Dissipation Factor Tan d (25 ±5°C)
|
|
|
|
|
| |
Measured at
|
|
|
| |
1kHz
|
10kHz
|
|
| C |
100x10-4
|
150x10-4
|
|
| C>1,0μF |
100x10-4
|
-
|
|
CN = Rated Capacitance, UN = Rated Voltage DC, du/dt = Maximum Pulse Rise Time referring to UN and Pitch
|
|
| Labelling |
Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated form according to IEC62)
|
|
|
