  6. MKT Capacitor 1,0nF 630V 10% P7,5

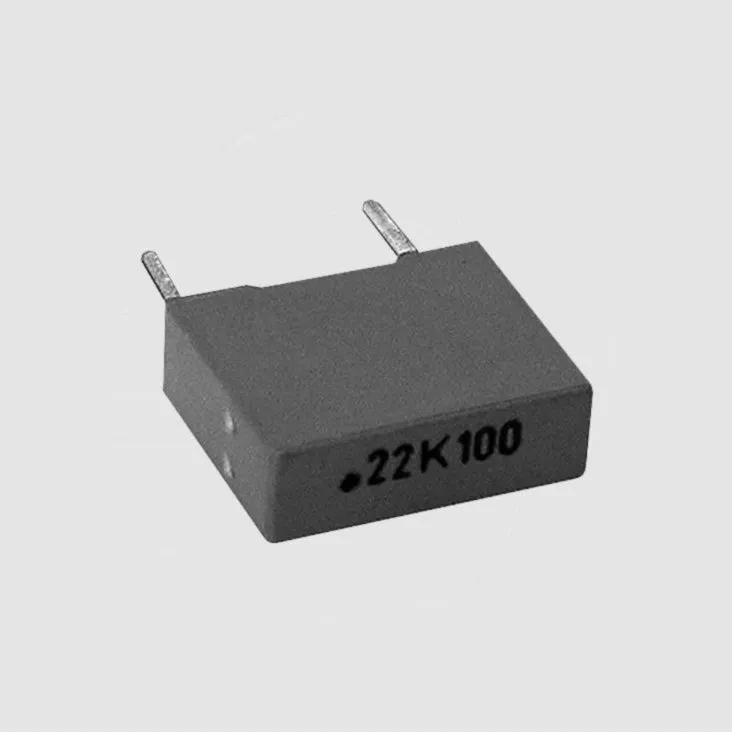

MKT Capacitor 1,0nF 630V 10% P7,5

Varenummer:
85-500
Varekode:
C67NF001
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 2,74 2.74 DKK kr 2,74 Inklusiv moms

kr 2,74 Inklusiv moms

Anmod os om en pris

v/10
Kr. 1,89
v/25
Kr. 1,54
v/100
Kr. 1,02
v/1000
Kr. 0,61

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28469/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28469/image_1920?unique=14ab7d4
Features
• Dielectric polyester film. Aluminium layer plates deposited by evaporation under vacuum
• Tinned wire leads
• Box material is solvent resistant and flame retardant according to UL94V-0
• Low attenuation
• S-Type in Multilayertechnology
Technical Specifications
Rated Voltage (UN):
 See Table
Test Voltage (2s; 25±55°C):
 1,6xUN
Capacitance Tolerance (1kHz):
 ±10%
Temperature Range:
 -55...+105°C
Climatic Category
IEC 60068-1:
 55/100/56
Insulation Resistance
UN>100V:
 ³30000MW
C�330nF:
 ³3750MW
C>330nF:
 ³1250s
Pulse Rise Time, Max. (du/dt)
630V DC:
 40V/μs
400V DC:
 30V/μs
250V DC:
 15V/μs
100V DC:
 6V/μs
63V DC:
 5V/μs
Reliability (MIL HDB 217) (40°C, 0,5xUN):
 �2x10-9/h= 2 fit1)
1) 1fit = 1x10-9 Failure Components/Hour
Part Nr.
 CN
 UN
 Ueff
 B
 H
 L
  [nF]
 [V=]
 [V~ ]
 [mm]
 [mm]
 [mm]
C67NF001 1,0
 630
 220
 2,5
 7,0
 10,0
C67NF001S 1,0
 630
 220
 3,0
 8,0
 10,0
C67NF002,2 2,2
 630
 220
 2,5
 7,0
 10,0
C67NF004,7 4,7
 400
 200
 2,5
 7,0
 10,0
C67NF010 10,0
 400
 200
 2,5
 7,0
 10,0
C67NF010S 10,0
 400
 200
 3,0
 8,0
 10,0
C67NF010-630 10,0
 630
 220
 4,0
 9,0
 10,5
C67NF022 22,0
 250
 160
 2,5
 7,0
 10,0
C67NF022-630 22,0
 630
 220
 6,0
 12,0
 10,5
C67NF047 47,0
 100
 63
 2,5
 7,0
 10,0
C67NF100 100,0
 100
 63
 3,5
 8,5
 10,5
C67NF100S 100,0
 100
 63
 3,0
 8,0
 10,0
C67NF220 220,0
 100
 63
 3,5
 8,5
 10,5
C67NF470 470,0
 63
 40
 4,0
 9,0
 10,5
C67NF470S 470,0
 63
 40
 3,0
 8,0
 10,0
C67UF1,0 1000,0
 63
 40
 6,0
 12,0
 10,5
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Labelling
Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated form according to IEC62)
Manufacturer

http://www.arcotronics.com
Kontakt os

Stregkode: 85500
Intern reference: 85500
Varekode: C67NF001
