  6. MKT Capacitor 1nF 100V 10% P5,08 Taped

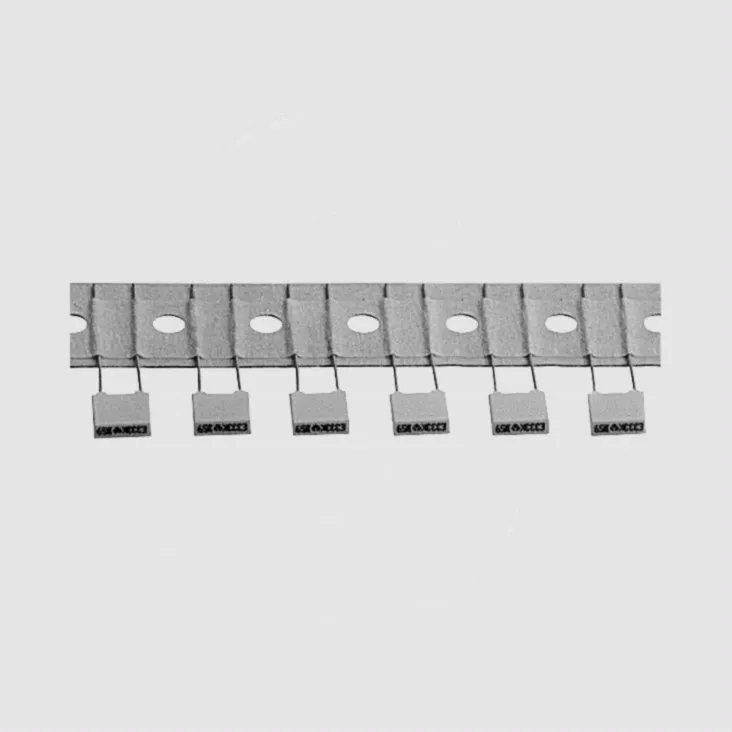

MKT Capacitor 1nF 100V 10% P5,08 Taped

Varenummer:
85-479
Varekode:
IRDG001NF
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 1,88 1.8800000000000001 DKK kr 1,88 Inklusiv moms

kr 1,88 Inklusiv moms

Anmod os om en pris

v/10
Kr. 1,17
v/25
Kr. 0,59
v/100
Kr. 0,47
v/1000
Kr. 0,35

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28449/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28449/image_1920?unique=14ab7d4
Features
• Metallized polyester film
• Self-healing properties
• Low inductance
• High pulse rating
Technical Specifications
Rated Voltage (UN):
 See Table
Test Voltage (2s, 25°C):
 1,6xUN
Capacitance Tolerance:
 ±10%
Temperature Range:
 -55...+100°C
Climatic Category
 55/100/56
Tangent of Loss Angle d
(1kHz, 1000h):
 �80x10-4
Insulation Resistance
CN�30nF:
 15GW
CN>330nF:
 RixCN³5000s
Pulse Rise Time, Max. (du/dt)
63V:
 150V/μs
100V:
 200V/μs
Part Nr.
 CN
 UN
 L
 H
 e
  [nF]
 [V=]
 [mm]
 [mm]
 [mm]
IRDG001NF 1,0
 100
 7,5
 6,5
 2,5
IRDG004,7NF 4,7
 100
 7,5
 6,5
 2,5
IRDG010NF 10
 100
 7,5
 6,5
 2,5
IRDG022NF 22
 100
 7,5
 6,5
 2,5
IRDG033NF 33
 63
 7,5
 6,5
 2,5
IRDG047NF 47
 63
 7,5
 6,5
 2,5
IRDG100NF 100
 63
 7,5
 6,5
 2,5
IRDG220NF 220
 63
 7,5
 8,0
 3,2
IRDG470NF 470
 63
 7,5
 8,0
 5,0
IRDG001UF 1000
 63
 7,5
 8,0
 5,0
CN = Rated Capacitance, UN = Rated Voltage DC
Labelling
Thomson logo, rated capacitance, tolerance (according to EIA-Code), rated voltage (V DC)
Manufacturer
AVX
http://www.avx.com
