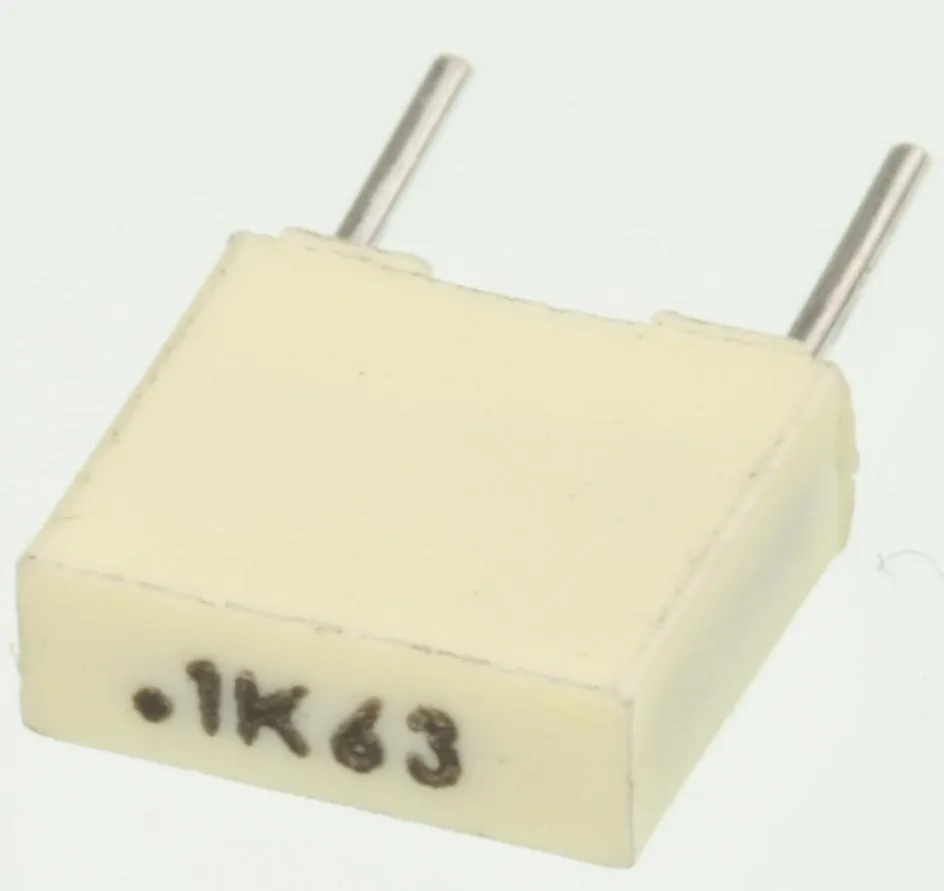

MKT Capacitor 100nF 63V 10% P5 R82
Varenummer:
85-456
Varekode:
C82NF100
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C5527
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.82
Stacked Technology, High Pulse Rating
Style: Taped
Rated Voltage: 63/100V DC
Tolerance: 10%
Pitch: 5mm
| Features |
| • Dielectric, polyester film • Box material is solvent resistant and flame retardant according to UL94V-0 • Tinned wire leads • Low attenuation • High pulse rating |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||
| Rated Voltage (UN): | See Table | Test Voltage (2s; 25±5°C): | 1,4xUN | Capacitance Tolerance (1kHz): | ±10% | Temperature Range: | -55...+105°C | Climatic Category | IEC 60068-1: | 55/100/56 | Insulation Resistance | C£330nF: | ³15GW | C>330nF: | ³5000s | C>1µF: | 1000s | Pulse Rise Time, Max. (du/dt) | 100V DC: | 100V/µs | 63V DC: | 70V/µs | Reliability (MIL HDB 217) (40°C, 0,5xUN): | 1,0fit1) | |||||
| 1) 1fit = 1x10 -9 Failure Components/Hour |
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| Part Nr. | CN | UN | Ueff | B | H | Ød | [nF] | [V DC] | [V AC] | [mm] | [mm] | [mm] | C82NF001.0 | 1,0 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF002.2 | 2,2 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF003.3 | 3,3 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF004.7 | 4,7 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF006.8 | 6,8 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF010 | 10 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF022 | 22 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF033 | 33 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF047 | 47 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF068 | 68 | 100 | 63 | 2,5 | 6,5 | 0,5 | C82NF100 | 100 | 63 | 40 | 2,5 | 6,5 | 0,5 | C82NF150 | 150 | 63 | 40 | 2,5 | 6,5 | 0,5 | C82NF220 | 220 | 63 | 40 | 2,5 | 6,5 | 0,5 | C82NF330 | 330 | 63 | 40 | 3,5 | 7,5 | 0,5...0,6 | C82NF470 | 470 | 63 | 40 | 3,5 | 7,5 | 0,5...0,6 | C82NF680 | 680 | 63 | 40 | 5,0 | 10,0 | 0,5...0,6 | C82UF001 | 1000 | 63 | 40 | 5,0 | 10,0 | 0,5...0,6 | ||||||||
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dissipation Factor Tand (25 ±5°C) |
|
|||||||||||||||||||
| Measured at | 1kHz | 10kHz | C£100nF | 80x10-4 | 120x10-4 | C>100nF | 80x10-4 | 120x10-4 | |||||||||||
|
|||||||||||||||||||
| Norms |
| Quality assurance: EN ISO90001, QS 9000 |
|
| Labelling |
| Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated in accordance with IEC62) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces Form of delivery: Taped Delivery: Ammopack is possible for the following amounts ordered: B = 2,5mm: 3500 pieces, B = 3,5mm: 2500 pieces, B = 5,0mm: 680nF 1900 pieces and 1uF 1700 pieces |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
