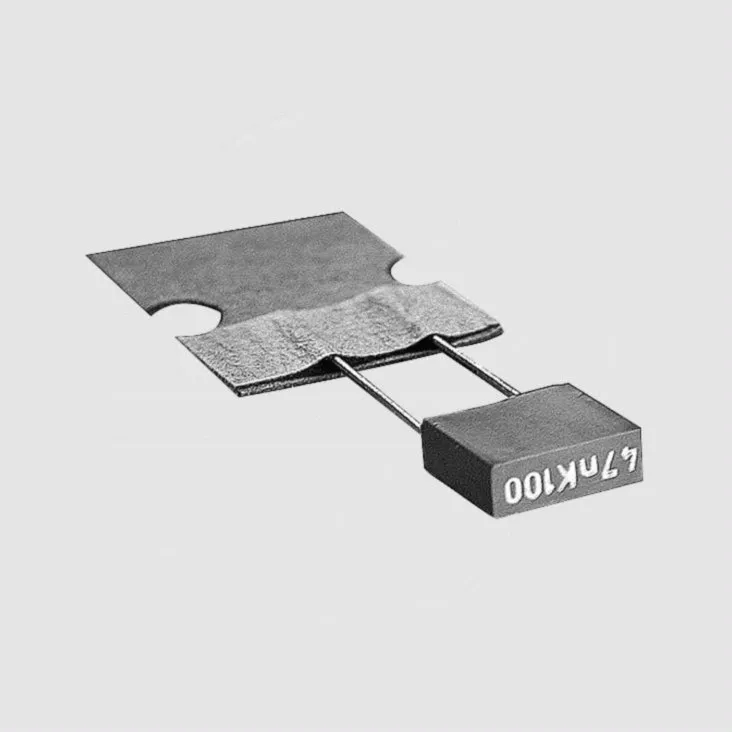

MKT Capacitor 47nF 100V 10% P5 R82 Tape

Varenummer:
85-454
Varekode:
C82NF047
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 1,35 1.35 DKK kr 1,35 Inklusiv moms

kr 1,35 Inklusiv moms

Anmod os om en pris

v/10
Kr. 0,93
v/25
Kr. 0,76
v/100
Kr. 0,51
v/1000
Kr. 0,30

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28424/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28424/image_1920?unique=14ab7d4
Gruppe: C5527
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.82
Stacked Technology, High Pulse Rating
Style: Taped
Rated Voltage: 63/100V DC
Tolerance: 10%
Pitch: 5mm
Features
• Dielectric, polyester film
• Box material is solvent resistant and flame retardant according to UL94V-0
• Tinned wire leads
• Low attenuation
• High pulse rating
Technical Specifications
Rated Voltage (UN):
See Table
Test Voltage (2s; 25±5°C):
1,4xUN
Capacitance Tolerance (1kHz):
±10%
Temperature Range:
-55...+105°C
Climatic Category
IEC 60068-1:
55/100/56
Insulation Resistance
C£330nF:
³15GW
C>330nF:
³5000s
C>1µF:
1000s
Pulse Rise Time, Max. (du/dt)
100V DC:
100V/µs
63V DC:
70V/µs
Reliability (MIL HDB 217) (40°C, 0,5xUN):
1,0fit1)
1) 1fit = 1x10 -9 Failure Components/Hour

Part Nr.
CN
UN
Ueff
B
H
Ød
 [nF]
[V DC]
[V AC]
[mm]
[mm]
[mm]
C82NF001.01,0
100
63
2,5
6,5
0,5
C82NF002.22,2
100
63
2,5
6,5
0,5
C82NF003.33,3
100
63
2,5
6,5
0,5
C82NF004.74,7
100
63
2,5
6,5
0,5
C82NF006.86,8
100
63
2,5
6,5
0,5
C82NF01010
100
63
2,5
6,5
0,5
C82NF02222
100
63
2,5
6,5
0,5
C82NF03333
100
63
2,5
6,5
0,5
C82NF04747
100
63
2,5
6,5
0,5
C82NF06868
100
63
2,5
6,5
0,5
C82NF100100
63
40
2,5
6,5
0,5
C82NF150150
63
40
2,5
6,5
0,5
C82NF220220
63
40
2,5
6,5
0,5
C82NF330330
63
40
3,5
7,5
0,5...0,6
C82NF470470
63
40
3,5
7,5
0,5...0,6
C82NF680680
63
40
5,0
10,0
0,5...0,6
C82UF0011000
63
40
5,0
10,0
0,5...0,6
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Dissipation Factor Tand (25 ±5°C)
 Measured at

 1kHz
10kHz

C£100nF
80x10-4
120x10-4

C>100nF
80x10-4
120x10-4

Norms
Quality assurance: EN ISO90001, QS 9000
Labelling
Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated in accordance with IEC62)
Terms of Delivery
Minimum order quantity: 1 PKU = 100 pieces
Form of delivery: Taped
Delivery: Ammopack is possible for the following amounts ordered: B = 2,5mm: 3500 pieces, B = 3,5mm: 2500 pieces, B = 5,0mm: 680nF 1900 pieces and 1uF 1700 pieces
Manufacturer

http://www.kemet.com
