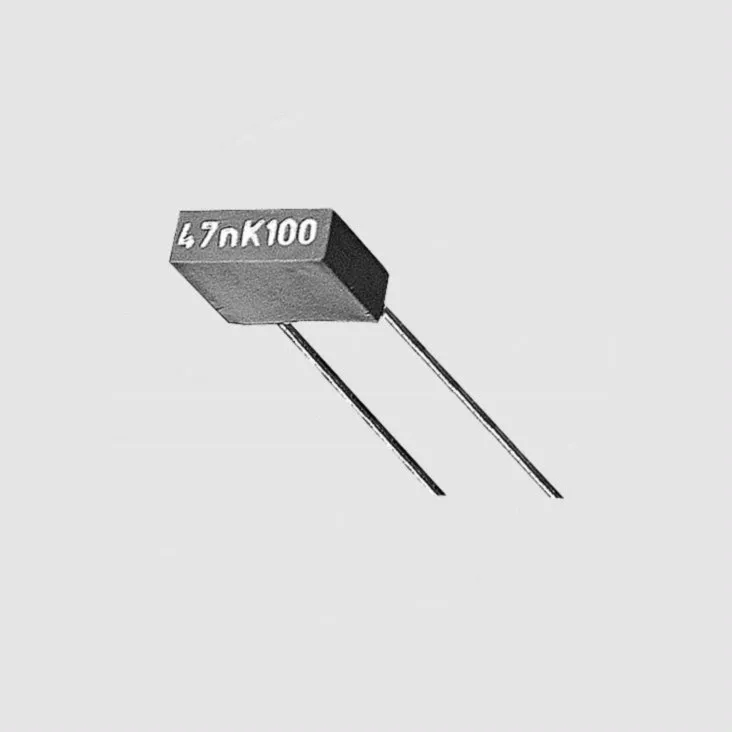

MKT Capacitor 47nF 100V 10% P5 R82 Bulk

Varenummer:
85-437
Varekode:
C82NF047L
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 1,35 1.35 DKK kr 1,35 Inklusiv moms

kr 1,35 Inklusiv moms

Anmod os om en pris

v/10
Kr. 0,93
v/25
Kr. 0,76
v/100
Kr. 0,51
v/1000
Kr. 0,30

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28407/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/28407/image_1920?unique=14ab7d4
Gruppe: C5525
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.82
Stacked High Pulse Rating
Style: Bulk
Rated Voltage: 63/100V DC
Tolerance: 10%
Pitch: 5mm
Features
• Dielectric, polyester film (polyethylene terephthalate)
• Box material is solvent resistant and flame retardant according to UL94V-0
• Tinned wire leads
• Low attenuation
• High pulse rating
Technical Specifications
Rated Voltage (UN):
See Table
Test Voltage (2s; 25±5°C):
1,4xUN
Capacitance Tolerance (1kHz):
±10%
Temperature Range:
-55...+105°C
Climatic Category
IEC 60068-1:
55/100/56
Insulation Resistance
C£330nF:
³15GW
C>330nF:
³5000s
C>1µF:
1000s
Pulse Rise Time, Max. (du/dt)
100V DC:
100V/µs
63V DC:
70V/µs
Reliability (MIL HDB 217) (40°C, 0,5 x UN):
1,0fit1)
1) 1fit = 1x10 -9 Failure Components/Hour

Part Nr.
CN
UN
Ueff
B
H
Ød
 [nF]
[V DC]
[V AC]
[mm]
[mm]
[mm]
C82NF001.0L1,0
100
63
2,5
6,5
0,5
C82NF002.2L2,2
100
63
2,5
6,5
0,5
C82NF003.3L3,3
100
63
2,5
6,5
0,5
C82NF004.7L4,7
100
63
2,5
6,5
0,5
C82NF006.8L6,8
100
63
2,5
6,5
0,5
C82NF010L10
100
63
2,5
6,5
0,5
C82NF022L22
100
63
2,5
6,5
0,5
C82NF047L47
100
63
2,5
6,5
0,5
C82NF068L68
100
63
2,5
6,5
0,5
C82NF100L100
63
40
2,5
6,5
0,5
C82NF150L150
63
40
2,5
6,5
0,5
C82NF220L220
63
40
2,5
6,5
0,5
C82NF330L330
63
40
3,5
7,5
0,5...0,6
C82NF470L470
63
40
3,5
7,5
0,5...0,6
C82NF680L680
63
40
5,0
10,0
0,5...0,6
C82UF001L1000
63
40
5,0
10,0
0,5...0,6
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Dissipation Factor Tand (25 ±5°C)
 Measured at

 1kHz
10kHz

C£100nF
80x10-4
120x10-4

C>100nF
80x10-4
120x10-4

Norms
Quality assurance: EN ISO90001, QS 9000
Labelling
Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated form in accordance with IEC62)
Terms of Delivery
Minimum order quantity: 1 PKU = 100 pieces
Form of delivery: Bulk
Manufacturer

http://www.kemet.com
