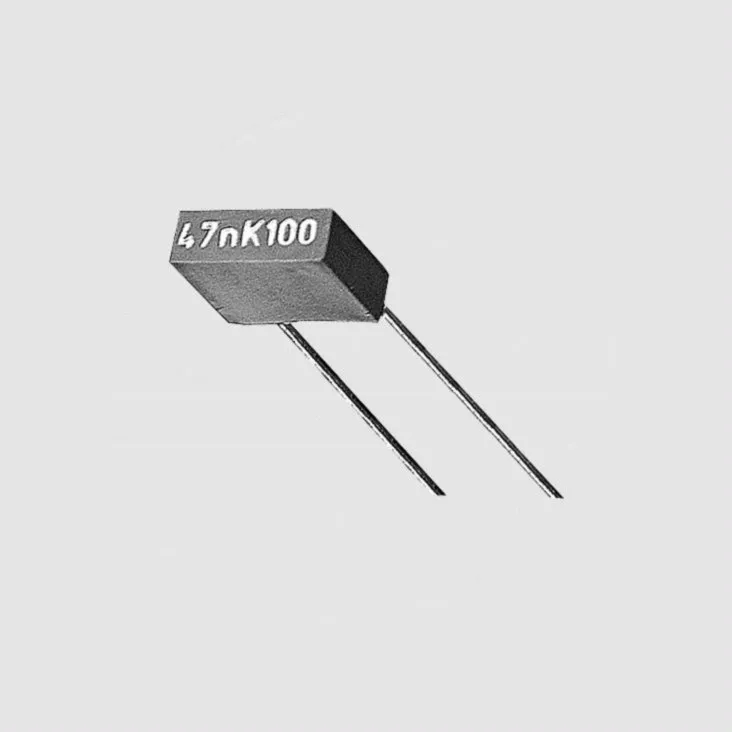

• Dielectric, polyester film (polyethylene terephthalate)
• Box material is solvent resistant and flame retardant according to UL94V-0
• Tinned wire leads
• Low attenuation
• High pulse rating
|
 |
|
|
|
Rated Voltage (UN):
|
See Table
|
Test Voltage (2s; 25±5°C):
|
1,4xUN
|
Capacitance Tolerance (1kHz):
|
±10%
|
Temperature Range:
|
-55...+105°C
|
Climatic Category
|
IEC 60068-1:
|
55/100/56
|
Insulation Resistance
|
C�330nF:
|
³15GW
|
C>330nF:
|
³5000s
|
C>1μF:
|
1000s
|
Pulse Rise Time, Max. (du/dt)
|
100V DC:
|
100V/μs
|
63V DC:
|
70V/μs
|
Reliability (MIL HDB 217) (40°C, 0,5 x UN):
|
1,0fit1)
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
Part Nr.
|
CN
|
UN
|
Ueff
|
B
|
H
|
Ød
|
| |
[nF]
|
[V=]
|
[V~]
|
|
[mm]
|
|
| C82NF001,0L |
1,0
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF002,2L |
2,2
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF003,3L |
3,3
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF004,7L |
4,7
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF006,8L |
6,8
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF010L |
10
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF022L |
22
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF047L |
47
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF068L |
68
|
100
|
63
|
2,5
|
6,5
|
0,5
|
| C82NF100L |
100
|
63
|
40
|
2,5
|
6,5
|
0,5
|
| C82NF150L |
150
|
63
|
40
|
2,5
|
6,5
|
0,5
|
| C82NF220L |
220
|
63
|
40
|
2,5
|
6,5
|
0,5
|
| C82NF330L |
330
|
63
|
40
|
3,5
|
7,5
|
0,5...0,6
|
| C82NF470L |
470
|
63
|
40
|
3,5
|
7,5
|
0,5...0,6
|
| C82NF680L |
680
|
63
|
40
|
5,0
|
10,0
|
0,5...0,6
|
| C82UF001L |
1000
|
63
|
40
|
5,0
|
10,0
|
0,5...0,6
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
|
|
Dissipation Factor Tand (25 ±5°C)
|
|
|
|
|
| |
Measured at
|
|
|
| |
1kHz
|
10kHz
|
|
| C |
80x10-4
|
120x10-4
|
|
| C>100nF |
80x10-4
|
120x10-4
|
|
|
| Norms |
Quality assurance: EN ISO90001, QS 9000
|
|
| Labelling |
Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated form in accordance with IEC62)
|
|
|
