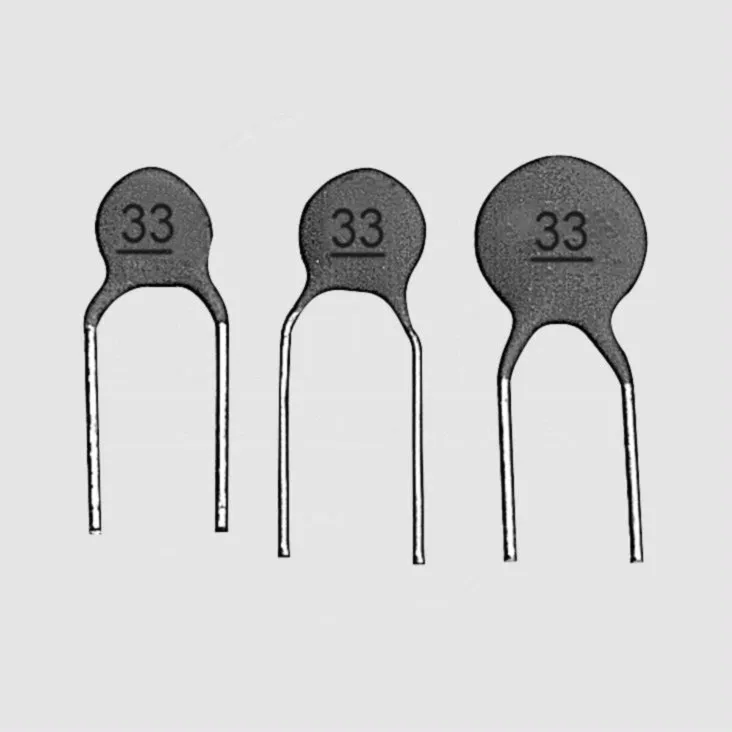

Cer Capacitor 1,2pF 100V P5,08 5% NP0
Varenummer:
85-199
Varekode:
KEPF001,2
Vægt:
0 g
Lagerstatus:
Ikke på lager
Technical Specifications
 |
|
| Rated Voltage: | 500V |
| Pitch: | 5,08mm ±1,0mm |
| Insulation Resistance, Min., Type 1: | 10MOhm |
| Insulation Resistance, Min., Type 2 | |
| 20nF: | 10MOhm |
| 20nF...100nF: | 7,5MOhm |
| Insulation Resistance, Min., Type 3 | |
| 16V: | 100MOhm |
| 25V, 50V: | 1,0MOhm |
|
|
| Part Nr. | C | C | Tolerance | Type | Mat. | D |
| [nF] | [pF] | [%] | [mm] | |||
| KEPF003.9-500V | 0,0039 | 3,9 | ±0,25pF | 1 | NPO | 6,5 |
| KEPF005.6-500V | 0,0056 | 5,6 | ±0,25pF | 1 | NPO | 6,5 |
| KEPF010-500V | 0,01 | 10 | ±5 | 1 | NPO | 6,5 |
| KEPF022-500V | 0,022 | 22 | ±10 | 1 | NPO | 5,1 |
| KEPF027-500V | 0,027 | 27 | ±10 | 1 | SL | 6,5 |
| KEPF033-500V | 0,033 | 33 | ±5 | 1 | SL | 6,5 |
| KEPF047-500V | 0,047 | 47 | ±5 | 1 | SL | 6,5 |
| KEPF068-500V | 0,068 | 68 | ±5 | 1 | SL | 6,5 |
| KEPF100-500V | 0,1 | 100 | ±10 | 2 | Y5P | 6,5 |
| KEPF150-500V | 0,15 | 150 | ±10 | 2 | Y5P | 6,5 |
| KEPF180-500V | 0,18 | 180 | ±10 | 2 | Y5P | 6,5 |
| KEPF220-500V | 0,22 | 220 | ±10 | 2 | Y5P | 6,5 |
| KEPF330-500V | 0,33 | 330 | ±10 | 2 | Y5P | 6,5 |
| KEPF470-500V | 0,47 | 470 | ±10 | 2 | Y5P | 6,5 |
| KEPF820-500V | 0,82 | 820 | ±20 | 2 | Y5P | 6,5 |
| KENF001-500V | 1,0 | 1000 | ±20 | 2 | Z5U | 6,5 |
| KENF001.5-500V | 1,5 | 1500 | ±10 | 3 | Y5P | 7,1 |
| KENF002.2-500V | 2,2 | 2200 | ±20 | 2 | Z5U | 7,1 |
| KENF003.3-500V | 3,3 | 3300 | +80/-20 | 2 | Z5U | 7,1 |
| KENF004.7-500V | 4,7 | 4700 | ±20 | 2 | Z5U | 7,1 |
| KENF010-500V | 10,0 | 10000 | +80/-20 | 2 | Z5V | 8,1 |
| C = Rated Capacitance, Mat. = Type of Ceramic, D = Disc Diameter | ||||||
|
||||||
Stregkode:
85199
Intern reference:
85199
Varekode:
KEPF001,2
