Material:
|
Zinc Oxide (ZnO)
|
Storage Temperature:
|
-40...+125°C
|
Temperature Range, Max.:
|
+85°C
|
Working Surface Temperature, Max.:
|
+115°C
|
Voltage/Temperature Coefficient:
|
-0,05%/°C
|
Test Voltage:
|
2500V
|
Response Time:
|
25ns
|
|
|
|
|
|
|
Part Nr.
|
URMS
|
URMS
|
UV
|
US
|
| |
[V~]
|
[V=]
|
[V=]
|
[V]
|
| VE_140K |
14
|
18
|
22
|
43
|
| VE_250K |
25
|
31
|
39
|
77
|
| VE_300K |
30
|
38
|
47
|
93
|
| VE_600K |
60
|
80
|
100
|
165
|
| VE_231K |
230
|
300
|
360
|
595
|
| VE_251K |
250
|
320
|
390
|
645
|
| VE_275K |
275
|
350
|
430
|
710
|
| VE_301K |
300
|
385
|
470
|
775
|
URMS = Max. Operating Voltage, UV = Varistor Voltage at 1mA, VDC, ±10%, US = Clamping Voltage 8/20μs
|
|
|
|
|
|
|
|
|
|
Part Nr.
|
IMax.
|
IP
|
E1
|
E10
|
C
|
NM
|
e
|
| |
[A]
|
[A]
|
[J]
|
[J]
|
[pF]
|
[W]
|
[mm]
|
| VE09M00140K |
125
|
2,5
|
0,9
|
0,6
|
1900
|
0,02
|
3,6
|
| VE13M00140K |
250
|
5,0
|
2,0
|
1,3
|
4000
|
0,05
|
4,3
|
| VE07M00250K |
50
|
1,0
|
0,7
|
0,4
|
660
|
0,01
|
3,6
|
| VE09M00250K |
125
|
2,5
|
1,6
|
1,0
|
1250
|
0,02
|
3,6
|
| VE09M00300K |
125
|
2,5
|
2,0
|
1,0
|
1050
|
0,02
|
3,8
|
| VE13M00300K |
250
|
5,0
|
4,4
|
4,0
|
2150
|
0,05
|
4,4
|
| VE17M00300K |
500
|
10,0
|
9,0
|
7,5
|
3500
|
0,1
|
4,4
|
| VE09M00600K |
600
|
10,0
|
5,0
|
1,7
|
440
|
0,2
|
4,7
|
| VE13M00600K |
1250
|
25,0
|
10,0
|
7,0
|
870
|
0,4
|
5,1
|
| VE17M00600K |
2500
|
50,0
|
20,0
|
14,0
|
2200
|
0,6
|
5,1
|
| VE07M00231K |
200
|
5,0
|
9,0
|
2,4
|
55
|
0,1
|
6,2
|
| VE09M00231K |
600
|
10,0
|
20,0
|
6,0
|
140
|
0,2
|
6,2
|
| VE13M00231K |
1250
|
25,0
|
35,0
|
14,3
|
250
|
0,4
|
6,7
|
| VE17M00231K |
2500
|
50,0
|
70,0
|
38,0
|
550
|
0,6
|
6,7
|
| VE07M00251K |
200
|
5,0
|
10,0
|
2,8
|
50
|
0,1
|
6,4
|
| VE09M00251K |
600
|
10,0
|
21,0
|
7,3
|
130
|
0,2
|
6,4
|
| VE13M00251K |
1250
|
25,0
|
40,0
|
19,0
|
230
|
0,4
|
6,8
|
| VE17M00251K |
2500
|
50,0
|
72,0
|
39,0
|
500
|
0,6
|
6,8
|
| VE07M00275K |
200
|
5,0
|
11,0
|
3,0
|
45
|
0,1
|
6,7
|
| VE09M00275K |
600
|
10,0
|
23,0
|
7,4
|
120
|
0,2
|
6,7
|
| VE13M00275K |
1250
|
25,0
|
45,0
|
20,0
|
210
|
0,4
|
7,2
|
| VE17M00275K |
2500
|
50,0
|
75,0
|
40,0
|
450
|
0,6
|
7,2
|
| VE09M00301K |
600
|
10,0
|
25,0
|
7,5
|
100
|
0,2
|
7,0
|
| VE13M00301K |
1250
|
25,0
|
45,0
|
20,0
|
180
|
0,4
|
7,5
|
* = VDE Certified, IMax. = Max. Permissible Peak Current (8/20 μs), 2 Surges, IP = Max. Clamping Current, E1 = Energy Absorption 10/1000 μs, 1 Surge, E10 = Energy Absorption 10/1000 μs, 10 Surges
|
|
|
|
|
|
|
|
Part Nr.
|
DMax.
|
HMax.
|
E
|
Ø
|
e
|
| |
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| VE07_ |
7
|
10
|
5,08±0,8
|
0,6+10%/-0,05
|
s. o.
|
| VE09_ |
9
|
12
|
5,08±0,8
|
0,6+10%/-0,05
|
s. o.
|
| VE13_ |
13
|
16
|
7,62±0,8
|
0,6+10%/-0,05
|
s. o.
|
| VE17_ |
17
|
20
|
7,62±0,8
|
0,8+10%/-0,05
|
s. o.
|
|
| Norms |
CECC42.000/42.200
|
|
| Labelling |

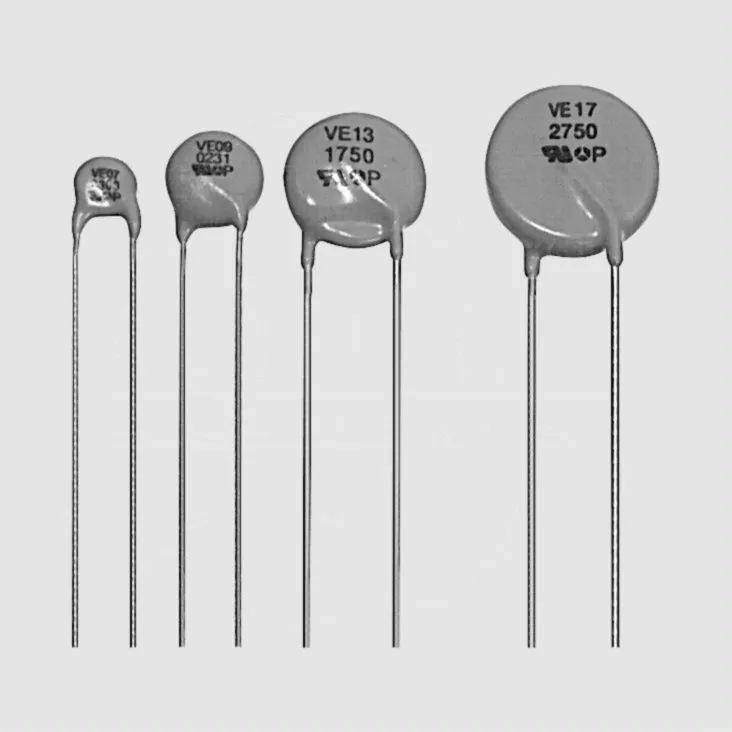

Part incl. disc diameter (e. g. VE17_), Operating Rated Voltage V AC in accordance with EIA-Code, Thomson-Logo, Approvals, LOT-number (only VE13_, VE17_)
|
|
|
