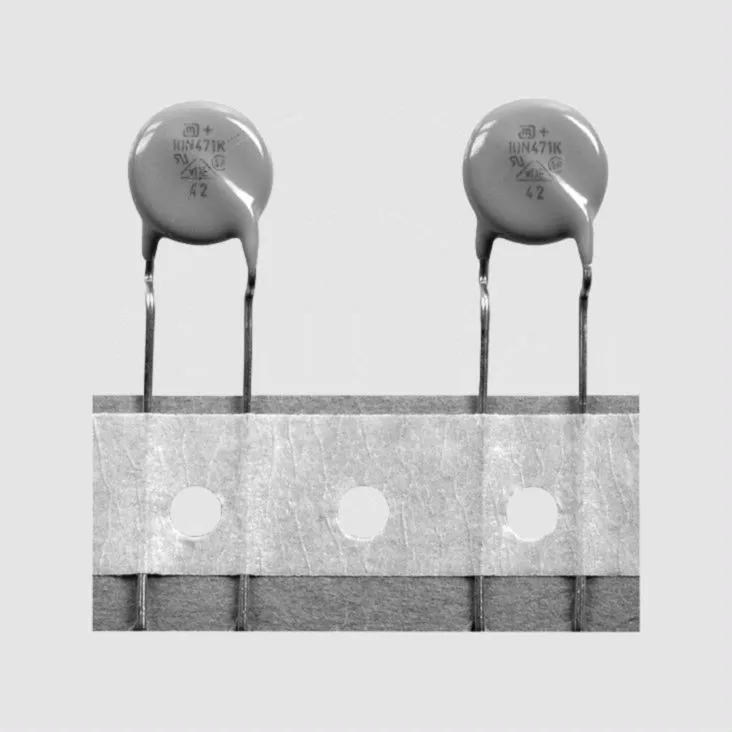

Varistor 420V 680V 6500A

Varenummer:
85-146
Varekode:
JVR20N681K
Vægt:
10 g
Lagerstatus:
Lager: 58 stk.

kr 29,81 29.810000000000002 DKK kr 29,81 Inklusiv moms

kr 29,81 Inklusiv moms

Anmod os om en pris

v/10
Kr. 12,42
v/25
Kr. 9,94
v/100
Kr. 6,21
v/1000
Kr. 2,49

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/28117/image_1920?unique=c44b296 https://elektroniklavpris.odoo.com/web/image/product.template/28117/image_1920?unique=c44b296

Gruppe: C4215
JOYIN Metal Oxide Varistors
Series: JVR
Style: Taped, Bulk
Pitch: 5/7,5/10mm

Features
• Used as voltage-dependent resistors (VDR's) to protect electronic devices
• They protect against overload build-up and protect valuable equipment from power surge damage
• Surge voltages are absorbed in the varistor
Selection Criteria
• The maximum operating voltage must be lower than the varistor voltage.
Technical Specifications
    Material: Zinc Oxide (ZnO) Storage Temperature: -40...+125°C Operating Temperature, Max.: +85°C Working Surface Temperature, Max.: +115°C Response Time, Max.: 25ns Voltage/Temperature Coefficient: -0,05%/°C Insulation Resistance 500V: >1000MW
            Part Nr. URMS URMS UV DUV US JVR_N_ [V AC] [V DC] [V] [%] [V] 101K 60 85 100 ±10 175 180K 11 14 18 ±10 40 201K 130 170 200 ±10 355 220K 14 18 22 ±10 43 241K 150 200 240 +10 395 390K 25 31 39 ±10 77 391K 250 390 350 ±10 650 431K 275 430 430 ±10 710 470K 30 38 47 ±10 93 471K 300 470 470 ±10 775 681K 420 560 680 ±10 1120 751K 460 615 750 ±10 1240 781K 485 640 780 ±10 1290 821K 510 670 820 ±10 1355 911K 550 745 910 ±10 1500
URMS = Max. Operating Voltage , UV = Varistor Voltage at 1 mA, DUV = Tolerance of Varistor Voltage, US = Clamping Voltage
            Part Nr. IMax. IMax. PRated E T   1 Impulse 2 Impulse         [A] [A] [W] [J] [mm] JVR05N180K 100 50 0,01 0,6 4,5 JVR05N390K 100 50 0,01 1,2 4,7 JVR05N560K 100 50 0,01 1,8 5,0 JVR05N101K 400 200 0,1 3,5 3,4 JVR05N391K 400 200 0,1 8,4 4,4 JVR05N431K 400 200 0,1 16,5 5,5 JVR07N220K 250 125 0,02 1,4 4,5 JVR07N390K 250 125 0,02 2,4 4,7 JVR07N470K 250 125 0,02 3,0 5,0 JVR07N101K 1200 600 0,25 7,0 3,4 JVR07N201K 1200 600 0,25 14,3 4,2 JVR07N241K 1200 600 0,25 16,8 4,4 JVR07N391K 1200 600 0,25 30,0 5,3 JVR07N431K 1200 600 0,25 33,0 5,5 JVR07N471K 1200 600 0,25 35,0 5,8 JVR10N220K 500 250 0,05 2,7 4,9 JVR10M390K 500 250 0,05 4,7 5,1 JVR10N101K 2500 1250 0,4 14,0 3,9 JVR10N241K 2500 1250 0,4 33,5 4,8 JVR10N391K 2500 1250 0,4 60,0 5,7 JVR10N431K 2500 1250 0,4 66,0 5,9 JVR10N471K 2500 1250 0,4 70,0 6,2 JVR14N390K 1000 500 0,1 9,4 5,2 JVR14N470K 1000 500 0,1 12,0 5,6 JVR14N101K 4500 2500 0,6 28,0 4,0 JVR14N241K 4500 2500 0,6 67,0 5,0 JVR14N391K 4500 2500 0,6 120,0 5,9 JVR14N431K 4500 2500 0,6 132,0 6,1 JVR14N471K 4500 2500 0,6 140,0 6,4 JVR20N241K 6500 4000 1,0 134,0 5,5 JVR20N391K 6500 4000 1,0 240,0 6,4 JVR20N431K 6500 4000 1,0 264,0 6,6 JVR20N471K 6500 4000 1,0 280,0 6,9 JVR20N681K 6500 4000 1,0 344,0 8,1 JVR20N751K 6500 4000 1,0 360,0 8,5 JVR20N781K 6500 4000 1,0 368,0 8,7 JVR20N821K 6500 4000 1,0 376,0 8,9 JVR20N911K 6500 4000 1,0 408,0 9,5
1) , 2) , IMax.= Max. Surge Current (8 x 20µs), PRated = Rated Power, E = Energy Absorption, 2 ms, T = Disc Thickness
Dimensions
                Part Nr. DMax. Ø d F HMax. H1Max. LMin. TMax. JVR_ [mm] [mm] [mm] [mm] [mm] [mm] [mm] 05_ 7,5 0,6±0,05 5,0±1 11,0 3,5 24,0 s. o. 07_ 9,0 0,6±0,05 5,0±1 13,0 3,5 24,0 s. o. 10_ 12,5 0,6/0,8±0,05 5,0/7,5±1 18,0 5,0 24,0 s. o. 14_ 16,5 0,8±0,05 7,5±1 22,0 5,0 24,0 s. o. 20_ 23,0 1,0±0,05 10,0±1 28,0 5,0 24,0 s. o.
Application and Selection
    JVR Varistors in Unearthed Circuits Power Supply Voltage Type 200V AC JVR_ _N391K JVR_ _N431K JVR_ _N471K 100V AC JVR_ _N201K JVR_ _N221K JVR_ _N241K JVR_ _N271K 12V DC JVR_ _N220K 48V DC JVR_ _N390K
    JVR Varistors in Earthed and Unearthed Circuits Power Supply Voltage Type 100V AC, 200V AC JVR_ _N431K JVR_ _N471K JVR_ _N751K
    JVR Varistors in Switching Circuits Power Supply Voltage Type 12V AC JVR_ _N220K 24V DC JVR_ _N390K 100V AC JVR_ _N201K JVR_ _N221K JVR_ _N241K
