  6. Potentiometer 16/6 Mono Log 1M

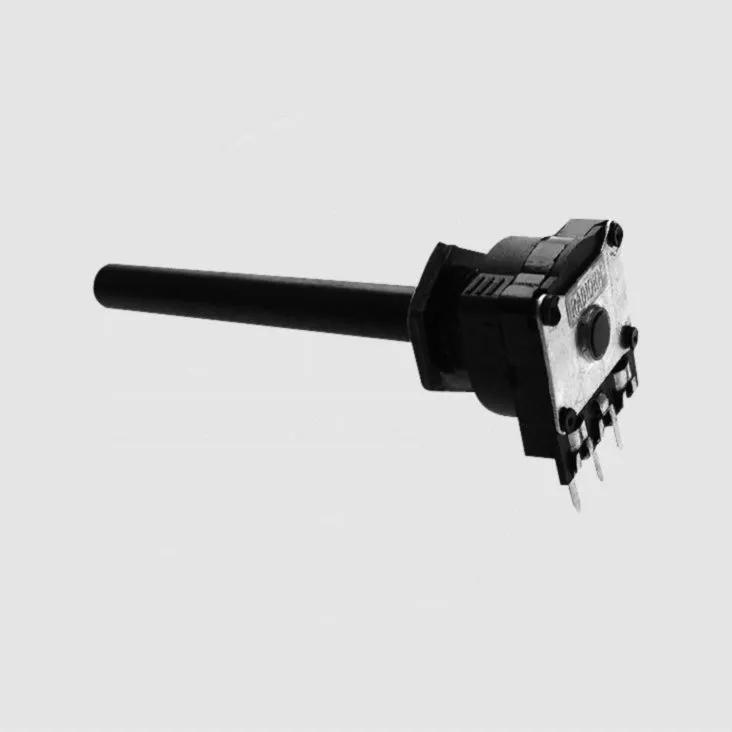

Potentiometer 16/6 Mono Log 1M

Varenummer:
84-991
Varekode:
P162MGM001
Vægt:
0 g
Lagerstatus:
Lager: 5 stk.

kr 20,00 20.0 DKK kr 20,00 Inklusiv moms

kr 20,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 20,00
v/25
Kr. 17,50
v/100
Kr. 15,00

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/27970/image_1920?unique=5f2fec2 https://elektroniklavpris.odoo.com/web/image/product.template/27970/image_1920?unique=5f2fec2



Electrical Specifications

Rated Power (TU = 40°C):
 0,12W
Operating Voltage, Max.:
 350V DC
Insulation Voltage:
 500V AC
Insulation Resistance:
 ³5GW
Resistance Tolerance
100W...1MW:
 ±20%
>1MW:
 ±30%
Mechanical Specifications

Rotation Angle (Mechanical):
 300° ±5°
Operating Torque:
 0,4...1,5Ncm
Permissible Torque at End Stop, Max.:
 60Ncm
Weight, approx.:
 6g
Dimensions

Plastic Spindle
Diameter (D):
 6,0mm
Length (L):
 50,0mm
Bush (C):
 8,0mm
Spindle (A):
 M10x0,75
Solder Tag Terminations:
 5/5(10)mm

Manufacturer

http://www.radiohm.com
