SMD Cermet Trimmer 5K
Varenummer:
84-863
Varekode:
TS53YLK005
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C2413
VISHAY SMD Cermet Trimmers
Series: TS53YL
Power: 0,2W
Housing: 5x5mm
VISHAY SMD Cermet Trimmers
Series: TS53YL
Power: 0,2W
Housing: 5x5mm
| Features |
| • Excellent stability • Wide resistance range • Low temperature coefficiency • Small size for optimum packing density • Suitable for manual and automatic operations |
 |
| General Specifications |
| |
| Resistance Tolerance: | ±20% |
| Resistive Element: | Cermet |
| Temperature Range: | -55...+125°C |
| Climatic Category: | 55/125/56 |
| Sealing: | IP67 |
| |
| Mechanical Specifications |
| |
| Rotation (Mechanical): | 270° ±10° |
| Operating Torque (Max.): | 1,5Ncm |
| End Stop Torque: | 3,5Ncm |
| Weight (Max.): | 0,15g |
| |
| Electrical Specifications |
| |
| Power Rating Chart: | Linear |
| Rotation (Electrical): | 220° ±15° |
| Power Rating (TU = 70°C): | 0,25W |
| Limiting Element Voltage: | 200V |
| Dielectric Strength (RMS): | 1000V |
| Insulation Resistance (500V DC): | 106MW |
| End Resistance (Typ.): | 0,1% or 3W |
| Temperature Coefficient (Typ., RN³1MW): | 100ppm/°C |
| |
| Part Nr. | R | PMax. | UMax. | IMax. |
| W | [W] | [V] | [mA] | |
| TS53YLK001 | 1K | 0,25 | 15,8 | 16,0 |
| TS53YLK002 | 2K | 0,25 | 22,4 | 11,0 |
| TS53YLK005 | 5K | 0,25 | 35,4 | 7,0 |
| TS53YLK010 | 10K | 0,25 | 50,0 | 5,0 |
| TS53YLK020 | 20K | 0,25 | 70,7 | 3,5 |
| TS53YLK050 | 50K | 0,25 | 112 | 2,2 |
| TS53YLK100 | 100K | 0,25 | 158 | 1,6 |
| TS53YLK200 | 200K | 0,20 | 200 | 1,0 |
| TS53YLK500 | 500K | 0,08 | 200 | 0,4 |
| TS53YLM001 | 1M | 0,04 | 200 | 0,2 |
| R = Resistance, P = Performance, Max. (+85°C), UMax = Operating Voltage, Max., IMax = Transmission Current, Max. | ||||
| ||||
| Labelling |
| Manufacturers trademark, the ohmic value is indicated by a 3 figure code, the first two are significant figures, the third one is the multiplier e.g. 100 = 10W, 101 = 100W, 102 = 1000W, 503 = 50000W, manufacturing date |
|
| Additional Products |
| Other articles of 1000 pieces available on request, delivery time 12...14 weeks |
|
| Terms of Delivery |

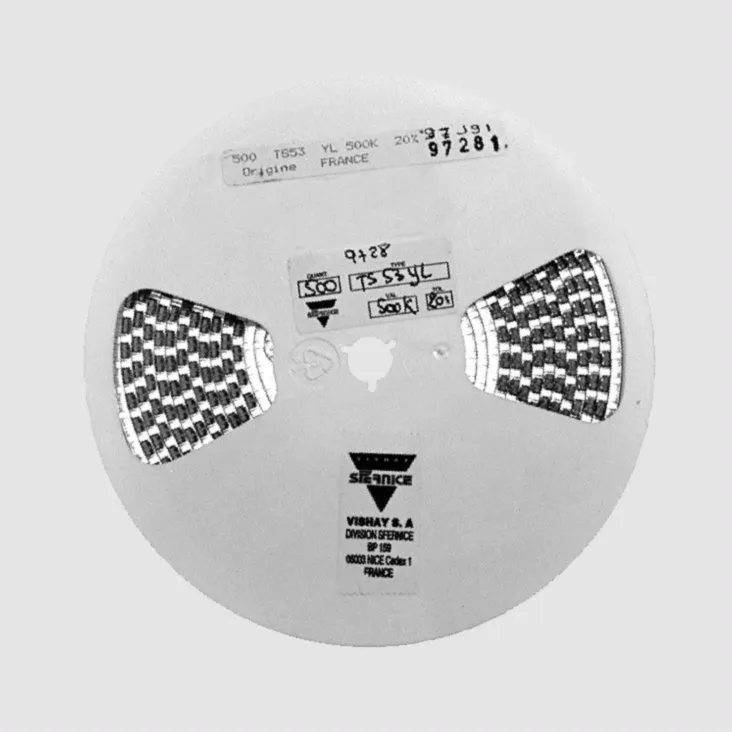

| Minimum order quantity: 1 PKU = 25 pieces Form of delivery: Orders of less than 500 pieces: 25 pieces on tape segment without leader tape and reel, orders of 500 pieces: 500 pieces on Super-8-Reel |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
