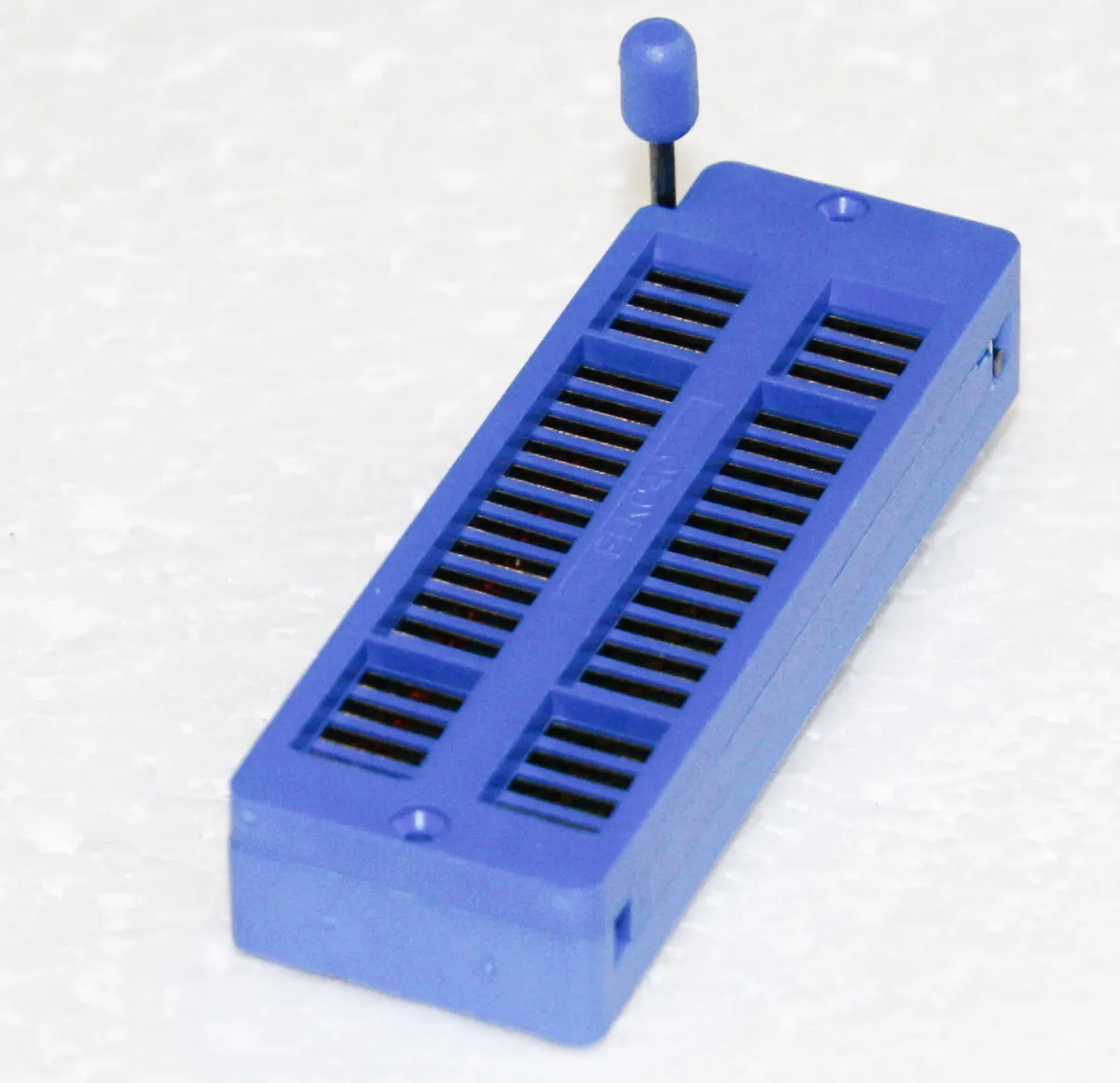

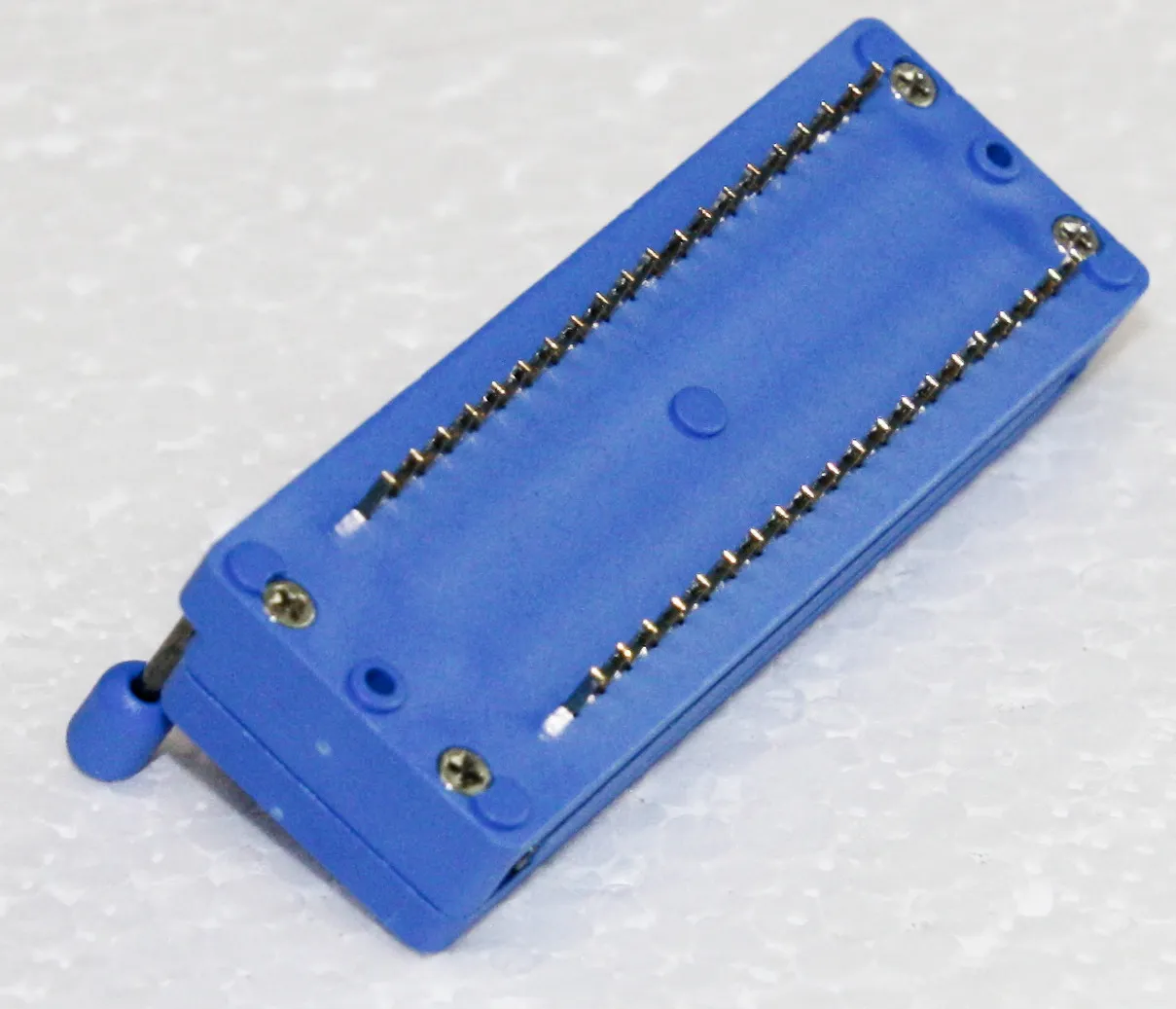

Test Socket 40-Pole 7,62/15,24mm
Varenummer:
83-183
Varekode:
DIL40TEST
Vægt:
20 g
Lagerstatus:
Lager: 3 stk.
Features
| • Standard IC pitch 2,54mm, easy to mount in a PC board • All plastics are UL94V-0 grade fire retardant • Gold-plated contacts to ensure low contact resistance |
 |
| Electrical Specifications |
|
|
| Contact Rating, Max.: | 50V DC/100mA |
| Contact Resistance, Max. | |
| New: | 10mOhm |
| After Service Life Test: | 20mOhm |
| Insulation Resistance, Min.: | 100MOhm |
| Test Voltage, Min.: | 500V DC/1 Min. |
| Capacitance between adjacent contacts, Max.: | 5pF |
|
|
| Technical Specifications |
|
|
| Operating Temperature: | -25...+70°C |
| Storage Temperature: | -40...+85°C |
| Service Life | |
| Cycles Without Load: | 50000 |
| Cycles With Load: | 25000 |
| Humidity: | 95% RH/40°C, 96h |
| Vibration: | MIL-STD-202F, Method 201A |
| Solderability: | 230±5 °C after Flux for 5±0,5s |
| 95% Coverage | |
| Soldering Heat: | 260±5°C for 5±1s |
|
|
| Dimensions |
| Pole | A | B | C | Z | P |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| 24 | 45,3 | 40,9 | 22,9 | 11 | 15,24 |
| 28 | 50,4 | 46,0 | 22,9 | 13 | 15,24 |
| 32 | 55,5 | 51,1 | 22,9 | 15 | 15,24 |
| 40 | 65,6 | 61,2 | 22,9 | 19 | 7,62...15,24 |
|
|||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
