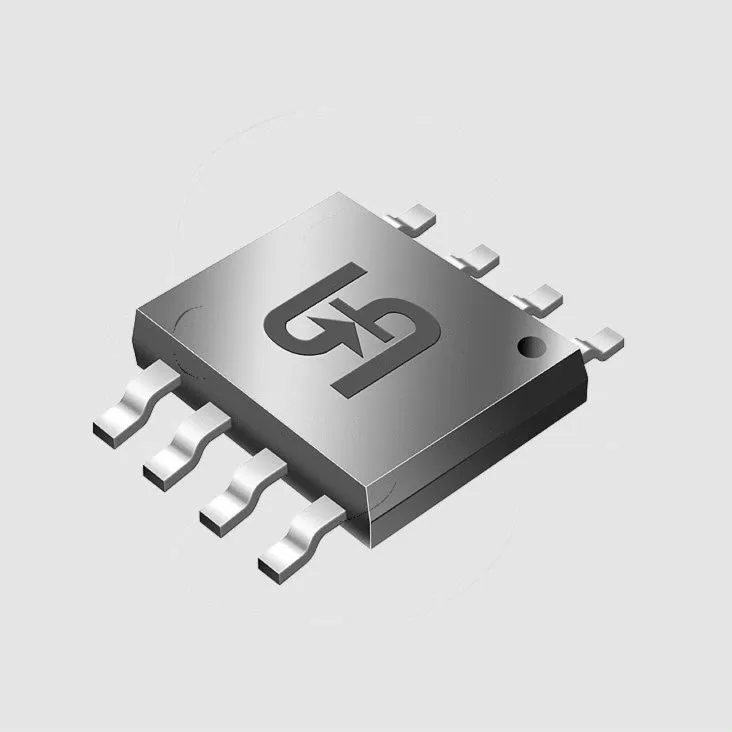

U-Reg +18V 0,1A SO8
Varenummer:
82-001
Varekode:
TS78L18CS
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
B4276
TAIWAN SEMICONDUCTOR (TSC) SMD Fixed Output Voltage Regulators 0,1A
Packing Style: Taped
Series: TS78L_CS, TS79L_CS
Case: SO
TAIWAN SEMICONDUCTOR (TSC) SMD Fixed Output Voltage Regulators 0,1A
Packing Style: Taped
Series: TS78L_CS, TS79L_CS
Case: SO
| Technical Specifications |
| Part Nr. | Uin | Iout | Uout | Regline | Regload |
| [V] | [A] | [V] | [mV] | [mV] | |
| TS78L03CS | 30 | 0,1 | 3,173...3,432 | 50 | 15 |
| TS78L05CS | 35 | 0,1 | 4,80...5,20 | 50 | 20 |
| TS78L08CS | 35 | 0,1 | 7,69...8,32 | 80 | 25 |
| TS78L09CS | 35 | 0,1 | 8,65...9,36 | 90 | 30 |
| TS78L12CS | 35 | 0,1 | 11,53...12,48 | 120 | 40 |
| TS78L15CS | 35 | 0,1 | 14,42...15,60 | 150 | 50 |
| TS78L18CS | 35 | 0,1 | 17,30...18,72 | 180 | 60 |
| TS79L09CS | -35 | 0,1 | -8,60...-9,40 | - | - |
| Uin = Max. Input Voltage, Iout = Max. Output Current, Uout = Output Voltage, Regline = Typ. Line Regulation, Regload = Typ. Load Regulation | |||||
 | |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 2500 pieces: 100 pieces on tape segment without leader tape and reel; orders of 2500 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
82001
Intern reference:
82001
Varekode:
TS78L18CS
