U-Reg +9V 1A TO220
Varenummer:
81-936
Varekode:
TS7809CZ
Vægt:
0 g
Lagerstatus:
Lager: 10 stk.
Gruppe: B4273
TAIWAN SEMICONDUCTOR (TSC) Fixed Output Voltage Regulators 1A
Series: TS78_CZ, TS78_CV

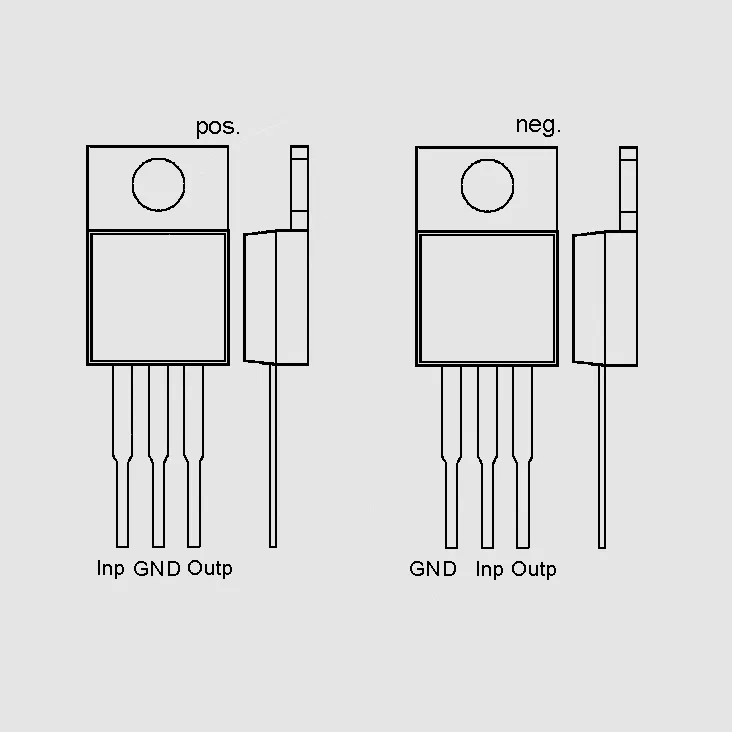

Case: TO220
Technical Specifications
| Part Nr. | Uin | Iout | Uout | Regline | Regload |
| [V] | [A] | [V] | [mV] | [mV] | |
| TS7805CZ | 35 | 1,0 | 4,80...5,20 | 3 | 15 |
| TS7808CZ | 35 | 1,0 | 7,69...8,32 | 6 | 12 |
| TS7809CZ | 35 | 1,0 | 8,65...9,36 | 6 | 12 |
| TS7812CZ | 35 | 1,0 | 11,53...12,48 | 10 | 12 |
| TS7824CZ | 40 | 1,0 | 23,07...24,96 | 18 | 12 |
| Uin = Max. Input Voltage, Iout = Max. Output Current, Uout = Output Voltage, Regline = Typ. Line Regulation, Regload = Typ. Load Regulation | |||||
 |
|||||
Stregkode:
81936
Intern reference:
81936
Varekode:
TS7809CZ
