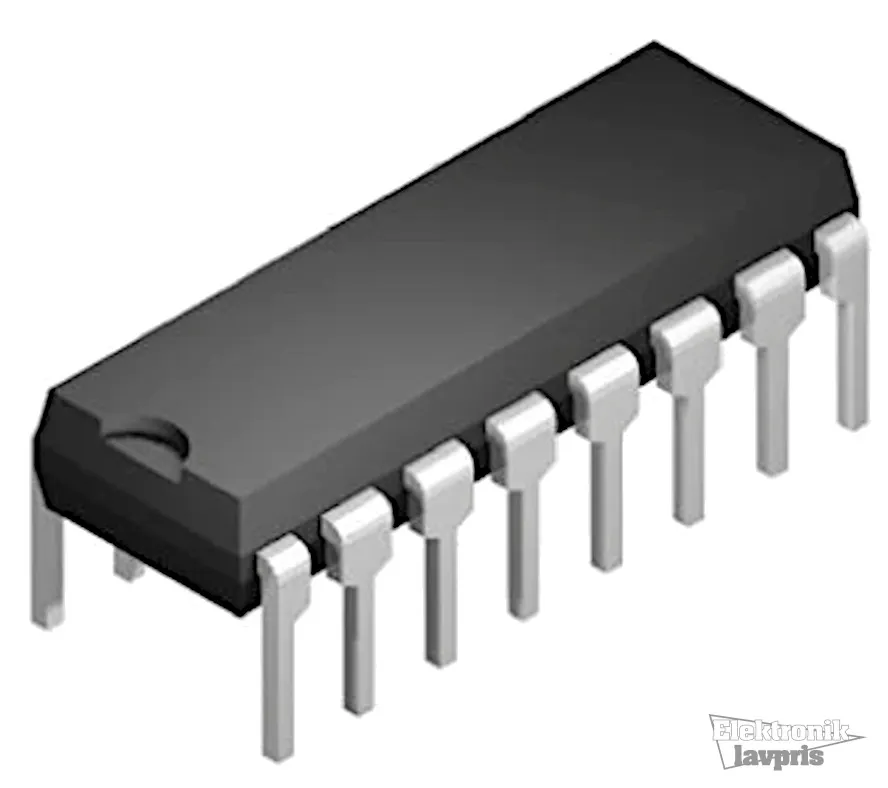

8-Bit D/A Converter DIP-16

Digital til analog konverter, 8 bit

• IC, 8BIT DAC, DIP16, 808
• Resolution (Bits): 8bit
• Data Interface: CMOS, Parallel, TTL
• Supply Current: 4.3mA
• Digital IC Case Style: DIP
• No. of Pins: 16
• Operating Temperature Range: 0°C to +75°C
• A/D / D/A Features: Multiplying
• Base Number: 0808
• IC Case Style: DIP
• IC Generic Number: 0808
• Linearity Error: 0.5%
• Linearity Error ADC / DAC +: 0.5LSB
• Linearity Error ADC / DAC -: 0.5LSB
• Logic Function Number: 808
• No. of Bits: 8
• No. of Channels: 1
• No. of DACs: 1
• Operating Temperature Max: 75°C
• Operating Temperature Min: 0°C
• Output Type: Current
• Package / Case: DIP
• Power Dissipation Ptot Max: 305mW
• Settling Time: 0.15µs
• Supply Voltage Max: 18V
• Supply Voltage Min: 4.5V
• Supply Voltage Range - Analogue: 4.5V to 5.5V, -4.5V to -16.5V
• Termination Type: Through Hole
