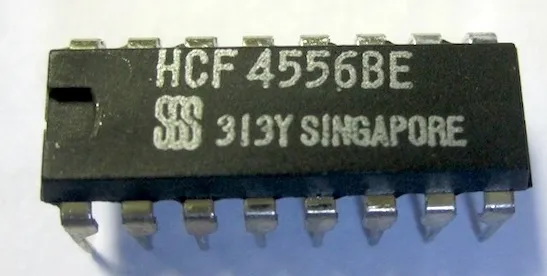

Dual Binary to 1 of 4 Decoder/Demultiplexers DIP-16
Varenummer:
80-013
Varekode:
HCF4556BE
Vægt:
0 g
Lagerstatus:
Lager: 90 stk.
- CD4556/HCF4556BE/HEF4556BP
- IC, LOGIC, 4000, MULTIPLEXER
- Logic Type: Binary to 1-of-4 Decoder / Demultiplexer
- No. of Outputs: 4
- Supply Voltage Range: 3V to 18V
- Logic Case Style: DIP
- No. of Pins: 16
- Operating Temperature Range: -55°C to +125°C
- SVHC: No SVHC (18-Jun-2012)
- Applications: Decoding, Code Conversion, Demultiplexing, Memory Chip-Enable Selection
- IC Applications: Code Conversion, Decoding, Demultiplexing, Memory Chip-Enable Selection
- Logic IC Base Number: 4556
- Logic IC Family: CD4000
- Logic IC Function: Dual Binary to 1-of-4 Decoder/Demultiplexer with Output Low on Select
- Output Current Max: 6.8mA
- Package / Case: DIP
- Supply Voltage Max: 18V
- Supply Voltage Min: 3V
- Termination Type: Through Hole
Stregkode:
80013
Intern reference:
80013
Varekode:
HCF4556BE
