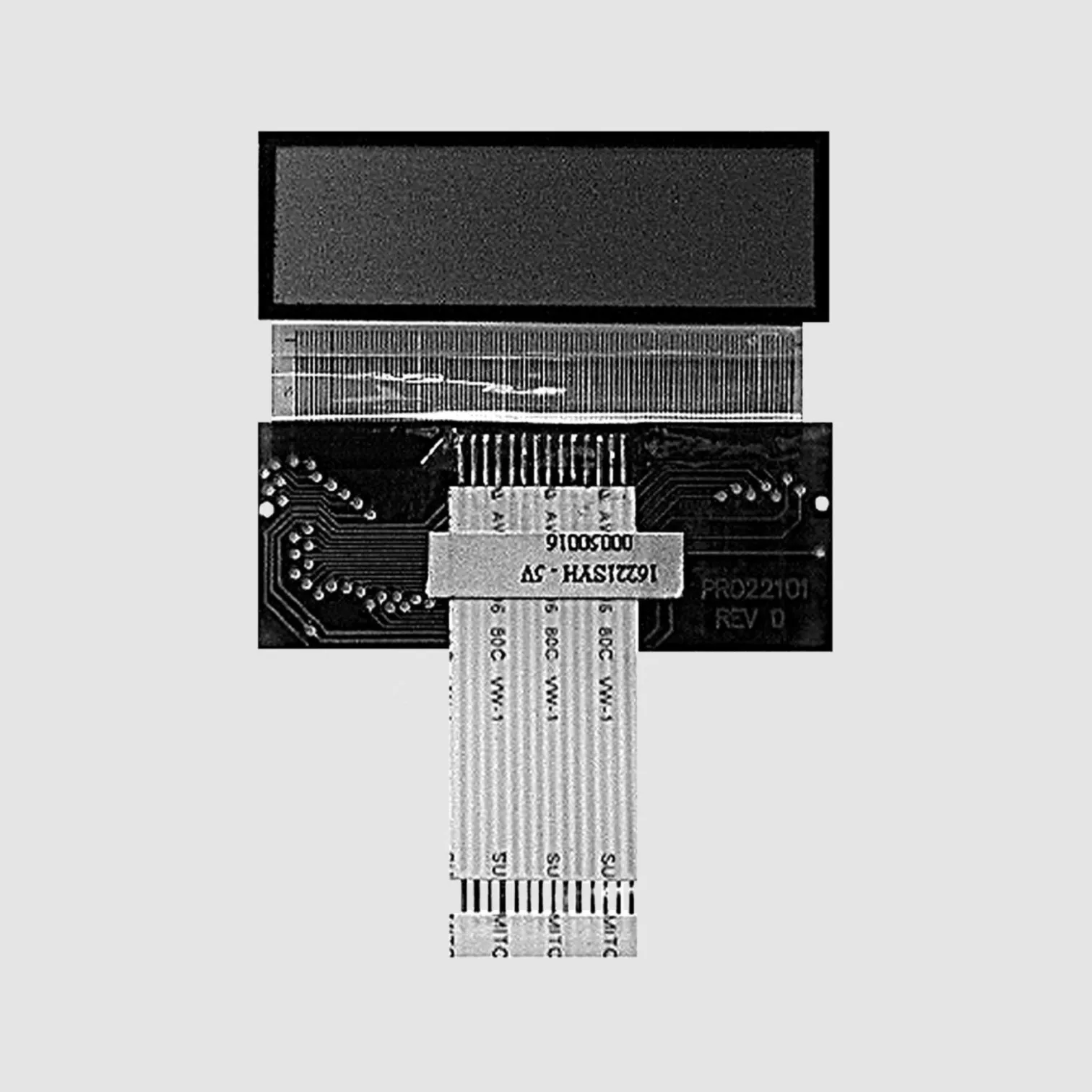

16x2 STN Yellow Reflective -20/+70°C
Varenummer:
79-857
Varekode:
DEM16224SYH
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
W4724
DISPLAY ELEKTRONIK LCD-Dot-Matrix-Flex-Modules
Reflective/With Backlight
Background: Grey or Yellow/Green
Characters: Black
Series: DEM_
DISPLAY ELEKTRONIK LCD-Dot-Matrix-Flex-Modules
Reflective/With Backlight
Background: Grey or Yellow/Green
Characters: Black
Series: DEM_
| Technical Specifications |
| • High contrast LCD-STN display • Interface for 4- or 8-Bit data bus • Supply voltage, typ. +5,0V • Operating temperature range -20...+70°C |
 |
| DEM_ | Type | Chr | V-Area | LxWxD |
| [mm] | [mm] | |||
| 16210SGH | STN | 16x2 | 64,5x15,0 | 70,8x30,5x2,7 |
| 16218SGH | STN | 16x2 | 50,0x16,0 | 55x24,5x2,2 |
| 16221SYH | STN | 16x2 | 43,0x12,0 | 47x18,5x5,2 |
| 16223SYH-PY | STN | 16x2 | 36,0x10,0 | 53x20x8,0 |
| 16224SYH | STN | 16x2 | 61,0x15,9 | 66,6x23,3x4,2 |
| STN = Super Twisted Nematic, Chr = Characters x Lines, V-Area = Viewing Area | ||||
| ||||
| DEM_ | Chr-Size | Backl | B-Colour | Tamb |
| [mm] | [°C] | |||
| 16210SGH | 2,80x4,35 | - | - | -20...+70 |
| 16218SGH | 2,45x5,55 | - | - | -20...+70 |
| 16221SYH | 1,95x3,80 | - | - | -20...+70 |
| 16223SYH-PY | 1,85x3,15 | LED | Yellow | -20...+70 |
| 16224SYH | 2,95x5,55 | - | - | -20...+70 |
| Chr-Size = Character Size, Backl = Backlight, B-Colour = Backlight Colour, Tamb = Ambient Operating Temperature | ||||
| ||||
| Additional Products |
| We will also deliver on request all modules on offer of 500 pieces upwards in other colours (positive or negative), forward orders possible, delivery time approx. 12 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.display-elektronik.de |
|
