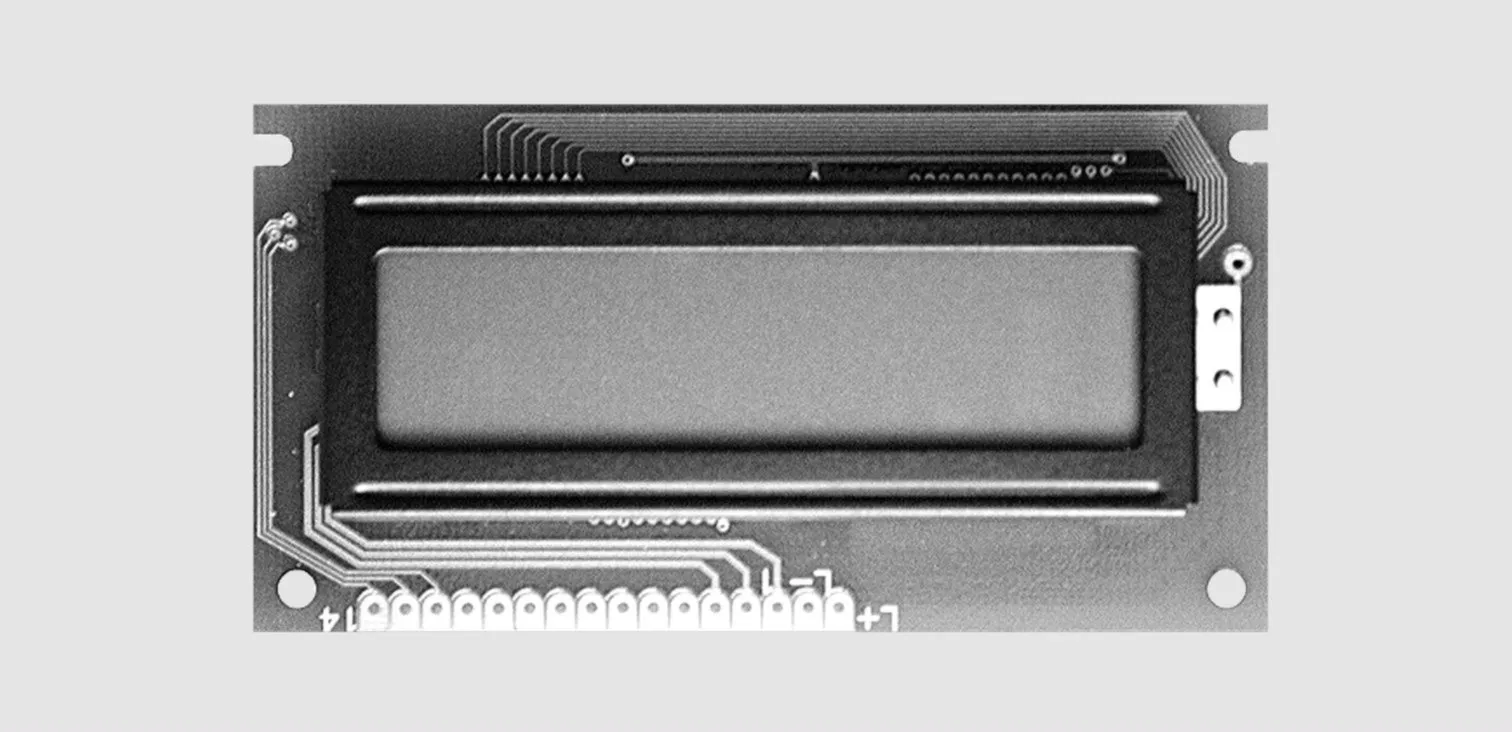

16x2 STN Grey Reflective -20/+70°C

Varenummer:

79-828

Varekode:

DEM16216SGH

Vægt:

30 g

Lagerstatus:

Ikke på lager

v/10

Kr. 70,31

v/25

Kr. 59,76

v/100

Kr. 49,23

Denne kombination eksistere ikke.

Køb

Gruppe: W4721
DISPLAY ELEKTRONIK LCD-Dot-Matrix-Modules
Reflective
Background: Grey or Yellow/Green
Characters: Black
Series: DEM_

Technical Specifications

• High contrast LCD-TN/STN display
• Interface for 4- or 8-Bit data bus
• Supply voltage, typ. +5,0V
• Operating temperature range -20...+70°C


DEM_	Type	Chr	V-Area	LxWxD
			[mm]	[mm]
08171SYH	STN	8x1	44,0x13,0	60x33x8,7
16101TGH	TN	16x1	63,5x13,8	80x36x9,0
16101SYH	STN	16x1	63,5x13,8	80x36x9,0
16102TGH	TN	16x1	61,0x15,8	80x36x8,3
16102SYH	STN	16x1	61,0x15,8	80x36x8,3
16213SYH	STN	16x2	63,5x13,8	80x36x9,0
16216SGH	STN	16x2	61,0x15,8	80x36x9,5
16217SYH	STN	16x2	61,0x15,8	84x44x9,5
16222SYH	STN	16x2	61,0x15,8	84x44x9,5
20485SYH	STN	20x4	76,3x25,0	98x60x9,0
TN = Twisted Nematic, STN = Super Twisted Nematic, Chr = Characters x Lines, V-Area = Viewing Area


DEM_	Chr-Size	Backl	B-Colour	T_amb
	[mm]			[°C]
08171SYH	4,41x7,88	-	-	-20...+70
16101TGH	3,20x5,95	-	-	-20...+70
16101SYH	3,20x5,95	-	-	-20...+70
16102TGH	3,15x7,90	-	-	-20...+70
16102SYH	3,15x7,90	-	-	-20...+70
16213SYH	2,95x4,35	-	-	-20...+70
16216SGH	2,95x5,55	-	-	-20...+70
16217SYH	2,95x5,55	-	-	-20...+70
16222SYH	2,95x5,55	-	-	-20...+70
20485SYH	2,95x4,75	-	-	-20...+70
Chr-Size = Character Size, Backl = Backlight, B-Colour = Backlight Colour, T_amb = Ambient Operating Temperature

Terms of Delivery

Minimum order quantity: please see price list column "MOQ".
Articles in bold print in stock, other articles available on request.

Manufacturer

http://www.display-elektronik.de
