IR-LED Black 40° 5mm 20mA
Varenummer:
79-623
Varekode:
LTE5208AC
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
X2345
LITEON Infrared LEDs
Series: HSDL_, IRS_, LTE_

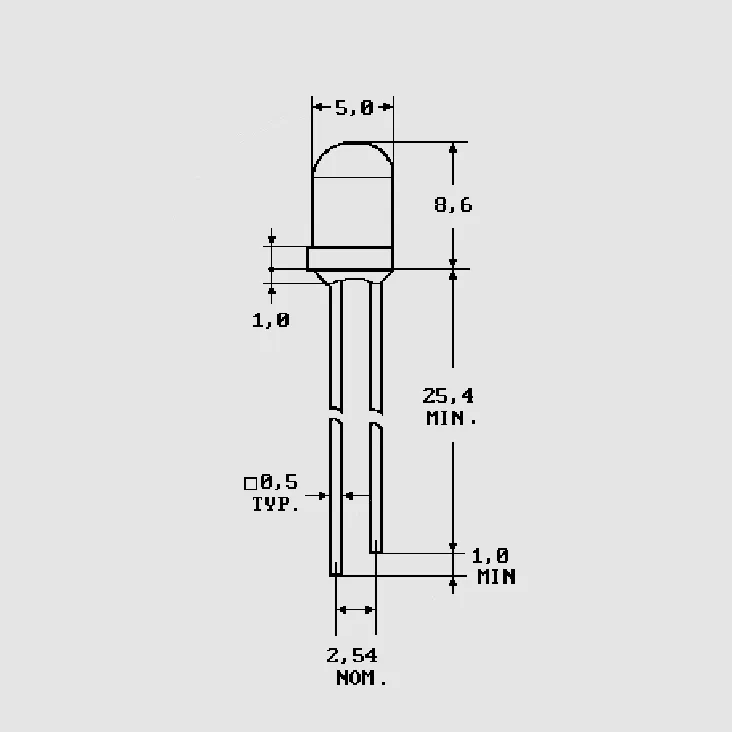

Case: 5mm, Straight Leads
LITEON Infrared LEDs
Series: HSDL_, IRS_, LTE_
Case: 5mm, Straight Leads
| Technical Specifications |
| Part Nr. | Colour | WL | VA | IE | @IF | UF |
| [nm] | [°] | [mW/sr] | [mA] | [V] | ||
| HSDL4220 | Infrared | 875 | 30 | 22 | 50 | 1,5 |
| HSDL4230 | Infrared | 875 | 17 | 39 | 50 | 1,5 |
| HSDL4420 | Infrared | 875 | 24 | 9 | 50 | 1,5 |
| IRS5 | Infrared | 940 | 20 | 3,31 | 20 | 1,2 |
| LTE2871 | Infrared | 940 | 16 | 5,25 | 20 | 1,2 |
| LTE5208AC | Infrared | 940 | 40 | 3,31 | 20 | 1,2 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, IE = Min. Radiant Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://optoelectronics.liteon.com |
|
Stregkode:
79623
Intern reference:
79623
Varekode:
LTE5208AC
