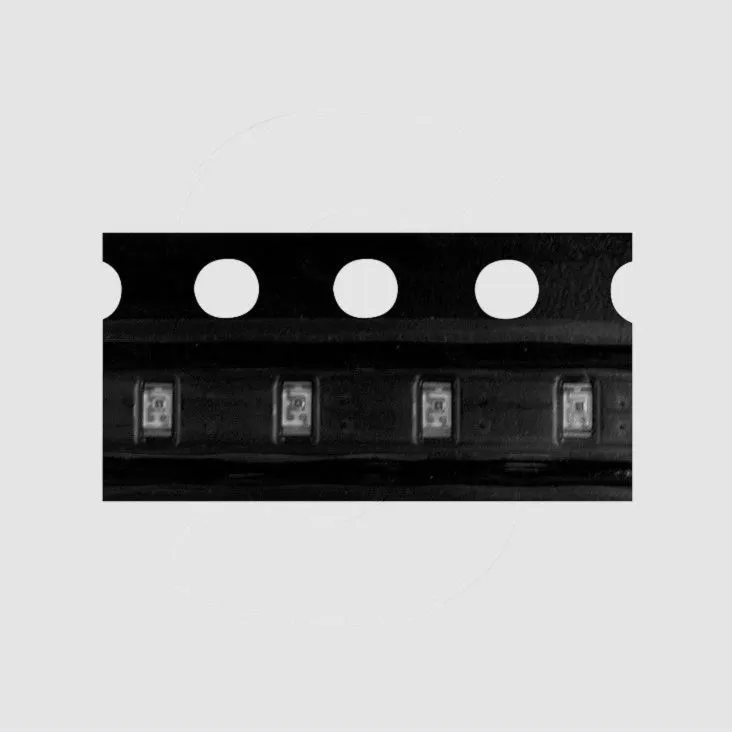

SMD-LED Yellow 75mcd 120° 0603 Flat
Varenummer:
79-450
Varekode:
EL19-217/Y5C-AP
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
W2322
EVERLIGHT SMD Light-Emitting Diodes
Water-clear and White Diffuse
Series: EL19-217_
Case: 0603 flat 0,4mm
EVERLIGHT SMD Light-Emitting Diodes
Water-clear and White Diffuse
Series: EL19-217_
Case: 0603 flat 0,4mm
| Technical Specifications |
| EL19- | Colour | WL | VA | LI | @IF | UF |
| [nm] | [°] | [mcd] | [mA] | [V] | ||
| 217/Y5C-AP | Yellow | 591 | 120 | 75 | 20 | 2,0 |
| 217/W1D-AN | White | - | 130 | 40 | 5 | 3,15 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 100 resp. 25 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
 |
| http://www.everlight.com |
|
Stregkode:
79450
Intern reference:
79450
Varekode:
EL19-217/Y5C-AP
