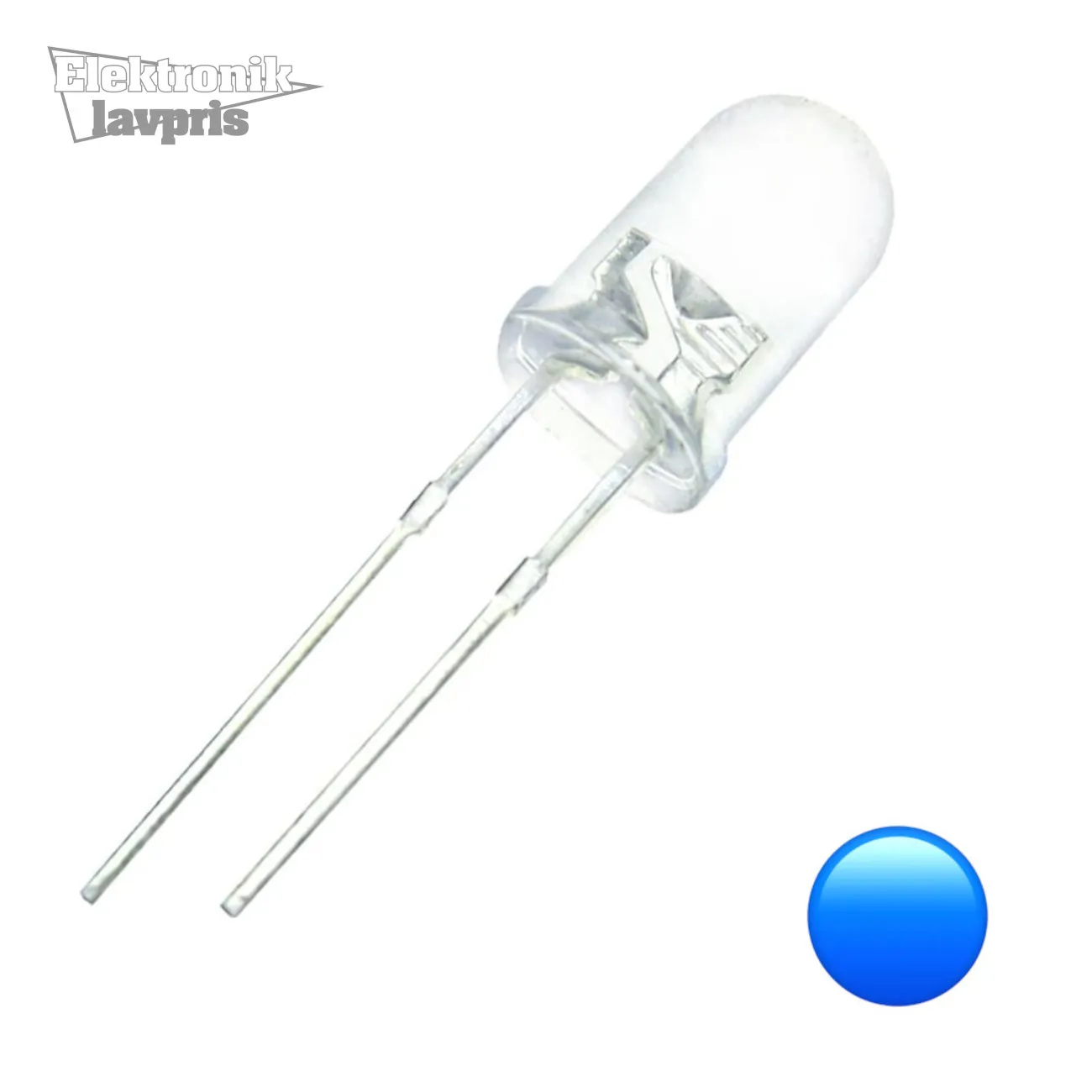

LED Water-clear Blue 1800mcd 15° 3mm
Varenummer:
79-261
Varekode:
ML37B23H-BEE
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
W1264
MIC Light-Emitting Diodes
Diffuse/Water-clear
Blue
Ultrabright
Series: ML37B_H_
Case: 3mm
MIC Light-Emitting Diodes
Diffuse/Water-clear
Blue
Ultrabright
Series: ML37B_H_
Case: 3mm
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF |
| [nm] | [°] | [mcd] | [mA] | [V] | ||
| ML37B23H-BEC | Blue | 470 | 15 | 800 | 20 | 3,5 |
| ML37B23H-BED | Blue | 470 | 15 | 1200 | 20 | 3,5 |
| ML37B23H-BEE | Blue | 470 | 15 | 1800 | 20 | 3,5 |
| ML37B21H-BED | Blue | 470 | 15 | 800 | 20 | 3,5 |
| ML37B21H-BEF | Blue | 470 | 15 | 1800 | 20 | 3,5 |
| ML37B25H-GED | Blue | 470 | 40 | 350 | 20 | 3,5 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
 | ||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| MIC http://www.cnmic.com |
|
