Triac 12A 600V 50mA TO220AB
Varenummer:
79-023
Varekode:
TIC236M
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V9531
BOURNS Triacs up to 16A
Series: TIC2_

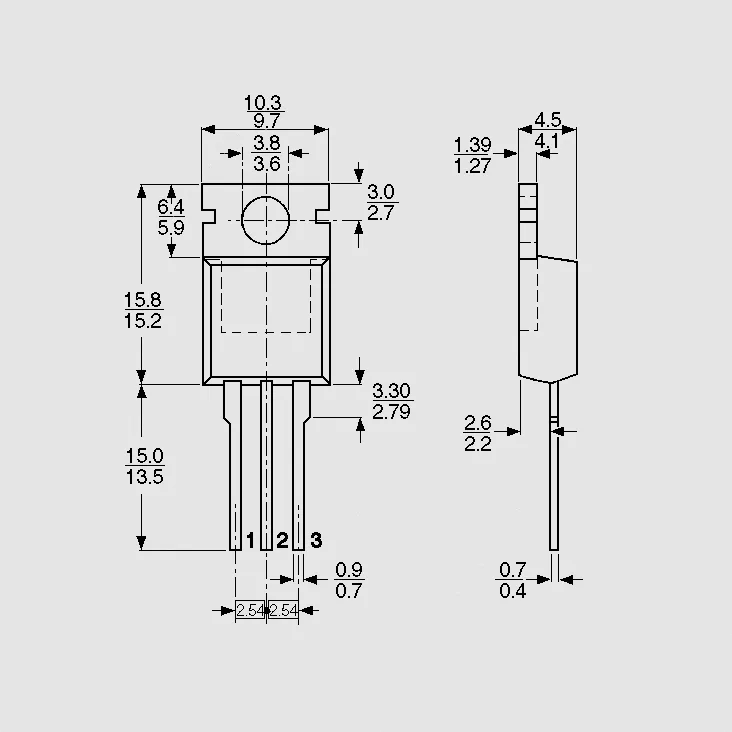

Case: TO220AB
BOURNS Triacs up to 16A
Series: TIC2_
Case: TO220AB
| Technical Specifications |
| Part Nr. | URRM | IT(RMS) | @TC | ITSM | IGT |
| [V] | [A] | [°C] | [A] | [mA] | |
| TIC206M | 600 | 4 | 85 | 25 | 5,0 |
| TIC216M | 600 | 6 | 70 | 60 | 5,0 |
| TIC225M | 600 | 8 | 70 | 70 | 20 |
| TIC226M | 600 | 8 | 85 | 70 | 50 |
| TIC226N | 800 | 8 | 85 | 70 | 50 |
| TIC236M | 600 | 12 | 70 | 100 | 50 |
| TIC236N | 800 | 12 | 70 | 100 | 50 |
| TIC246M | 600 | 16 | 70 | 125 | 50 |
| TIC246N | 800 | 16 | 70 | 125 | 50 |
| URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current (I - III) | |||||
 | |||||
| Note |
| You will find suitable isolation assemblies and heatsinks in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants can be found in the red "Components & Devices" catalogue starting at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". Articles in bold print in stock, other articles available on request. |
|
| Manufacturer |
| Bourns http://www.bourns.com |
|
