Thyristor 12A 800V TO220AB
Varenummer:
78-999
Varekode:
BT151-800R
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V8245
NXP Thyristors up to 25A
Series: BT14_, BT15_

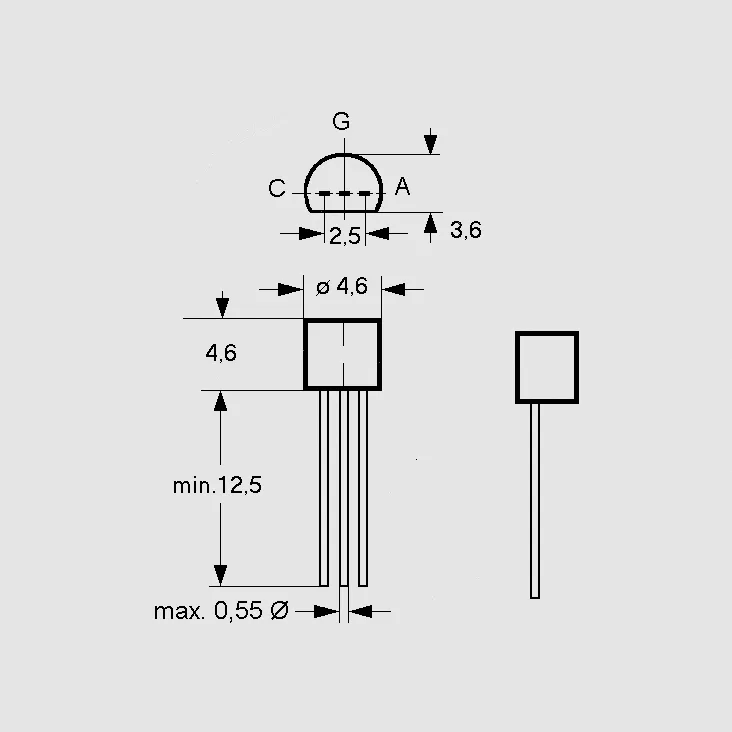

Case: SOT82, TO92, TO220AB
NXP Thyristors up to 25A
Series: BT14_, BT15_
Case: SOT82, TO92, TO220AB
| Technical Specifications |
| Part Nr. | URRM | IT(RMS) | @TC | ITSM | IGT |
| [V] | [A] | [°C] | [A] | [mA] | |
| BT145-800R | 800 | 25 | - | 300 | 35 |
| BT148-400R | 400 | 4 | - | 35 | 0,2 |
| BT148-600R | 600 | 4 | - | 35 | 0,2 |
| BT149D-GURT | 400 | 0,8 | - | 8 | 0,2 |
| BT151-500R | 500 | 12 | - | 120 | 15 |
| BT151-650R | 650 | 12 | - | 120 | 15 |
| BT151-800R | 800 | 12 | - | 120 | 15 |
| BT152-400R | 400 | 20 | - | 200 | 32 |
| BT152-600R | 600 | 20 | - | 200 | 32 |
| BT152-800R | 800 | 20 | - | 200 | 32 |
| URRM = Max. Peak Recurrent Reverse Voltage, IT(RMS) = Max. RMS Forward Current, TC = Case Temperature, ITSM = Peak Forward Surge Current, IGT = Max. Gate Trigger Current | |||||
 | |||||
| Note |
| You will find suitable isolation assemblies and heatsinks in the blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants can be found in the red "Components & Devices" catalogue starting at product group R3211. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| NXP http://www.nxp.com |
|
Stregkode:
484-2864
Intern reference:
78999
Varekode:
BT151-800R
