SMD TVS Diode Bip 600W 28,2V SMB
Varenummer:
78-762
Varekode:
P6SMB33CA
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V5475
SMD Transient Voltage Suppressor Diodes 600W
Series: P6SMB_

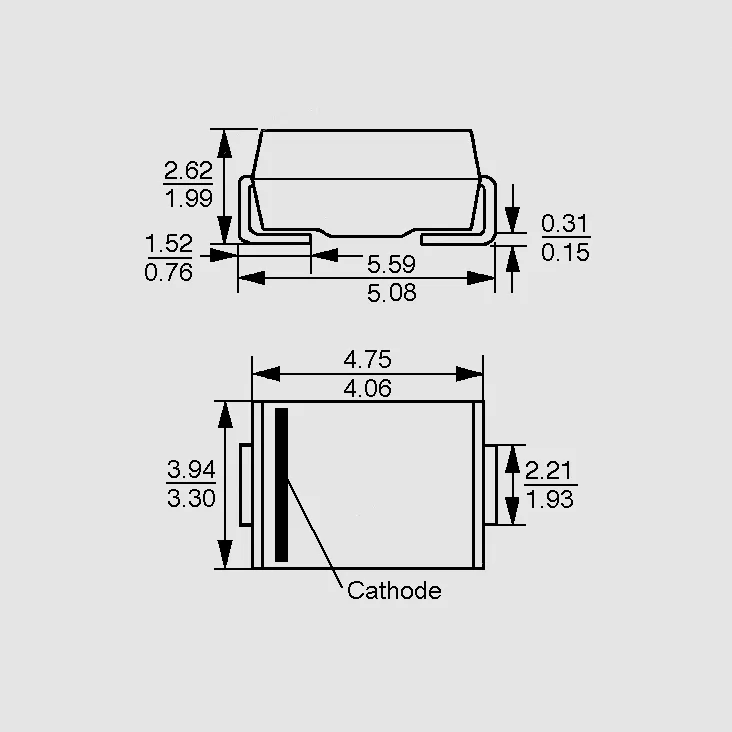

Case: DO214AA/SMB
SMD Transient Voltage Suppressor Diodes 600W
Series: P6SMB_
Case: DO214AA/SMB
| Technical Specifications |
| • The plastic conforms to UL94V-0 |
 |
| Part Nr. | IR | @URM | UBR | @IR | UCL | @Ipp |
| [µA] | [V] | [V] | [mA] | [V] | [A] | |
| P6SMB6.8A | 1000 | 5,8 | 6,45 | 10 | 10,5 | 60 |
| P6SMB12A | 5 | 10,2 | 11,4 | 1 | 16,7 | 37 |
| P6SMB15A | 5 | 12,8 | 14,3 | 1 | 21,2 | 29 |
| P6SMB18A | 5 | 15,3 | 17,1 | 1 | 25,2 | 25 |
| P6SMB27A | 5 | 23,1 | 25,7 | 1 | 37,5 | 16,8 |
| P6SMB30A | 5 | 25,6 | 28,5 | 1 | 41,4 | 15 |
| P6SMB33A | 5 | 28,2 | 31,4 | 1 | 45,7 | 13,8 |
| P6SMB36A | 5 | 30,8 | 34,2 | 1 | 49,9 | 12,6 |
| P6SMB39A | 5 | 33,3 | 37,1 | 1 | 53,9 | 11,6 |
| P6SMB47A | 5 | 40,2 | 44,7 | 1 | 64,8 | 9,7 |
| P6SMB200A | 5 | 171 | 190 | 1 | 274 | 2,2 |
| P6SMB6.8CA | 1000 | 5,8 | 6,45 | 10 | 10,5 | 60 |
| P6SMB15CA | 5 | 12,8 | 14,3 | 1 | 21,2 | 29 |
| P6SMB18CA | 5 | 15,3 | 17,1 | 1 | 25,2 | 25 |
| P6SMB27A | 5 | 23,1 | 25,7 | 1 | 37,5 | 16,8 |
| P6SMB30A | 5 | 25,6 | 28,5 | 1 | 41,4 | 15 |
| P6SMB33CA | 5 | 28,2 | 31,4 | 1 | 45,7 | 13,8 |
| P6SMB36CA | 5 | 30,8 | 34,2 | 1 | 49,9 | 12,6 |
| P6SMB39CA | 5 | 33,3 | 37,1 | 1 | 53,9 | 11,6 |
| P6SMB200CA | 5 | 171 | 190 | 1 | 274 | 2,2 |
| IR = Max. Reverse Current, URM = Stand-Off Voltage, UBR = Min. Breakdown Voltage, UCL = Max. Clamping Voltage, Ipp = Reverse Peak Pulse Current | ||||||
| ||||||
| Terms of Delivery |

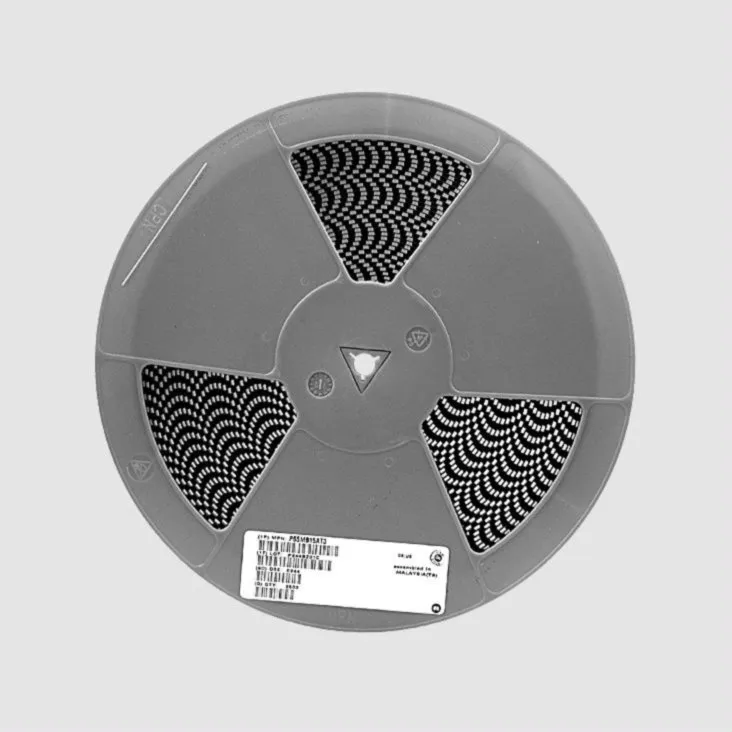

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 3000 pieces: 25 pieces on tape segment without leader tape and reel; orders of 3000 pieces: delivery on reel if requested. |
|
| Manufacturer |
| Various If you have preference for a particular manufacturer, please inquire before placing your order. |
|
