SMD TVS Diode Bip 400W 171V SMA
Varenummer:
78-716
Varekode:
P4SMA200CA
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
V5275
TAIWAN SEMICONDUCTOR (TSC) SMD Transient Voltage Suppressor Diodes 400W
Glass Passivated
Series: P4SMA_

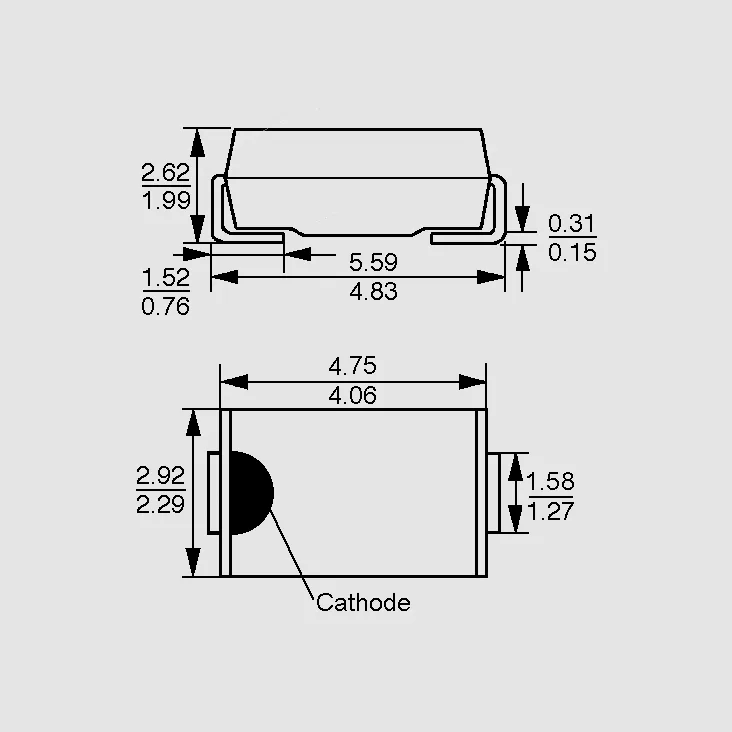

Case: DO214AC/SMA
TAIWAN SEMICONDUCTOR (TSC) SMD Transient Voltage Suppressor Diodes 400W
Glass Passivated
Series: P4SMA_
Case: DO214AC/SMA
| Technical Specifications |
| • The plastic conforms to UL94V-0 • Max. solderability 250°C/10s |
 |
| Part Nr. | IR | @URM | UBR | @IR | UCL | @Ipp |
| [µA] | [V] | [V] | [mA] | [V] | [A] | |
| P4SMA6.8A | 1000 | 5,8 | 6,46 | 10 | 10,5 | 40 |
| P4SMA15A | 5 | 12,8 | 14,3 | 1 | 21,2 | 20 |
| P4SMA18A | 5 | 15,3 | 17,1 | 1 | 25,5 | 16,5 |
| P4SMA27A | 5 | 23,1 | 25,7 | 1 | 37,5 | 11 |
| P4SMA30A | 5 | 25,6 | 28,5 | 1 | 41,4 | 10 |
| P4SMA33A | 5 | 28,2 | 31,4 | 1 | 45,7 | 9,0 |
| P4SMA36A | 5 | 30,8 | 34,2 | 1 | 49,9 | 8,4 |
| P4SMA39A | 5 | 33,3 | 37,1 | 1 | 53,9 | 7,7 |
| P4SMA6.8CA | 1000 | 5,8 | 6,46 | 10 | 10,5 | 40 |
| P4SMA15CA | 5 | 12,8 | 14,3 | 1 | 21,2 | 20 |
| P4SMA18CA | 5 | 15,3 | 17,1 | 1 | 25,5 | 16,5 |
| P4SMA33CA | 5 | 28,2 | 31,4 | 1 | 45,7 | 9,0 |
| P4SMA36CA | 5 | 30,8 | 34,2 | 1 | 49,9 | 8,4 |
| P4SMA39CA | 5 | 33,3 | 37,1 | 1 | 53,9 | 7,7 |
| P4SMA43CA | 5 | 36,8 | 40,9 | 1 | 59,3 | 7,0 |
| P4SMA200CA | 5 | 171 | 190 | 1 | 274 | 1,51 |
| IR = Max. Reverse Current, URM = Stand-Off Voltage, UBR = Min. Breakdown Voltage, UCL = Max. Clamping Voltage, Ipp = Reverse Peak Pulse Current | ||||||
| ||||||
| Terms of Delivery |

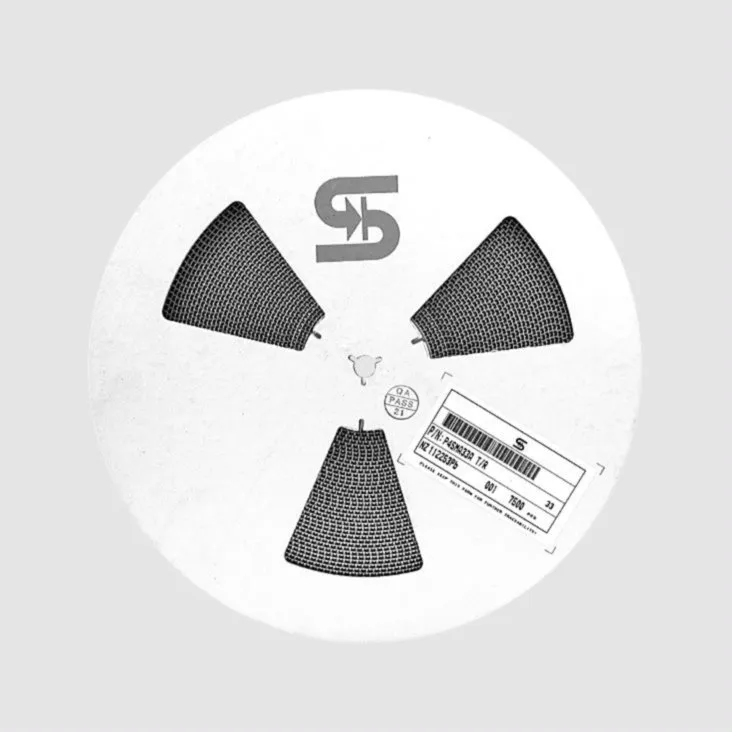

| Minimum order quantity: please see price list column "MOQ". Form of delivery: orders of less than 7500 pieces: 50 pieces on tape segment without leader tape and reel; orders of 7500 pieces: delivery on reel if requested. |
|
| Manufacturer |
 |
| http://www.taiwansemi.com |
|
Stregkode:
78716
Intern reference:
78716
Varekode:
P4SMA200CA
